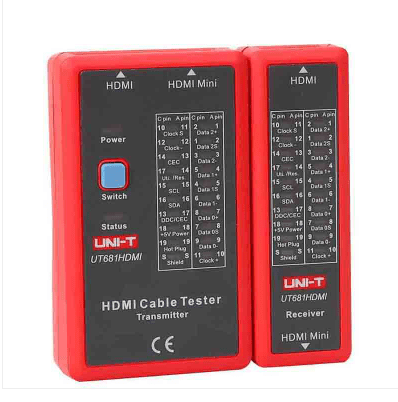

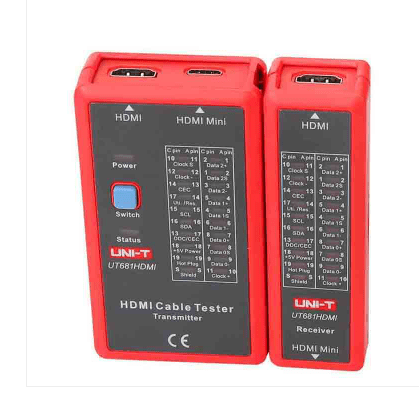

UNI-T UT681HDMI Cable Tester
In Stock
Categories: UNI-T
Description
β Key Features:
-
π‘ HDMI Cable Testing: Quickly and efficiently tests HDMI 1.4, 2.0, and 2.1 cables for continuity, signal integrity, and proper wiring.
-
π§βπ§ Signal Integrity Check: Verifies signal continuity, detecting wiring faults such as miswiring, shorts, or open circuits.
-
π Comprehensive Cable Compatibility: Compatible with both standard and high-speed HDMI cables, supporting a wide range of resolutions, including 4K, 8K, and 3D video.
-
β‘ Easy-to-Use: With its user-friendly design, the UT681 offers simple operation with minimal setup. Just connect the cable, press the button, and get instant feedback on the cableβs performance.
-
π Display Feedback: Features an LED display that shows the status of each wire in the cable, indicating any potential issues, such as open circuits, shorts, or incorrect wiring.
-
π₯οΈ Full Functionality Testing: Tests all 19 pins of HDMI cables, ensuring no connectivity issues for video, audio, and data transmission.
-
π Battery-Powered & Portable: Powered by 2 x 1.5V AA batteries, making the tester lightweight and perfect for field use or mobile applications.
-
π§° Compact & Durable: Designed to be portable yet sturdy, with a robust casing that withstands everyday use in testing environments.
π Technical Specifications:
| Feature | Specification |
|---|---|
| Cable Types Supported | HDMI 1.4, HDMI 2.0, HDMI 2.1 |
| Pin Testing | 19 pins |
| Test Functions | Continuity, Short Circuit, Open Circuit |
| LED Indicators | Visual feedback for each wire |
| Power Supply | 2 x 1.5V AA Batteries |
| Dimensions | 105mm Γ 65mm Γ 20mm |
| Weight | Approx. 150g |
π οΈ Applications:
-
HDMI Cable Installation: Perfect for professionals installing HDMI cables in homes, offices, or entertainment systems.
-
Troubleshooting HDMI Connections: Quickly identify faults and diagnose issues in HDMI cables used for TVs, projectors, and home theater systems.
-
Cable Quality Assurance: Ideal for cable manufacturers or suppliers to ensure product quality before shipping.
-
DIY Projects: Useful for hobbyists and DIY enthusiasts who need to verify the integrity of HDMI cables before use in custom setups.
-
Field Testing: Compact and portable, making it a great tool for technicians who need to test cables on-site in various environments.
π¦ Package Includes:
-
UNI-T UT681 HDMI Cable Tester
-
2 x 1.5V AA Batteries (included)
-
User Manual
