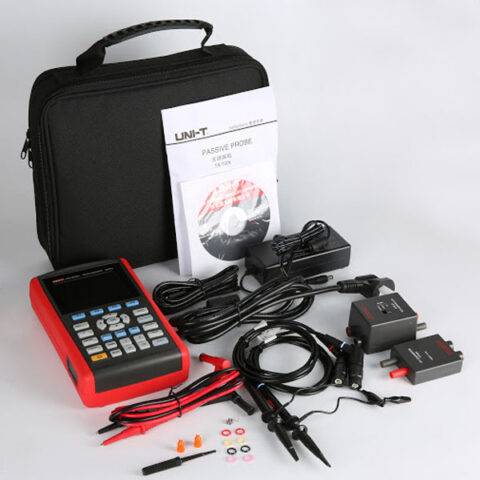

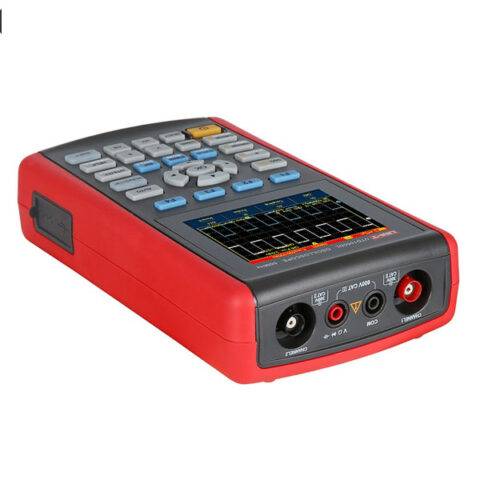

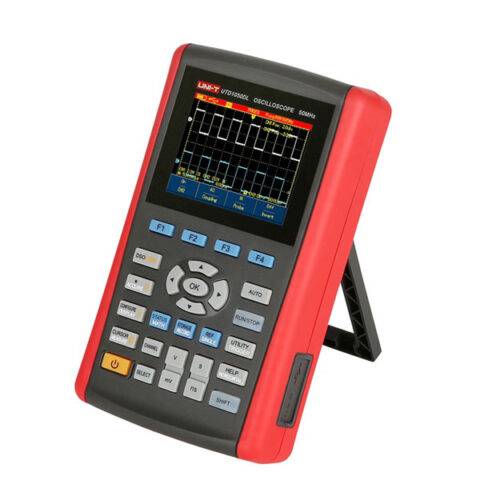

UTD1050DL Handheld Digital Storage Oscilloscope – 50Mhz (2 CH)

21,000.00 EGP 21,000.00 EGP Save 0%

In Stock

Quantity

Categories: UNI-T

Description

Features: Fully Auto Scale. Vertical Scale and Time-base automatically adjusted with the signal and without any manual interference. Unique and powerful auto Setup, quick and accurate to set up for signals with any DC component. Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div. Isolated USB for much safer communication. White and black display for your option, perfect for use outdoors with strong light. More than 6 hours of continuous battery operation. Specifications
Model	UTD1050DL
Bandwidth	50MHz
Channels	2
Sampling rate	250MS/s
Rise time	≤7ns
Memory depth	12kpts
Vertical scale (V/div)	5mV/div~20V/div
Time base scale (s/div)	5ns/div~50s/div
Storage methods	Setup, waveform, bitmap
Trigger types	Edge, pulse width, video, slope
Interface	Mini USB
Multimeter Specifications	Range	Accuracy
DC voltage (V)	400mV/ 4V/ 40V/ 400V	±(1% 5)
AC voltage (V)	400mV/ 4V/ 40V/ 400V	±(1.2% 5)
DC current (A)	400μA/ 4000μA	±(1.2% 5)
	40mA/ 4000mA	±(1% 5)
	4A	±(1.5% 5)
AC current (A)	400μA/ 4000μA	±(2% 5)
	40mA/ 4000mA	±(1.5% 5)
	4A	±(2.5% 5)
Resistance (Ω)	400Ω/4kΩ/40kΩ/400kΩ/4MΩ	±(1.2% 5)
	40MΩ	±(1.5% 5)
Capacitance (F)	51.2nF/512nF/5.12μF/51.2μF/100μF	±(3% 5)
Display count	4000
General Characteristics
Power	Li-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output
Display	3.5 inches 64k TFT LCD, 320 x 240
Product color	Red and grey
Product net weight	0.9kg
Product size	199mm x 118 mm x 49mm
