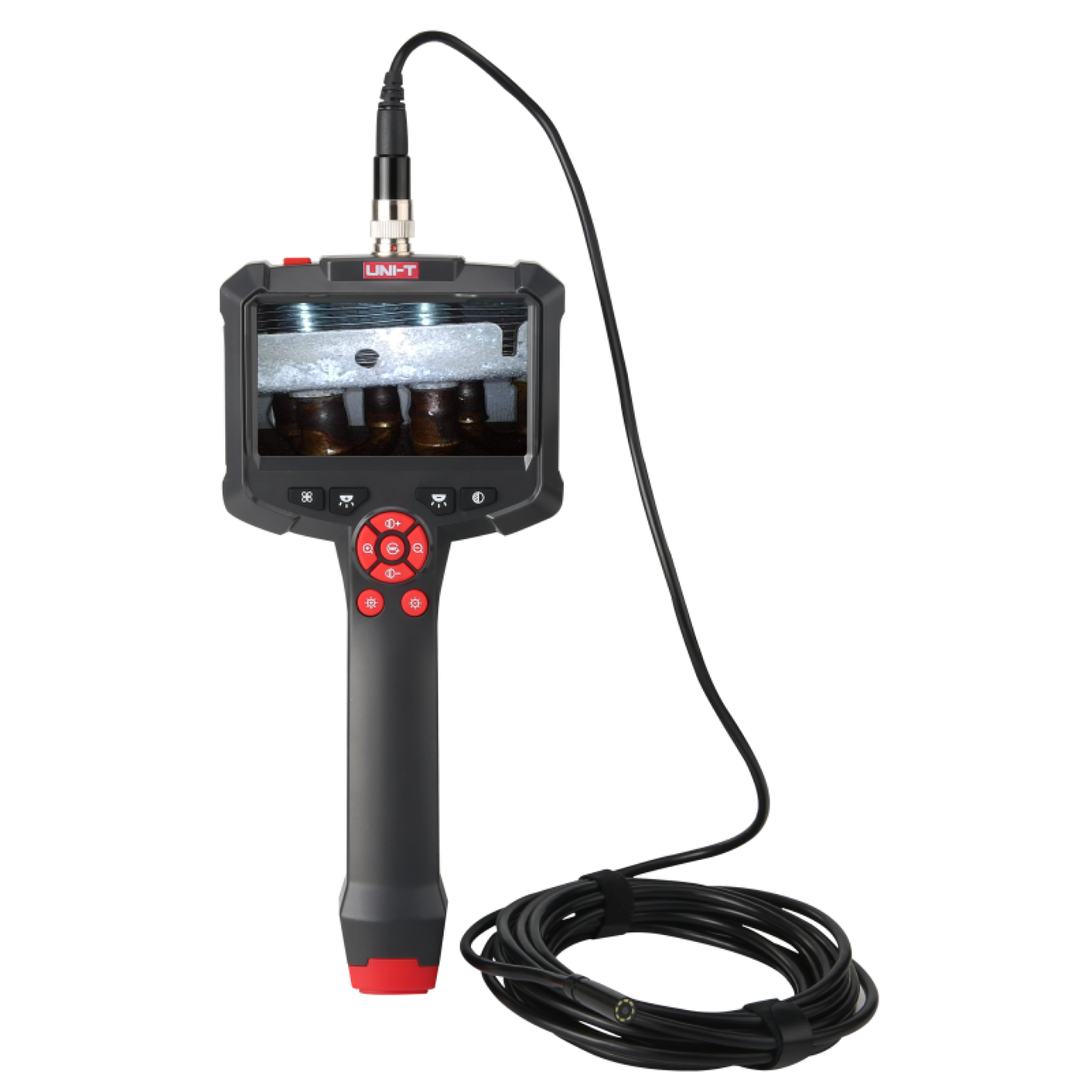

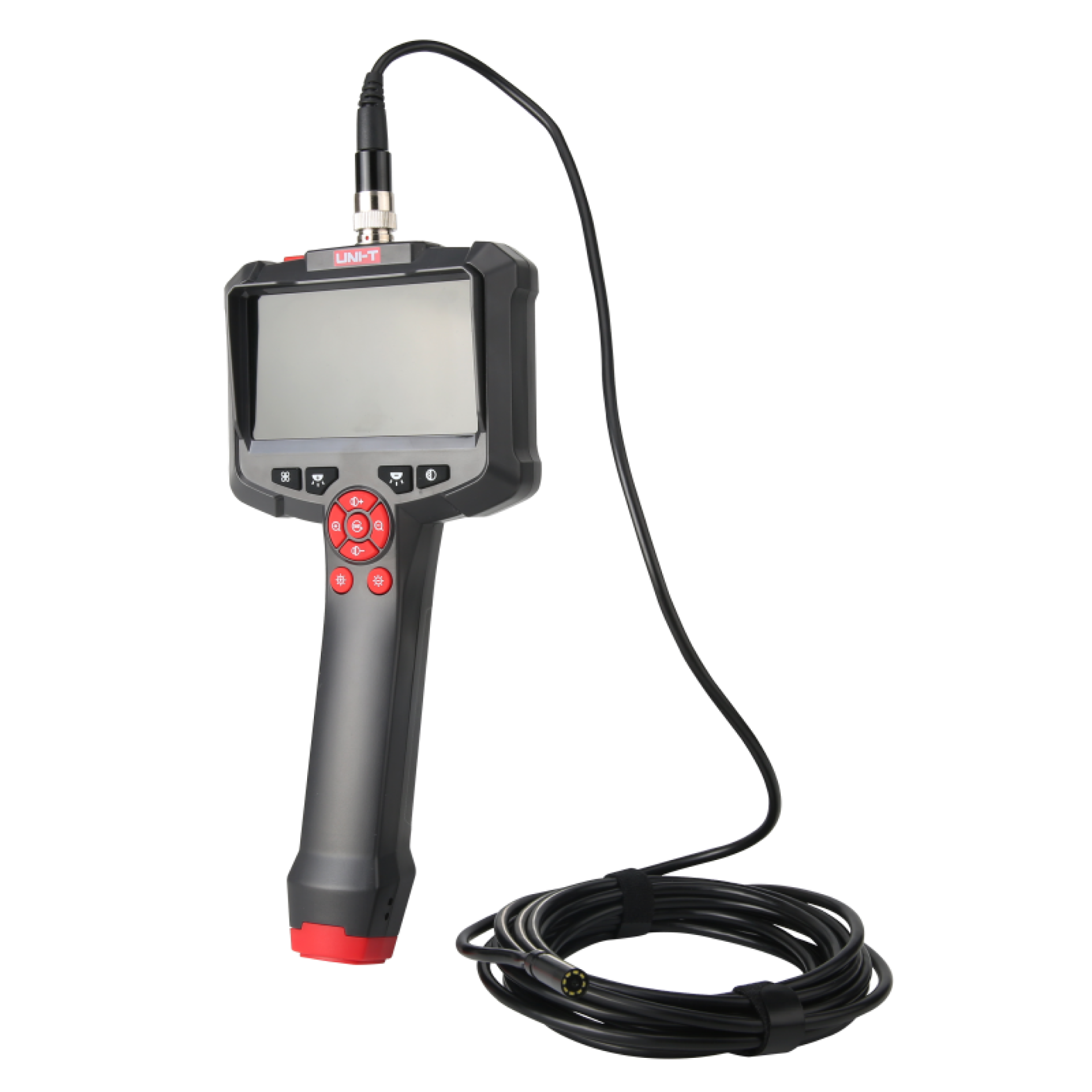

UNI-T UT665P - 10mm Handheld Industrial Borescope Camera

The UNI-T UT665P 10mm Handheld Industrial Borescope Camera is a portable industrial inspection instrument designed for visual examination of areas that are difficult or impossible to access directly. It combines a handheld display unit with a flexible camera probe, allowing technicians and engineers to inspect the interior of engines, pipes, machinery, equipment, and other confined spaces without extensive disassembly. The official UNI-T specifications identify the UT665P as a single-lens industrial borescope with an 8mm camera diameter, while some product listings use a 10mm-class description; the 8mm specification should be used for the actual camera lens diameter.

The UT665P features a 4.3-inch display with 1280 × 720 resolution, providing a clear real-time view from the camera probe. The camera uses a CMOS sensor with approximately 300K pixels, a 70° field of view, and a 20–100mm depth of field, allowing users to inspect objects and surfaces within the specified focusing range.

The camera probe incorporates eight adjustable LED lights with four brightness levels, providing illumination inside dark or enclosed areas. The probe is rated IP67, making the camera assembly resistant to dust and capable of temporary water immersion under the specified conditions. This makes the instrument suitable for inspection environments where conventional visual access and lighting are limited.

The UT665P is equipped with a 3.7V 2000mAh rechargeable lithium-ion battery, providing up to approximately 6 hours of operating time according to the manufacturer's specifications. The system also supports image rotation, contrast adjustment, black-and-white and color display modes, image zoom, and screen brightness adjustment.

The standard UT665P configuration uses a 1-meter replaceable hardwire probe with an aviation-style connector. UNI-T also specifies compatible 5-meter and 10-meter versions within the UT665P series, allowing the platform to be adapted to different inspection requirements.

The UNI-T UT665P is suitable for automotive maintenance, industrial equipment inspection, machinery servicing, HVAC systems, pipelines, electronic equipment maintenance, and other applications requiring visual inspection of confined or inaccessible areas.

Features

• 4.3-inch HD color display

• 1280 × 720 screen resolution

• 8mm camera lens diameter

• 300K-pixel CMOS image sensor

• 70° field of view

• 20–100mm depth of field

• 8 adjustable LED illumination lights

• 4 LED brightness levels

• IP67-rated camera probe

• Replaceable flexible probe with aviation-style connector

• Image rotation function

• Image zoom in/out

• Contrast and brightness adjustment

• Color and black-and-white display modes

• 3.7V 2000mAh rechargeable Li-ion battery

• Up to 6 hours of battery operation

• Available with different probe lengths within the UT665P series

Specifications

• Brand: UNI-T

• Model: UT665P

• Product Type: Handheld Industrial Borescope

• Display Size: 4.3 inches

• Display Resolution: 1280 × 720

• Camera Type: Single Lens

• Camera Sensor: CMOS

• Camera Resolution: 300K pixels

• Lens Diameter: 8mm

• Field of View: 70°

• Depth of Field: 20–100mm

• LED Illumination: 8 LEDs

• LED Brightness Levels: 4

• Camera Protection: IP67

• Standard Probe Length: 1m

• Probe Type: Replaceable hardwire with aviation-style connector

• Battery: 3.7V / 2000mAh Li-ion

• Battery Life: Up to 6 hours

• Lens Operating Temperature: 0°C to 80°C

• Working Temperature: 0°C to 45°C

• Humidity: <90% RH, non-condensing

• Certifications: CE, RoHS

Applications

• Automotive engine inspection

• Industrial machinery inspection

• Pipeline inspection

• HVAC system maintenance

• Electronic equipment maintenance

• Mechanical equipment servicing

• Inspection of confined spaces

• Industrial maintenance and troubleshooting

• Equipment repair and preventive maintenance

• General-purpose visual inspection
