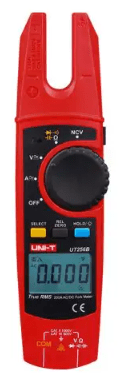

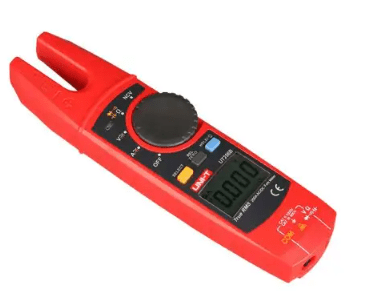

UT256A 200A True RMS Fork Meter
Electra Store
SKU: UT-256A
1,650.00 EGP
In Stock
1
Categories: UNI-T
Overview
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
Description
| Specifications | ||
| Model | Range | UT256A |
| AC current (A) | 200A | ±(1.8% 2) |
| AC voltage (V) | 1000V | ±(1.2% 3) |
| DC voltage (V) | 1000V | ±(0.8% 3) |
| Resistance (Ω) | 60MΩ | ±(1% 2) |
| Frequency (Hz) | 10~10kHz | ±(0.1% 5) |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| True RMS | √ | |
| NCV | Tricolor | |
| Data hold | √ | |
| LCD backlight | √ | |
| Auto power off | About 15 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Input protection | √ | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 2 | |
| Display | 35mm x 26mm | |
| Product color | Red and grey | |
| Product net weight | 251g; UT256B: 163.7g | |
| Product size | 217mm x 58.8mm x 38.5mm | |
