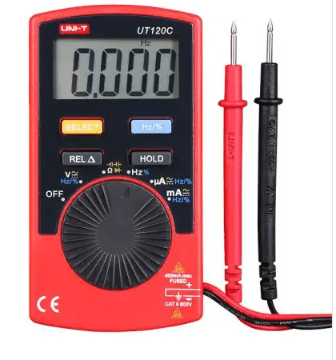

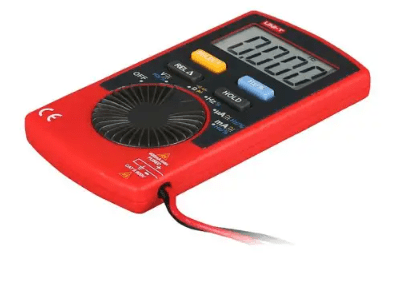

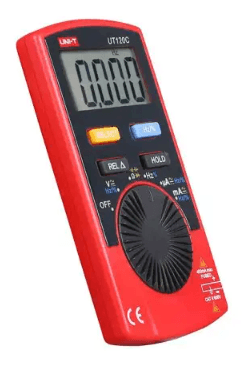

Ut120C Pocket Size Digital Multimeter- Auto Range
Electra Store
SKU: Ut-120C
880.00 EGP
In Stock
1
Categories: UNI-T
Description
UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
Specifications of UT120C Pocket Size Digital Multimeter
| Specifications | Range | UT120C |
| DC voltage (V) | 600V | Ā±(0.8% 1) |
| AC voltage (V) | 600V | Ā±(1.2% 3) |
| DC current (A) | 400mA | Ā±(1% 3) |
| AC current (A) | 400mA | Ā±(1.5% 5) |
| Resistance (Ī©) | 40MĪ© | Ā±(1% 2) |
| Capacitance (F) | 100Ī¼F | Ā±(4% 3) |
| Frequency (Hz) | 10MHz | Ā±(0.5% 3) |
| Features | ||
| Display count | 4000 | |
| Auto range | ā | |
| Duty cycle | 0.1%~99.9% | ā |
| Diode | ā | |
| Auto power off | Around 30 minutes | ā |
| Continuity buzzer | ā | |
| Low battery indication | ā¤2.4V | ā |
| Data hold | ā | |
| Relative mode | ā | |
| Input impedance for DCV | Around 10MĪ© | ā |
| General Characteristics | ||
| Power | 3V battery (CR2032) | |
| Display | 43mm x 22mm | |
| Product color | Red and grey | |
| Product net weight | 76g | |
| Product size | 110mm x 58.2mm x 10.8mm | |
