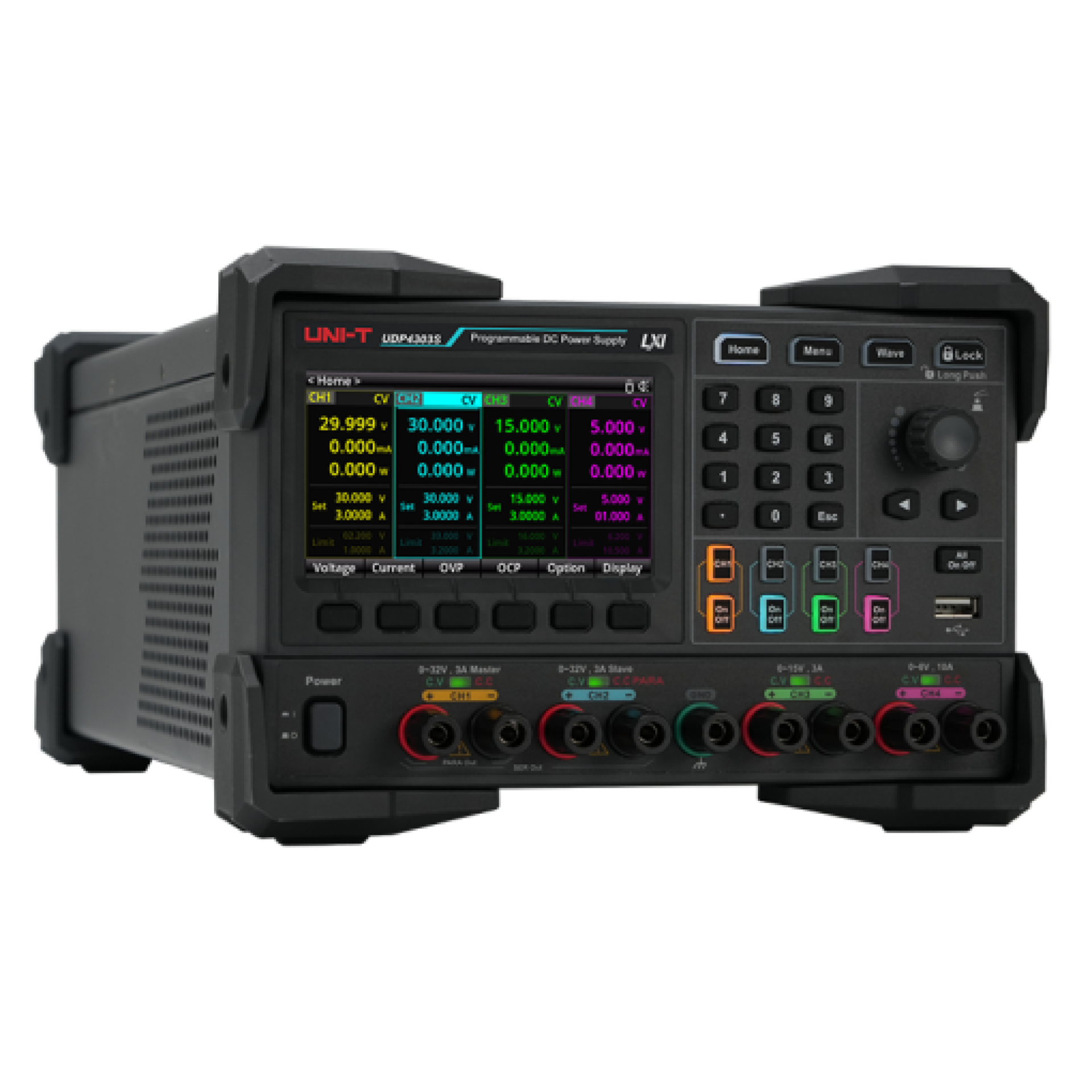

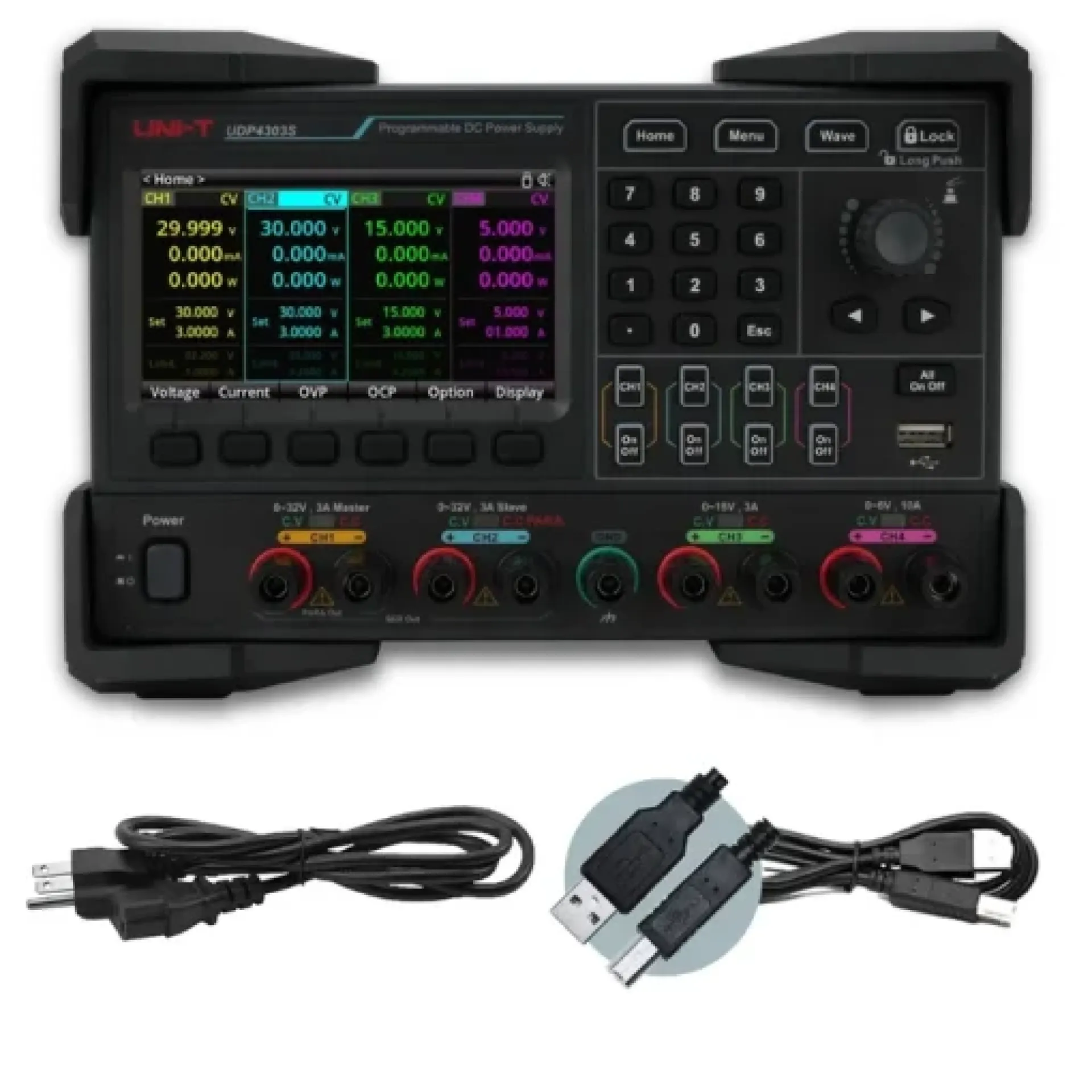

UNI-T UDP4303S 4-Channel Programmable Linear DC Power Supply 297W

Features:

• Four Independent Output Channels: Provides four isolated DC output channels for powering and testing multiple circuits simultaneously.

• High Total Output Power: Delivers up to 297W of combined output power for laboratory testing, electronics development, and production applications.

• Multiple Voltage and Current Ranges: Includes two 32V/3A channels, one 15V/3A channel, and one high-current 6V/10A channel.

• Programmable Linear Regulation: Uses linear power-supply technology to provide stable output with low ripple and noise.

• High-Resolution Control: Supports 1mV voltage resolution and microamp-level current measurement for detailed testing of sensitive electronic circuits.

• Series and Parallel Operation: Channels 1 and 2 support internal series and parallel connections for flexible output configurations.

• Remote Voltage Sensing: All four channels support 2-wire and 4-wire sensing to compensate for voltage drops in test leads.

• Waveform Monitoring: Displays voltage, current, and power waveforms across the four channels, with a current sampling rate of up to 8kSa/s.

• Programmable Sequences: Supports list and delay functions with up to 512 output steps and a minimum programming time resolution of 1ms.

• Computer-Controlled Operation: Supports remote control through LAN, USB, RS-232, and digital I/O interfaces, with SCPI protocol support.

• Built-In Protection: Includes overvoltage protection and reverse-connection protection, along with monitoring functions for safer testing.

Specifications:

• Brand: UNI-T

• Model: UDP4303S

• Product Type: Programmable Linear DC Power Supply

• Number of Channels: 4

• Total Output Power: 297W

• Channel 1 Output: 0–32V, 0–3A

• Channel 2 Output: 0–32V, 0–3A

• Channel 3 Output: 0–15V, 0–3A

• Channel 4 Output: 0–6V, 0–10A

• Voltage Setting Resolution: 1mV

• Current Measurement Resolution: Up to 1µA in the supported low-current measurement mode

• Programming Accuracy, Channels 1–3: Voltage ±(0.03% + 8mV); current ±(0.15% + 5mA)

• Ripple and Noise: Less than 350µVrms / 2mV peak-to-peak under specified conditions

• Transient Response: Less than 50µs under the manufacturer's specified load-change test

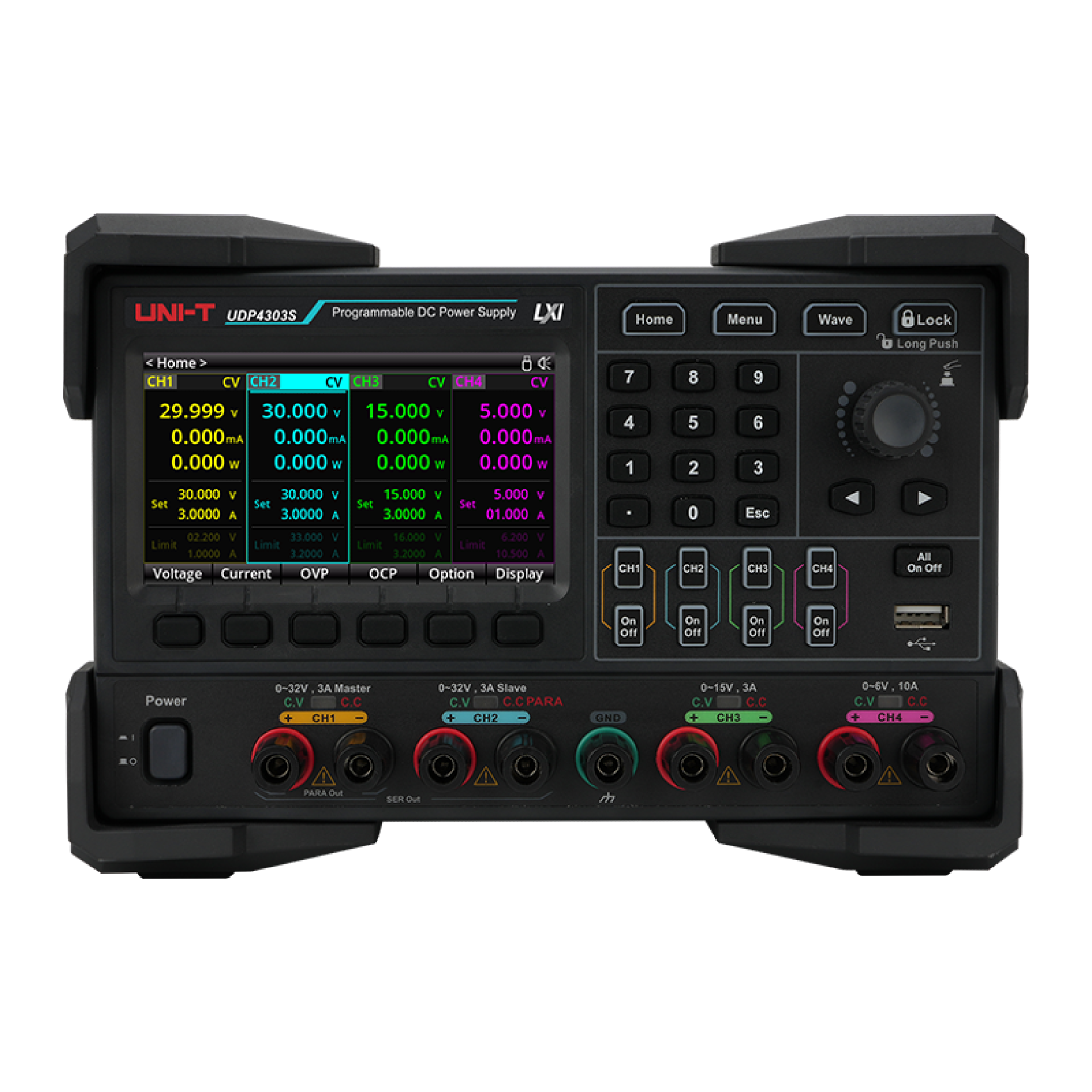

• Display: 4.3-inch color TFT LCD, 480 × 272 pixels

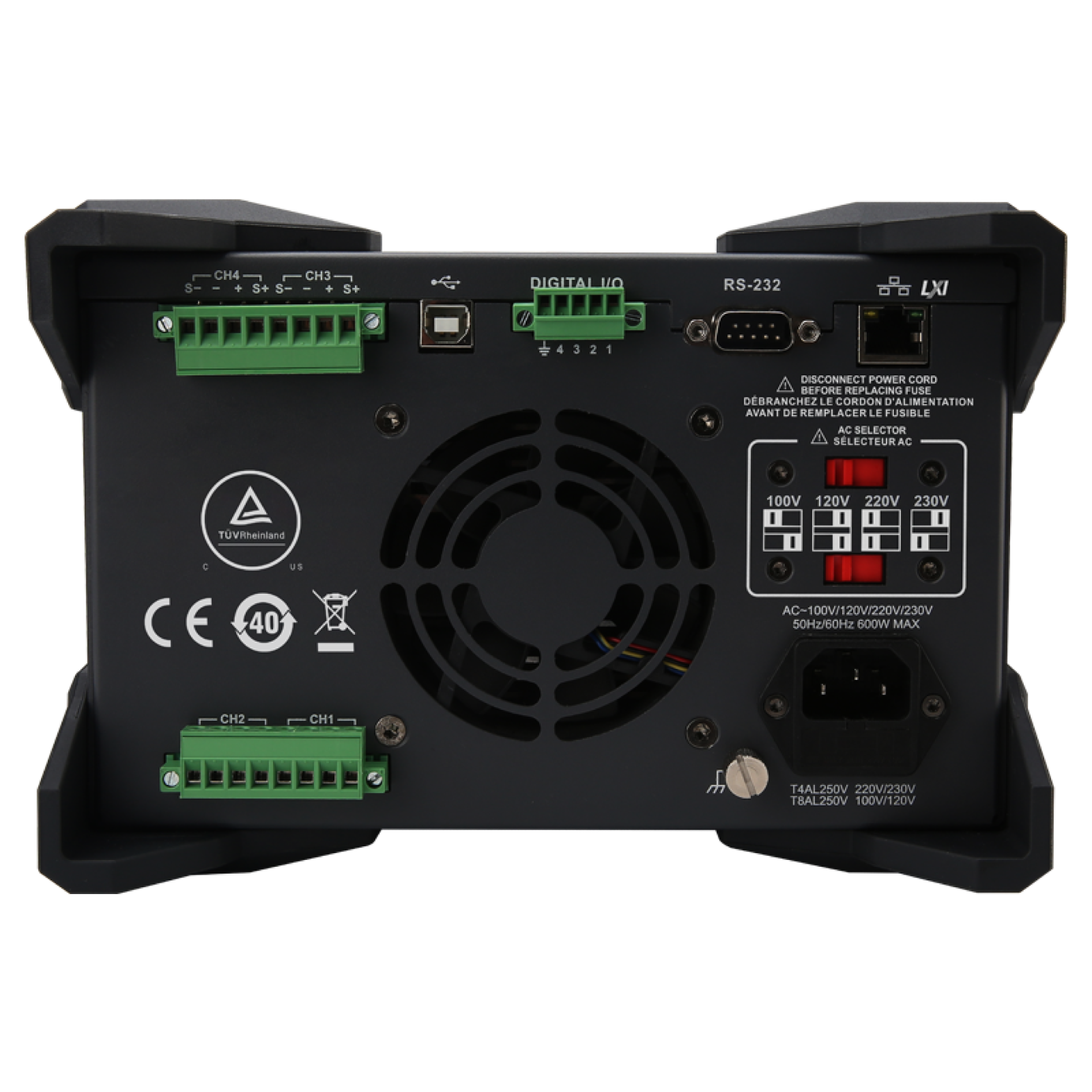

• Remote Interfaces: LAN, USB Host, USB Device, RS-232, Digital I/O

• Programming Protocol: SCPI

• Remote Sensing: 2-wire and 4-wire

• Waveform Sampling Rate: Up to 8kSa/s

• Programming Time Resolution: 1ms

• Dimensions: Approximately 225 × 159.6 × 445mm

• Net Weight: Approximately 10.5kg

Applications:

• Electronics research and development

• Embedded systems testing

• Arduino and microcontroller development

• Sensor and IoT device testing

• Semiconductor and component evaluation

• Testing low-voltage electronic circuits

• Power consumption and current analysis

• Automated production testing

• University and engineering laboratories

• Multi-rail circuit prototyping and troubleshooting
