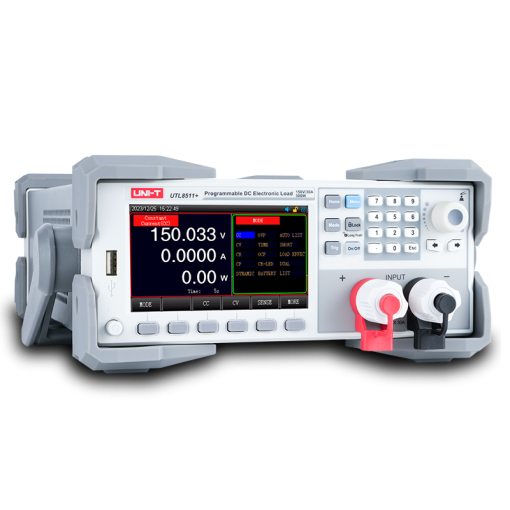

UNI-T UTL8511+ Programmable DC Electronic Load
In Stock
Categories: UNI-T
Description
Key Features
✔ High-Power Testing - 1500W continuous/1800W peak (5s) ✔ Multi-Mode Operation - CC/CV/CR/CP/CW dynamic loading ✔ Ultra-Fast Sampling - 500kHz waveform capture rate ✔ Programmable Sequences - 100-step sequences with 10ms transitions ✔ Comprehensive Interfaces - USB/LAN/RS232/GPIB (optional) ✔ Advanced Protection - OVP/OCP/OPP/OTP safeguards
Technical Specifications
Basic Parameters
-
Power Rating: 1500W (continuous), 1800W (peak)
-
Voltage Range: 0-150V
-
Current Range: 0-60A
-
Resolution: 0.1mV/0.1mA
-
Accuracy: ±(0.03% of setting + 0.03% of range)
Operation Modes
| Mode | Range | Resolution | Accuracy |
|---|---|---|---|
| CC | 0-60A | 0.1mA | ±(0.03%+0.03%) |
| CV | 0-150V | 0.1mV | ±(0.03%+0.03%) |
| CR | 0.1Ω-10kΩ | 0.1mΩ | ±(0.1%+0.1%) |
| CP | 0-1500W | 0.1W | ±(0.1%+0.1%) |
Dynamic Characteristics
-
Slew Rate: Up to 2.5A/μs
-
Minimum Pulse Width: 100μs
-
Rise Time: <50μs (10%-90%)
Advanced Functions
-
Battery Test Mode: Capacity/discharge curve analysis
-
Waveform Simulation: Arbitrary load profile generation
-
Harmonic Analysis: Up to 50th order distortion
-
Data Logging: 1M points internal storage
Package Contents
-
Main unit with power cord
-
Remote sense cables
-
USB communication cable
-
Test leads (25mm²)
-
User manual & calibration certificate
Applications
-
Power Supply Testing: Ripple, transient response
-
Battery Characterization: Cycle life, capacity tests
-
Renewable Energy: Solar panel IV curve tracing
-
Automotive Electronics: EV battery simulation
-
Aerospace Power: Satellite power system validation
Why Choose UTL8511+?
-
Cost-Performance Leader: Comparable to Keysight at 40% lower cost
-
Future-Ready Design: Supports SCPI commands for automation
-
Reliable Protection: 6-stage safety protection system
-
Upgrade Options: Rack-mount kit & high-power expansion
Compliance Standards: IEC 61010-1, ISO 9001, CE/RoHS
