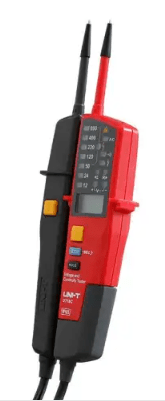

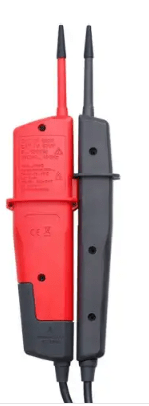

UT18C Voltage and Continuity Tester
Electra Store
SKU: UT18C
1,900.00 EGP
In Stock
1
Categories: UNI-T
Overview
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
Description
Specifications of UT18C Voltage and Continuity Tester
| Specifications | Range | UT18C |
| Voltage (V) | 12V | 8V±1V |
| 24V | 18V±2V | |
| 50V | 38V±4V | |
| 120V | 94V±8V | |
| 230V | 180V±14V | |
| 400V | 325V±15V | |
| 690V | 562V±24V | |
| Phase rotation test | 57Vac～400Vac (3 phase) | √ |
| Frequency: 50Hz~400Hz | ||
| Single lead (L2) voltage detection | Operating voltage: 100V~690V | √ |
| Frequency: 50Hz~400Hz | ||
| Continuity test | Resistance: 0Ω~100kΩ ( 50% accuracy) | √ |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
| Polarity detection | Positive & Negative | √ |
| Self-inspection | All LED or LCD | √ |
| No power test | Operating voltage: 100~690V | √ |
| Features | ||
| Voltage indication | LED | |
| Exceed voltage | Voltage range: 713V~788V | √ |
| Auto standby | Standby current＜10μA | √ |
| Slient mode | All range | √ |
| Work light | √ | |
| Low battery indication | Around 2.5V | √ |
| LCD display (voltage) | 6V~690V | ±(1.5% 5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3% 5) |
| IP65 | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03)×2 | |
| Display | UT18C: 31mm x 20mm | |
| Product color | Red and grey | |
| Product net weight | 280g | |
| Product size (W x H x D) | 272mm x 85mm x 31mm | |
