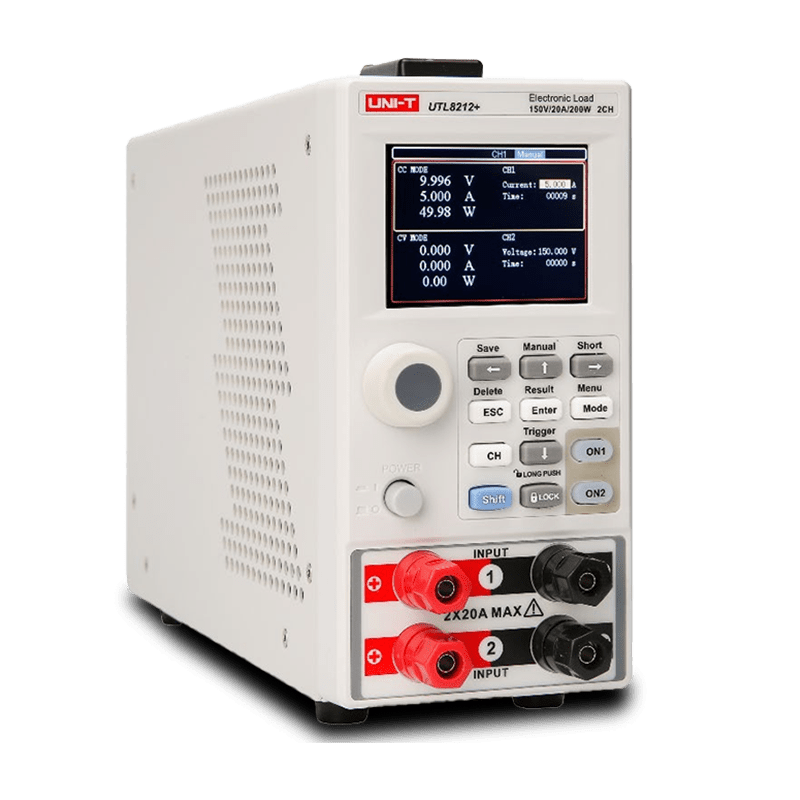

UNI-T UTL8212+ DC Electronic Load Dual Channel

Product Features

• 2.8 inch 24-bit true color LCD
• The maximum power 200W x2, the maximum current 0~20A (single group channel), the maximum voltage 150V
• 8MHz synchronous current and voltage ADC sampling
• Dual Channel 200Wx2
• Measurement resolution is up to 1mV/1mA
• Fourmodes CC/CV/CR/CP
• Dynamic current test is up to 5kHz
• Rising and falling rate of programmable current
• Analogshort circuit analog function
• Multi-mode battery discharge
• Listmode supports automatic test and quick unload
• Overvoltage, low voltage, overcurrent, overpower, overheat protection and anti-reverse connection warning
• Electrode-less servo, smart fans system
• Power cutoff memory
• Standard RS232 port (RS485 port optional)
• Standard SCPI protocol
• Matched computer software for remote control and monitor
