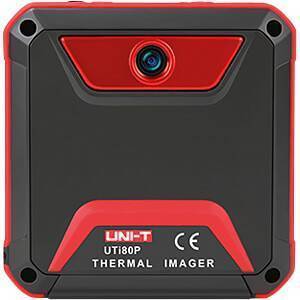

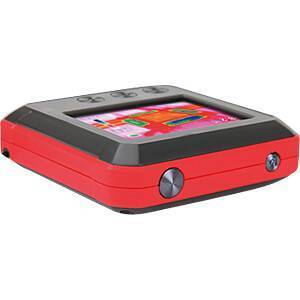

UNI-T UTi80P Thermal Imager

UTi 80P is the latest portable infrared thermal imaging camera from Uni-Trend with a resolution of 80 × 60. Users have the option of measuring the temperatures or temperature differences of objects or devices during the day or at night. Furthermore, the UTi 80P thermal imaging camera has a USB interface with which the device can be both loaded and connected to the computer to evaluate recorded and stored images with the help of software.

Hotspot detection (high/ low)
High and low temperature alarm
Compact dimensions, handy and high quality
USB port
Micro SD card slot

Image data: Temperature range: -10 ... 400 °C IR resolution: 80 x 60 pixels NETD: < 150mK (0.15 °C) Pixel size: 17 µm Pallets: Iron, Rainbow, grey FOV: 51° (H) x 38° (V) Frame rate: 9 Hz Deviations: /- 2% or 2 °C at -10...140 °C /- 3% or 3 °C at -140...450 °C Resolution: 0.1 °C Device: display: 2,4" TFT LCD Display resolution: 320 x 240 pixels Display dimensions: 48 x 36 mm Battery: 3.7 V/ 1300 mAh (Li-Ion) Dimensions: 76 x 76 x 22 mm Weight: 125 g Scope of delivery: 1x thermal imaging camera 1x USB cable 1x Software CD
