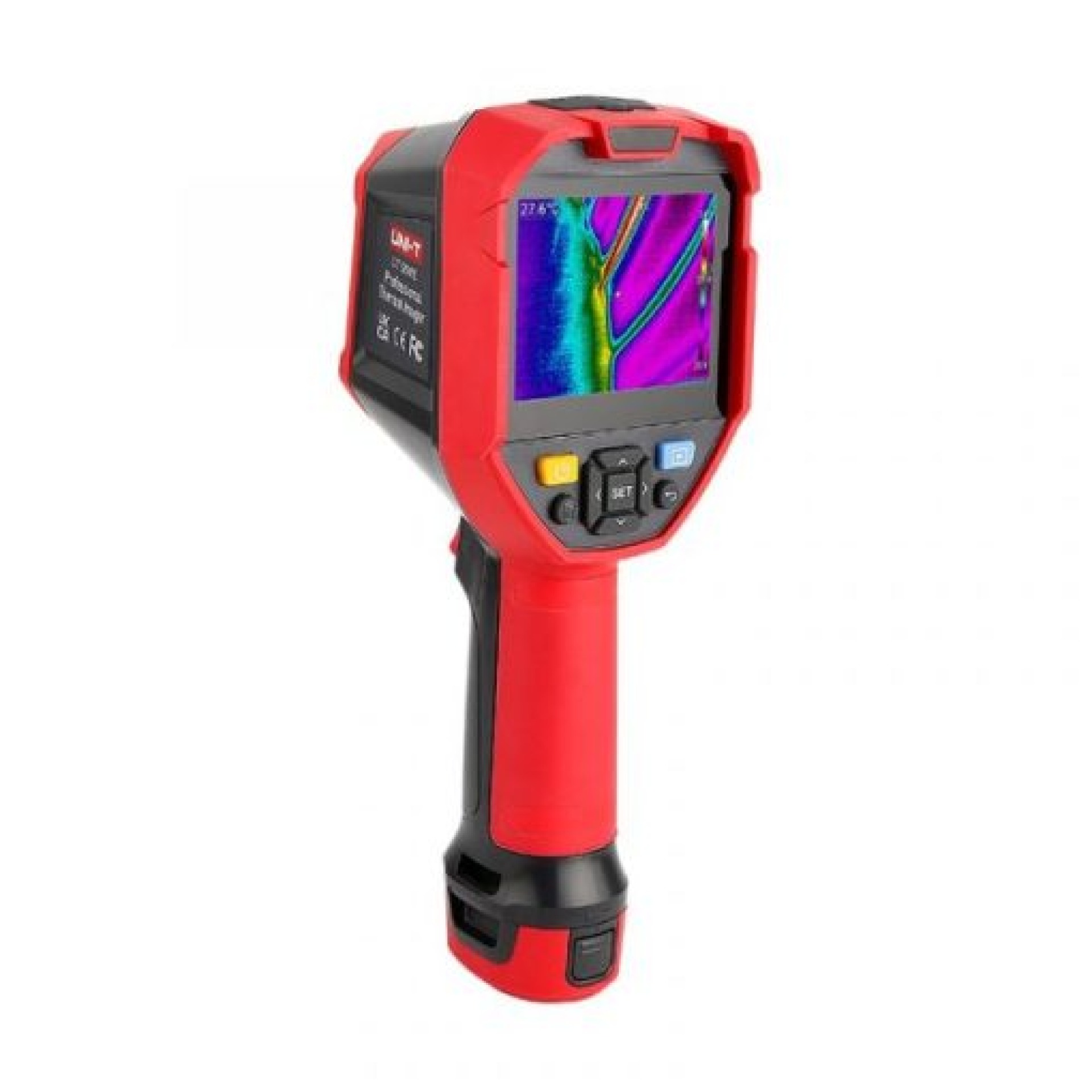

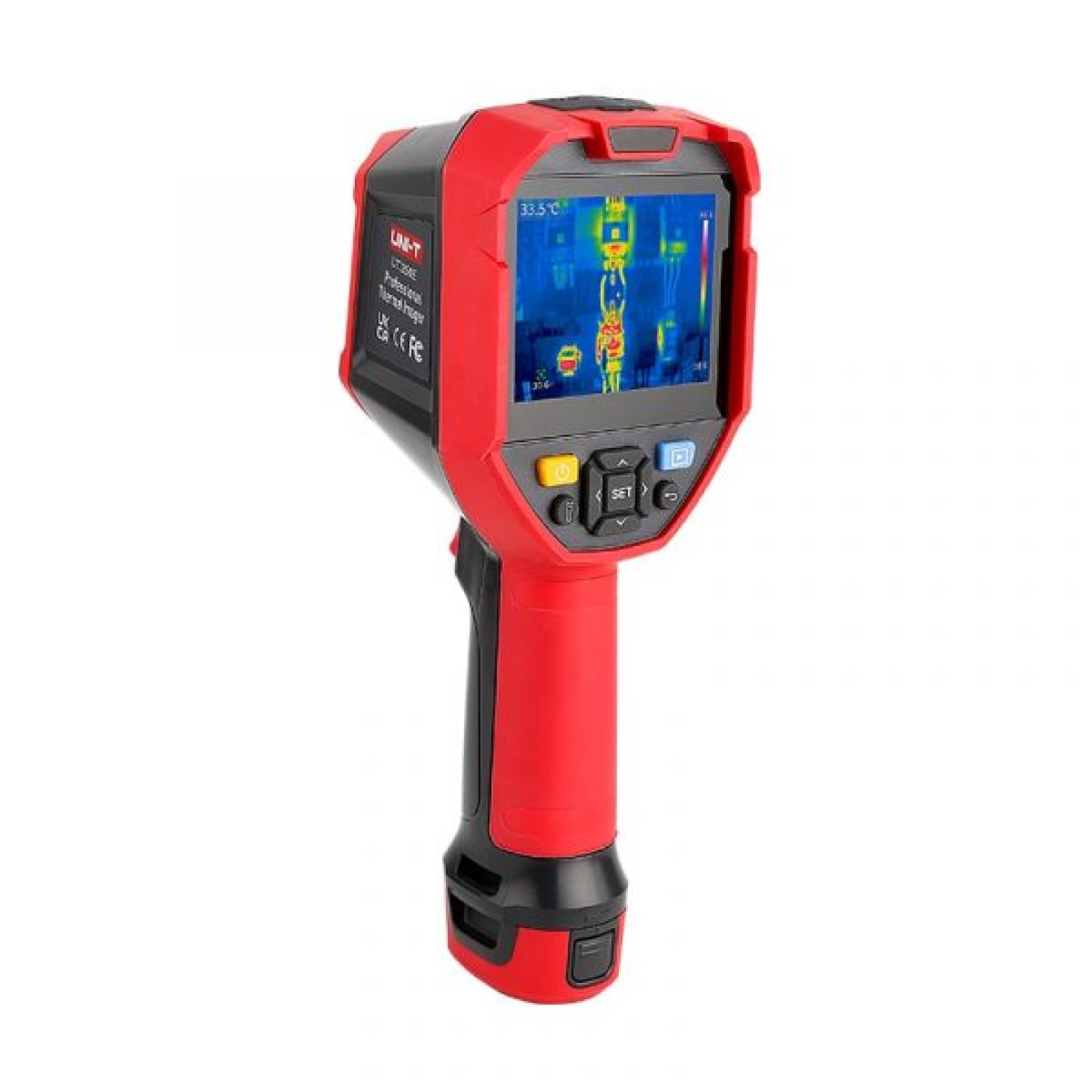

UNI-T UTi260E Professional Thermal Imaging Camera

Features:

• High-Resolution Thermal Imaging: Features a 256 × 192 infrared detector with 49,152 thermal pixels for identifying temperature variations across equipment and surfaces.

• Wide Temperature Range: Measures temperatures from -20°C to 550°C using selectable low- and high-temperature ranges.

• High Thermal Sensitivity: Provides thermal sensitivity below 50mK at 25°C, helping reveal subtle temperature differences.

• Visual and Thermal Imaging: Combines thermal images with a 2MP visible-light camera for clearer inspection and documentation.

• Multiple Image Modes: Supports thermal, visible-light, fusion, and picture-in-picture (PIP) modes.

• Real-Time Temperature Analysis: Displays center-point temperature and automatically tracks high and low temperatures. Additional point, area, and line analysis tools support detailed inspection.

• Adjustable Emissivity: Allows emissivity settings from 0.01 to 1.00 to improve measurement accuracy for different surface materials.

• Temperature Alarms: Provides high- and low-temperature alarms with visual indicators to help identify abnormal operating conditions.

• Wireless Connectivity: Supports Wi-Fi photo transfer and mobile-app analysis, with compatible PC software for image review and reporting.

• Digital Zoom: Offers 2× and 4× digital zoom for examining areas of interest.

• Portable, Rugged Design: Features IP54 protection, 2m drop resistance, an LED light, and a replaceable rechargeable battery.

Specifications:

• Brand: UNI-T

• Model: UTi260E

• Product Type: Professional Handheld Thermal Imager

• Infrared Resolution: 256 × 192 pixels

• Visible-Light Camera: 2MP

• Temperature Measurement Range: -20°C to 150°C / 0°C to 550°C, manually selectable

• Temperature Measurement Accuracy: ±2°C or ±2%, whichever is greater, under specified conditions

• Thermal Sensitivity (NETD): Less than 50mK at 25°C

• Detector Type: Uncooled vanadium oxide (VOx)

• Infrared Spectral Range: 8–14µm

• Field of View: 56° × 42.2°

• Spatial Resolution (IFOV): 3.8mrad

• Lens Focal Length: 3.2mm

• Focus: Focus-free

• Display: 3.5-inch IPS LCD, 640 × 480 pixels

• Frame Rate: Up to 25Hz, depending on the specified version

• Emissivity Setting: 0.01–1.00

• Image Palettes: Iron, Rainbow, White Hot, Red Hot, Black Hot, Lava, and Rainbow HC

• Image Modes: Thermal, visible, fusion, and PIP

• Digital Zoom: 2× and 4×

• Temperature Analysis: Point, area, and line measurements

• Connectivity: Wi-Fi and USB Type-C

• Image Format: JPG

• Storage: MicroSD card; capacity depends on the supplied card and supported configuration

• Battery: 3.7V, 5200mAh rechargeable lithium-ion battery

• Ingress Protection: IP54

• Drop Resistance: 2m

• Operating Temperature: 0°C to 50°C

• Standard Accessories: Confirm the included battery, memory card, USB cable, and other accessories with the supplied package

Applications:

• Electrical panel and switchgear inspection

• PCB and electronic component troubleshooting

• Overheating detection in power supplies and circuit boards

• Industrial machinery maintenance

• Motor, bearing, and electrical connection inspection

• HVAC and refrigeration diagnostics

• Building insulation and heat-loss inspection

• Temperature monitoring in manufacturing processes

• Preventive maintenance and fault diagnosis

• Research, development, and technical education
