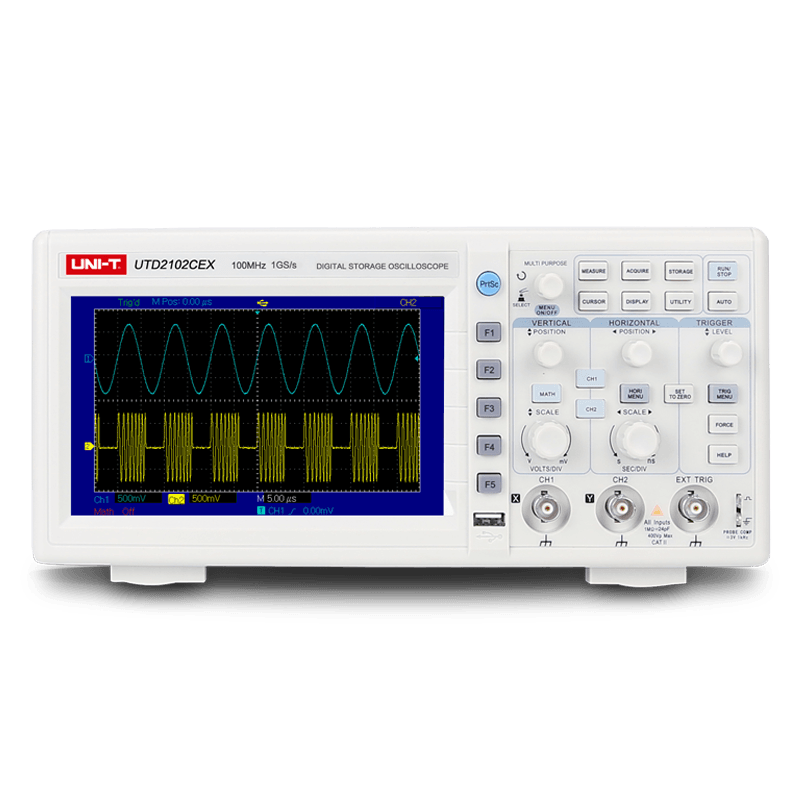

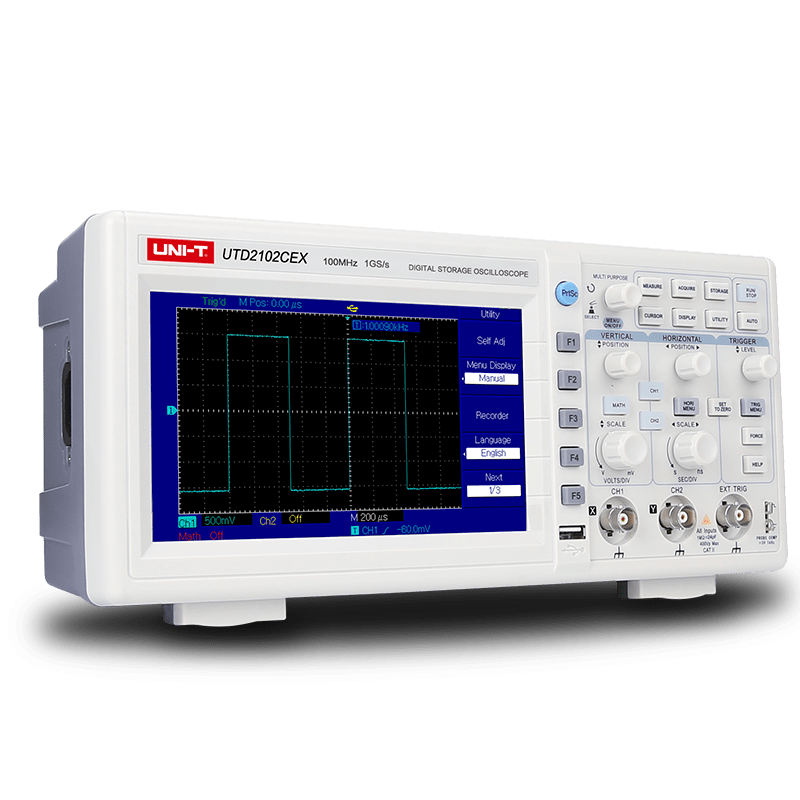

UNI-T UTD2102CEX+ Digital Oscilloscope
In Stock
Categories: UNI-T, multimeter
Description
2 channels, wide vertical range: 1mV/div~20V/div
7 inch widescreen LCD display
The new interface style
Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device
USB drive system software upgrade
Storage of waveform setups and interface waveform and setup reproduction
Automatic measurement of 32 waveform parameters
Unique waveform record and replay function
Multilingual menu available
| Specifications | UTD2102CEX | ||
| Channels | 2 | ||
| Bandwidth | 100MHz | ||
| Sample Rate | 1GS/s | ||
| Rise Time | ≤3.5ns | ||
| Memory Depth | 25kpts | ||
| Waveform Acquisition Rate | ≥2000wfms/s | ||
| Vertical Sensitivity (V/div) | 1mV/div~20V/div | ||
| Timebase Range (s/div) | 2ns/div~50s/div | ||
| Storage | Setup, Wave, Bitmap | ||
| Trigger Modes | Edge, Pluse, Video, Slope, Alternate | ||
| Interface | USB OTG | ||
| General Characteristics | |||
| Power | 100-240VAC, 45-440Hz | ||
| Display | 7 inches 64k Color TFT LCD, 800×480 | ||
| Product Color | White and grey | ||
| Product Net Weight | 2.2kg | ||
| Product Size (W×H×D) | 306mm ×147mm × 122mm | ||
| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
