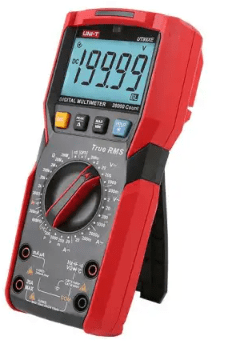

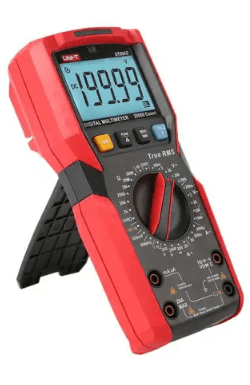

Uni-T Ut89XE Digital Multimeter
Electra Store
SKU: Ut-89XE
2,500.00 EGP
2,500.00 EGP
Save 0%
Available on Backorder
1
Categories: UNI-T
Overview
The UT89XE is a 20000-count true RMS digital multimeter with high resolution, high accuracy, and manual range. Aside from normal features of multimeters, this meter also includes conductance measurement (range: 0.1nS~200nS; converted resistance: 5MΩ~10GΩ), which expands the range of resistance measurement and enables high resistance measurement. Designed according to CAT II 1000V/CAT III 600V safety rating, the meter comes with overvoltage/overcurrent alarm and full-featured false detection protection for high voltages.
Description
Specifications of UT89X Series Digital Multimeters
| Specifications | Range | UT89XE |
| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.05% 5) |
| AC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.8% 25) |
| DC current (A) | 2000μA/200mA/20A | ±(0.5% 4) |
| AC current (A) | 2000uA/200mA/20A | ±(1.5% 15) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.4% 5) |
| Capacitance (F) | 200mF | ±(4% 50) |
| Conductance (ns) | 200nS | ±(1.2% 50) |
| Frequency (Hz) | 60MHz | ±(0.1% 3) |
| Temperature (℃) | -40℃~1000℃ | ±(1% 10) |
| Temperature (℉) | -40℉~1832℉ | ±(1.5% 10) |
| Audible/visual alarm | V/A/Cap/Diode | √ |
| MAX/MIN | √ | |
| Peak Hold | √ | |
| LPF measurement | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Display | 61mm x 36mm | |
| Product net weight | 345g | |
| Product size | 189mm x 89mm x 53mm | |
