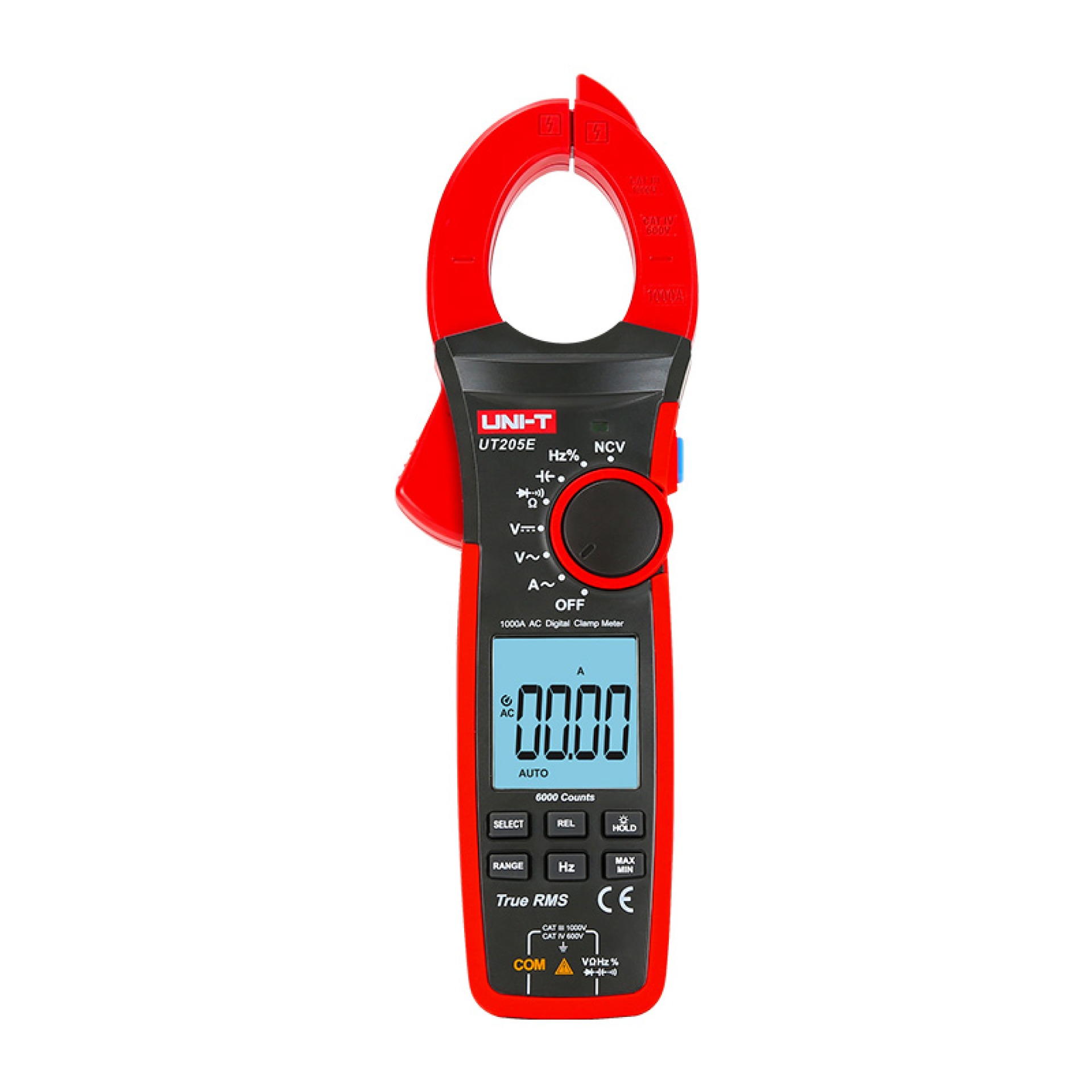

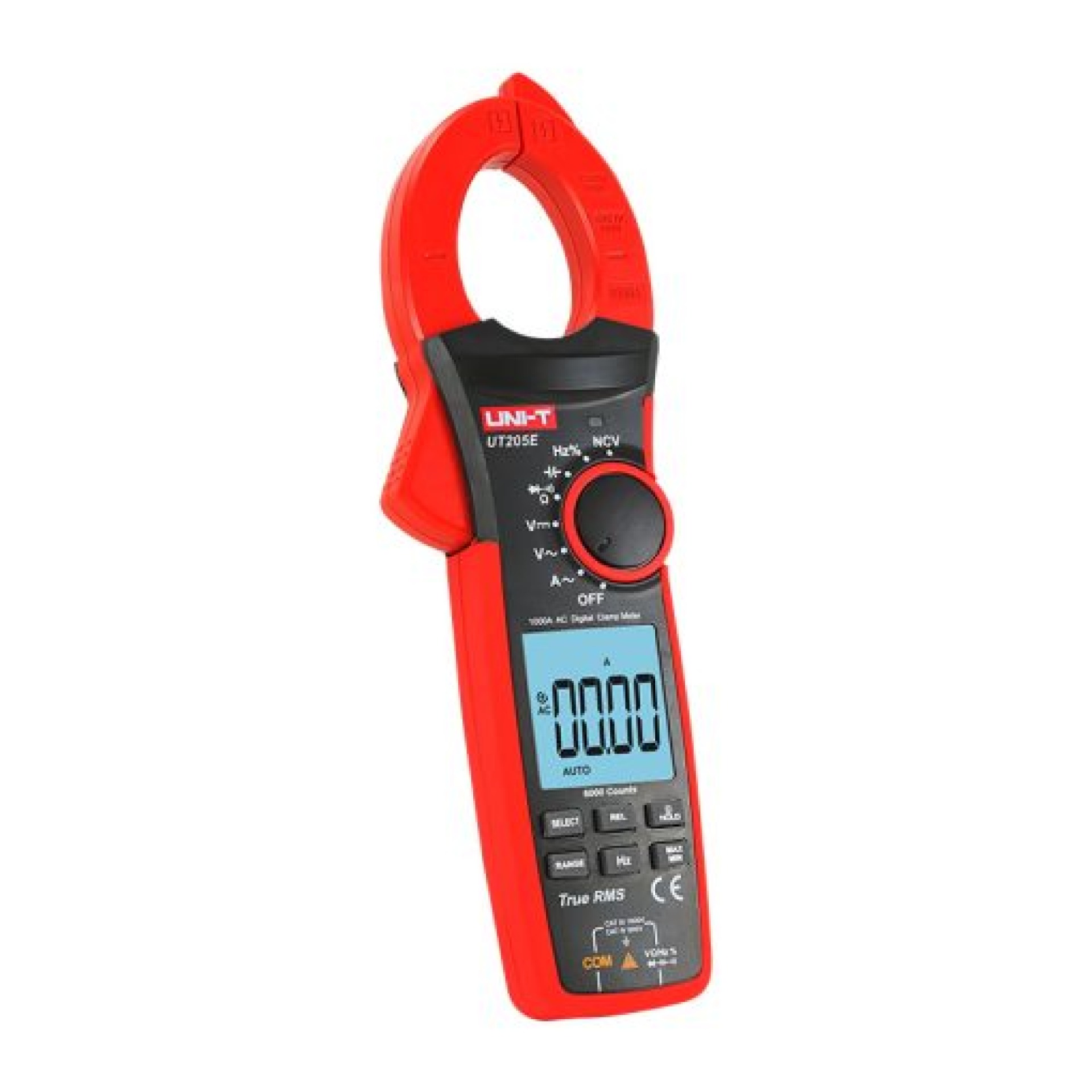

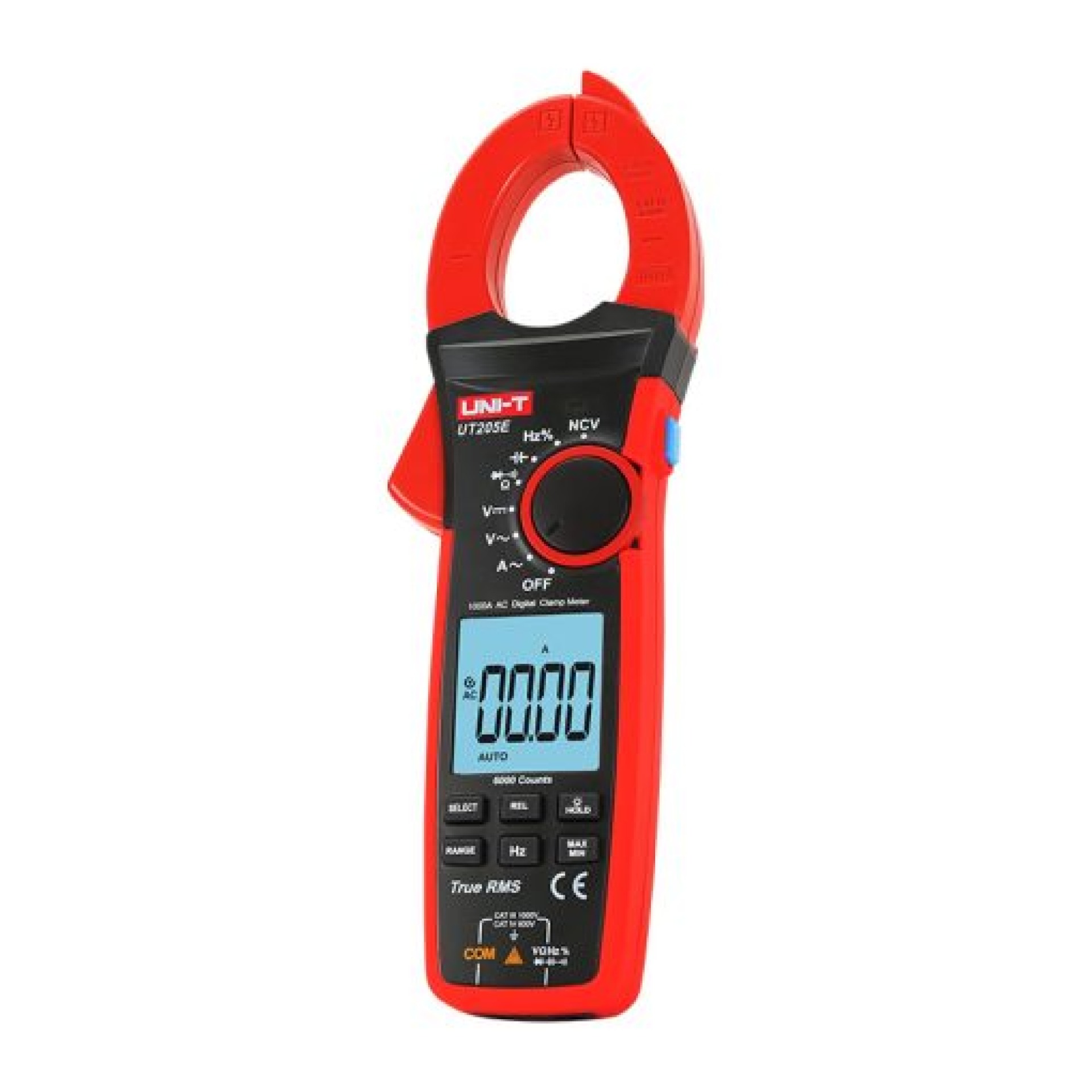

UNI-T UT205E Digital Clamp Meter

Product Description

The UNI-T UT205E Digital Clamp Meter is a professional True RMS clamp meter designed for measuring AC current and performing essential electrical measurements in industrial maintenance, electrical troubleshooting, equipment servicing, and field applications. Its clamp-jaw design allows technicians to measure current without disconnecting the conductor, making it particularly useful when working on installed electrical systems where conventional series-current measurement is impractical.

The UT205E can measure AC current up to 1000A with an accuracy of ±(2%+5). Its current measurement frequency response is 50Hz to 60Hz, making it suitable for common mains-frequency electrical systems. The clamp jaw has a 42mm opening, providing enough clearance for many individual power conductors and cables encountered during electrical maintenance.

In addition to AC current, the UT205E functions as a general digital multimeter. It measures AC and DC voltage up to 1000V, with DC voltage accuracy of ±(0.5%+5) and AC voltage accuracy of ±(1.2%+3). Resistance can be measured up to 60MΩ, while capacitance measurement extends to 60mF. The meter also supports frequency and duty-cycle measurements, as well as diode and continuity testing.

The instrument uses a 6000-count display and supports True RMS measurement, providing an effective way to measure non-sinusoidal AC waveforms compared with average-responding meters. It also incorporates NCV (Non-Contact Voltage) detection with multi-segment visual indication and an audible/visual alarm, allowing technicians to perform a preliminary check for the presence of AC voltage without making direct electrical contact.

For field use, the UT205E includes practical functions such as automatic ranging, data/function retention, automatic backlight, flashlight, and automatic power-related functions. Its display measures 43 × 45mm, while the instrument body measures approximately 272 × 81 × 43.5mm and weighs around 465g. It operates from three 1.5V R03 batteries.

The UT205E is rated to CAT III 1000V / CAT IV 600V and is certified under the applicable UNI-T product certifications, including CE, UKCA, and cETLus. These ratings make it appropriate for a range of professional electrical measurement environments when used within the specified measurement limits and safety procedures.

With its combination of 1000A AC current capability, True RMS measurement, 6000-count resolution, 1000V voltage measurement, NCV detection, and 42mm jaw opening, the UNI-T UT205E Digital Clamp Meter is a practical instrument for electricians, maintenance technicians, service engineers, and industrial electrical troubleshooting.

Features

• 1000A AC current measurement

• True RMS measurement

• 6000-count digital display

• AC/DC voltage measurement up to 1000V

• Resistance measurement up to 60MΩ

• Capacitance measurement up to 60mF

• Frequency and duty-cycle measurement

• NCV non-contact voltage detection

• 42mm clamp-jaw opening

• Auto-ranging function

• Automatic backlight

• Flashlight function

• Continuity and diode testing

• Data/function retention

• CAT III 1000V / CAT IV 600V safety rating

Specifications

Specifications are based on UNI-T's official UT200 Series documentation.

Applications

• Industrial electrical maintenance

• Electrical panel and distribution system inspection

• AC current measurement in power circuits

• Motor and machinery electrical troubleshooting

• HVAC electrical maintenance

• Electrical installation testing

• Voltage and continuity checks

• Cable and conductor current measurement

• Workshop and service-center diagnostics

• General electrical troubleshooting
