Key Features:

• Comprehensive Measurement Functions: Capable of measuring AC/DC voltage and current, resistance, capacitance, inductance, frequency, temperature, diodes (LED), thyristors (SCR), and circuit continuity, making it a versatile tool for various applications. ​yildirimelektronik.com+7Amazon+7TEquipment+7

• High-Resolution Display: Features a 3.8-digit display with a maximum reading of 5999, providing clear and precise readings. The large, backlit LCD enhances readability in different lighting conditions. ​TEquipment+4instruments.uni-trend.com+4UNI-T Instruments+4

• True RMS Measurement: Ensures accurate readings of AC signals, including non-sinusoidal waveforms, which is essential for precise analysis in complex electrical systems. ​TEquipment

• Wide Measurement Ranges:

  • DC Voltage: 600mV to 1000V​valuetesters.com+6Uni-Trend US+6Uni-Trend US+6

  • AC Voltage (True RMS): 600mV to 750V​Uni-Trend US+3Main Website+3Main Website+3

  • DC Current: 600µA to 20A​

  • AC Current (True RMS): 600µA to 20A​

  • Resistance: 600Ω to 60MΩ​Main Website+6valuetesters.com+6globaltestsupply.com+6

  • Capacitance: 6nF to 60mF​Main Website+5globaltestsupply.com+5valuetesters.com+5

  • Inductance: 600µH to 100H​Main Website+3Uni-Trend US+3Uni-Trend US+3

  • Frequency: 600Hz to 20MHz​valuetesters.com+4Uni-Trend US+4Uni-Trend US+4

  • Temperature: -40°F to 1832°F ​Uni-Trend US+1Uni-Trend US+1

• Fast Measurement Rate: Offers a measurement rate of 2 to 3 readings per second, enhancing efficiency during testing procedures. ​Main Website+1Main Website+1

• Advanced Functions:

  • D/Q Parameter Measurement: Capable of measuring the dissipation factor (D) and quality factor (Q) for capacitors and inductors, providing deeper insights into component characteristics. ​

  • Extreme Value and Reference Value Operations: Includes maximum, minimum, and relative value measurements, aiding in statistical analysis and comparative assessments. ​Uni-Trend US+2Main Website+2Main Website+2

• USB Connectivity: Equipped with a USB interface, allowing seamless connection to PC software for data logging, analysis, and remote control, facilitating efficient data management. ​Main Website

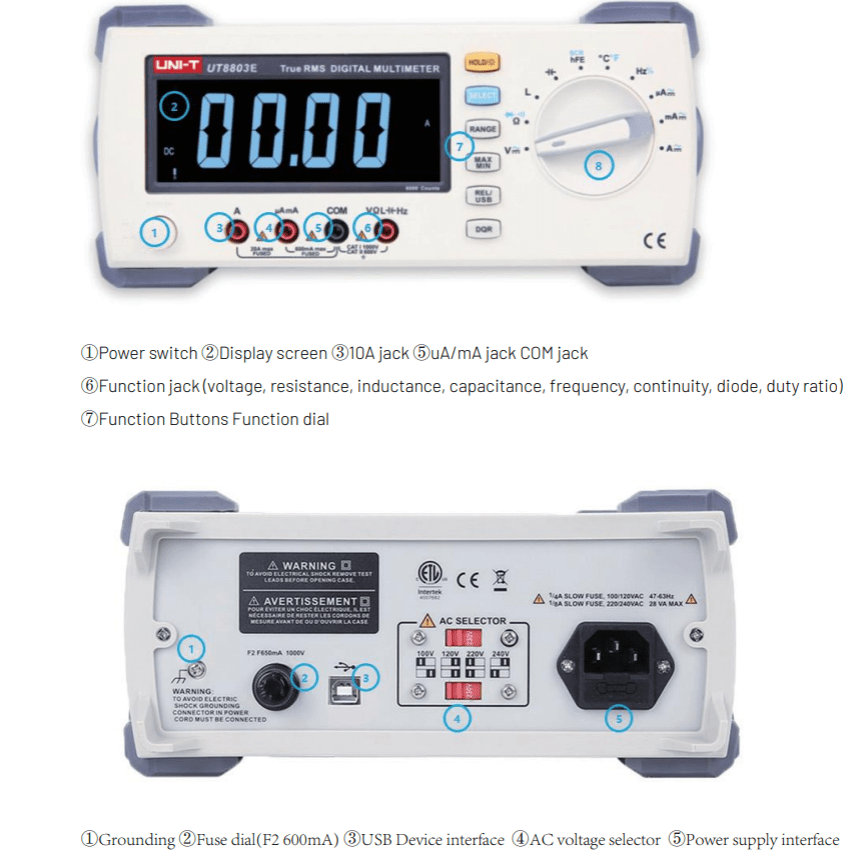

• Robust and User-Friendly Design: Built with a durable casing suitable for benchtop use, featuring an intuitive interface with a rotary switch and clearly labeled buttons for straightforward operation. ​

Applications:

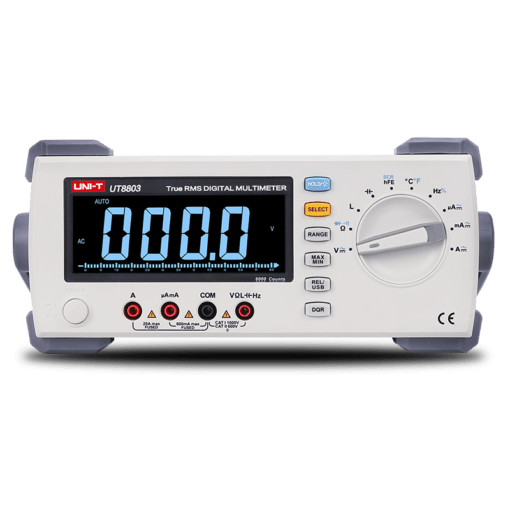

The UNI-T UT8803E is ideal for a wide range of applications, including:​

• Electronic Circuit Design and Testing: Accurately measure voltage, current, and component values during the development and troubleshooting of electronic circuits.​

• Electrical Equipment Maintenance: Perform routine checks and diagnostics on electrical devices to ensure optimal performance and safety.​

• Educational Laboratories: Serve as a reliable instrument for teaching and experimentation in academic settings.​

• Manufacturing Quality Control: Verify the electrical parameters of products to maintain high-quality standards in production lines.​

In summary, the UNI-T UT8803E combines precision, versatility, and user-friendly features, making it an essential tool for professionals and enthusiasts seeking reliable and comprehensive measurement capabilities in a benchtop digital multimeter.
