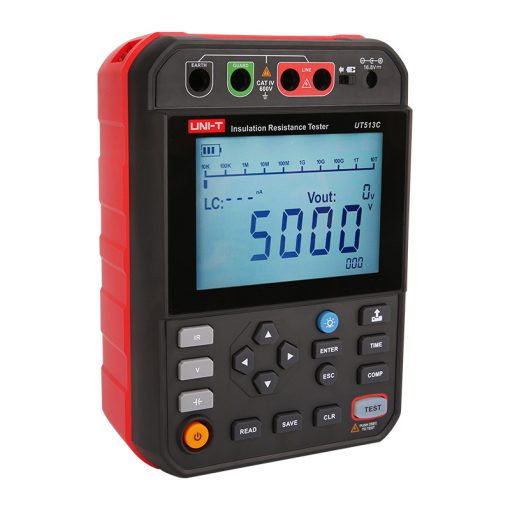

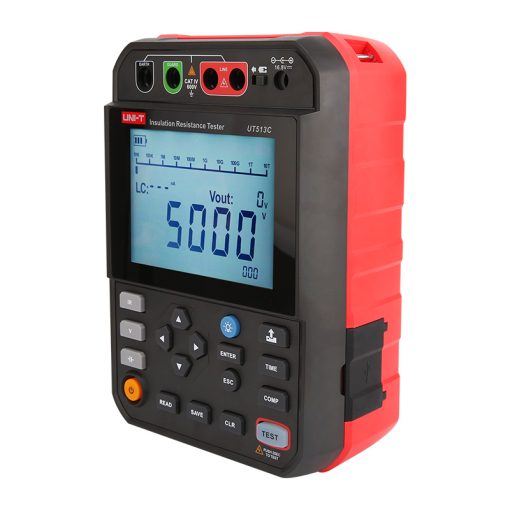

UNI-T UT513C 5kV Insulation Resistance Testers
In Stock
Categories: UNI-T
Description
Key Features & Benefits
1. High-Voltage Insulation Testing
-
5kV test voltage (with 250V/500V/1kV/2.5kV/5kV ranges)
-
0.01MΩ–5TΩ measurement range (±3% accuracy)
-
PI (Polarization Index) & DAR (Dielectric Absorption Ratio) for insulation health analysis
2. Advanced Safety & Reliability
-
CAT IV 600V safety rating (IEC 61010)
-
Auto discharge function for safe operation
-
Live circuit detection & warning
3. Smart Operation & Data Management
-
Large backlit LCD with analog bargraph
-
Data hold & MAX/MIN recording
-
USB data export (PC software included)
4. Rugged & Portable Design
-
IP54 protection (dust/water resistant)
-
Lightweight (2.5kg) with ergonomic handle
-
Long battery life (8+ hours continuous use)
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Voltage | 250V/500V/1kV/2.5kV/5kV |
| Insulation Range | 0.01MΩ–5TΩ |
| Accuracy | ±3% (0.01MΩ–10GΩ), ±5% (>10GΩ) |
| PI/DAR Measurement | Yes (1–9999) |
| Safety Standard | CAT IV 600V (IEC 61010) |
| Power Supply | 8× AA batteries (or AC adapter) |
| Dimensions | 280×250×150mm |
| Weight | 2.5kg (with battery) |
Package Includes
-
UT513C Main Unit
-
Test Leads (Red/Black)
-
Alligator Clips
-
AC Adapter (Optional)
-
User Manual
-
Carrying Case
Why Choose the UT513C?
✅ 5kV testing capability for industrial applications ✅ PI/DAR analysis for predictive maintenance ✅ CAT IV safety for live environments ✅ Portable & user-friendly for field use
Compliant with: IEC 61557, IEEE 43
Ensure electrical safety—order your UT513C today! ⚡
