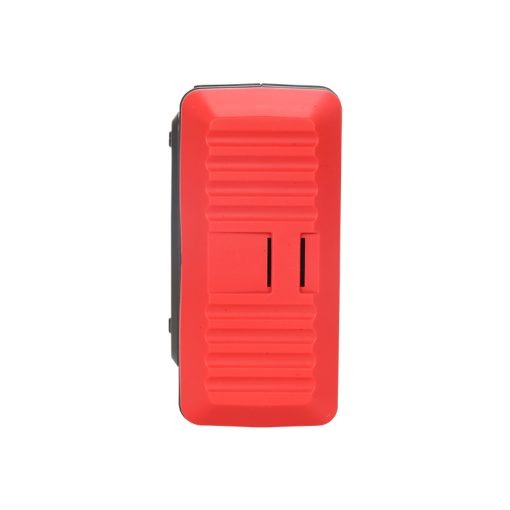

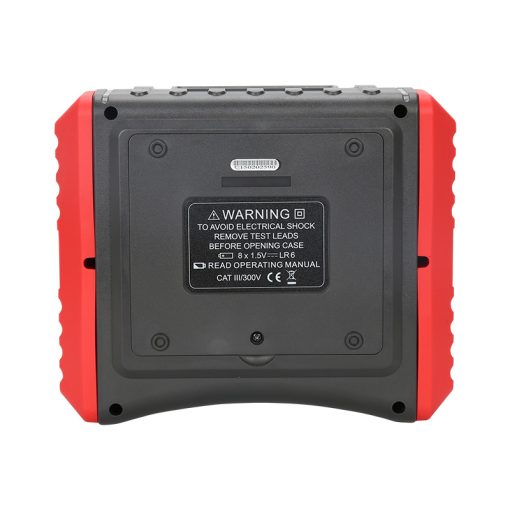

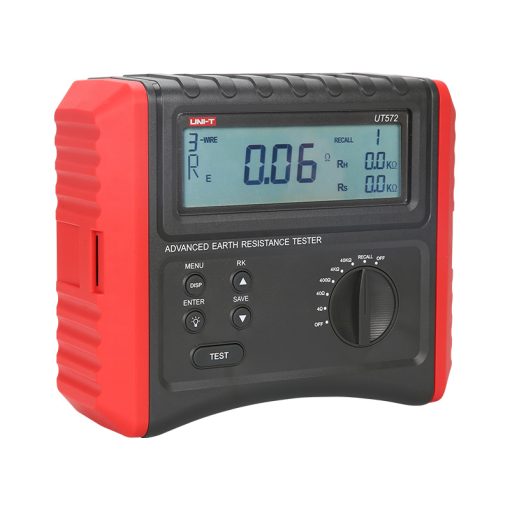

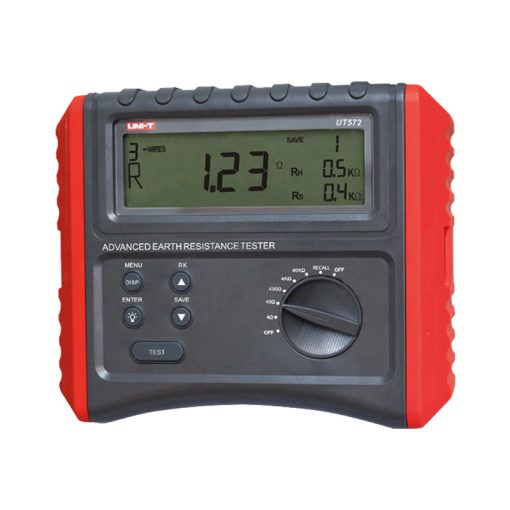

UNI-T UT572 Advanced Earth Resistance Tester
In Stock
Categories: UNI-T
Description
Key Features & Benefits
1. Ultra-Precise Earth Resistance Measurement
-
Wide range: 0.001Ω–30kΩ (±1% accuracy)
-
4-pole method (eliminates lead resistance errors)
-
Noise filtering (128Hz automatic anti-interference)
2. Advanced Soil Resistivity Testing
-
4-pole Wenner/Schlumberger methods
-
Depth profiling (1m–30m analysis)
-
Automatic calculation (ρ = 2πaR)
3. Smart & User-Friendly
-
Large backlit LCD with graphical guidance
-
Data logging (999 records) & USB export
-
Programmable alarms for pass/fail thresholds
4. Rugged & Safe for Field Use
-
CAT IV 600V safety rating
-
IP54 protection (dust/water resistant)
-
Auto discharge after high-voltage tests
5. Multi-Functional Testing
-
Ground voltage detection (0–100V AC)
-
Stake resistance measurement
-
Continuity testing (0.001Ω–300Ω)
Technical Specifications
| Parameter | Specification |
|---|---|
| Earth Resistance | 0.001Ω–30kΩ (±1%) |
| Soil Resistivity | 0.01Ωm–9999kΩm |
| Test Current | 2mA/20mA (auto) |
| Test Frequency | 128Hz (auto anti-noise) |
| Voltage Detection | 0–100V AC |
| Safety Standard | CAT IV 600V (IEC 61010) |
| Power Supply | 8× AA batteries (30h) |
| Dimensions | 320×275×170mm |
| Weight | 2.5kg (with battery) |
Package Includes
-
UT572 Main Unit
-
4× Test Probes (20cm/50cm)
-
5m/10m/20m Test Leads
-
Alligator Clips
-
Carrying Case
-
USB Cable & Software
-
User Manual
Why Choose the UT572?
✅ Lab-grade accuracy (0.001Ω resolution) ✅ 4-pole professional method (no measurement errors) ✅ Soil resistivity mapping for optimal grounding design ✅ CAT IV 600V safety for live environments
Compliant with: IEC 61557-5, IEEE 81, BS EN 62305
Ensure perfect grounding—order your UT572 today! ⚡
