Overview

The UNI-T UT343D is a high-performance digital coating thickness gauge designed to measure the thickness of coatings on both ferrous and non-ferrous materials. Whether you're in automotive inspection, manufacturing, or quality control, this device offers accuracy and efficiency for your coating assessments.

Description

Key Features:

Dual Material Compatibility: Measures coatings on ferrous (iron-based) and non-ferrous (non-magnetic) metals.bcscalibration.ie+5armotec.ps+5YouTube+5
High Accuracy: Provides precise measurements with an accuracy of ±(3%H + 1)µm.TME+6Cool Tools HVAC-R+6bcscalibration.ie+6
Wide Measurement Range: Capable of measuring coating thickness from 0 to 1250µm.Cool Tools HVAC-R+5TME+5armotec.ps+5
High Resolution: Offers a resolution of 0.1µm for readings between 0–99.9µm and 1µm for readings between 100–1250µm.Amazon+4bcscalibration.ie+4Unitek Technologies+4
Measurement Modes: Supports single point, continuous, and average measurements, with options to display maximum, minimum, or average values.bcscalibration.ie+3Amazon+3Unitek Technologies+3

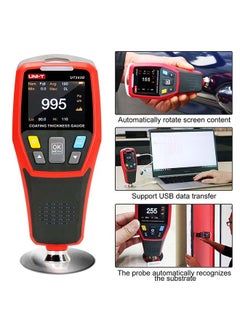

User-Friendly Display: Features a 2.0-inch TFT LCD screen with 320 x 240 pixels, auto-rotatable for convenience.Cool Tools HVAC-R+4meters.uni-trend.com+4bcscalibration.ie+4
Quick Test Mode: Allows users to set a desired thickness range, with audio and LED alarms to indicate whether the coating falls within the preset limits.meters.uni-trend.com+1armotec.ps+1
Data Storage: Capable of storing up to 500 measurement records for later analysis.armotec.ps+1meters.uni-trend.com+1
PC Connectivity: Includes USB communication for data transfer and analysis using the provided PC software.bcscalibration.ie+4meters.uni-trend.com+4armotec.ps+4
Additional Features: Auto power-off function, low battery indication, and unit conversion capabilities.Cool Tools HVAC-R+1meters.uni-trend.com+1

📊 Specifications:

Parameter	Specification
Measuring Range	0–1250µm
Accuracy	±(3%H + 1)µm
Resolution	0.1µm (0–99.9µm); 1µm (100–1250µm)
Measurement Method	Single/Continuous
Measurement Mode	Max/Min/Avg
Metal Type	Ferrous/Non-ferrous
Display Type	2.0-inch TFT LCD (320 x 240 pixels)
Auto Rotatable Screen	Yes
Quick Test Mode	Yes
Data Storage	500 records
USB Communication	Yes
Auto Power Off	Yes
Low Battery Indication	Yes

📦 What's Included:

1 x UT343D Coating Thickness Gauge
PC Software & USB Cable
User Manual
12-Month Warranty

🛠️ Ideal Applications:

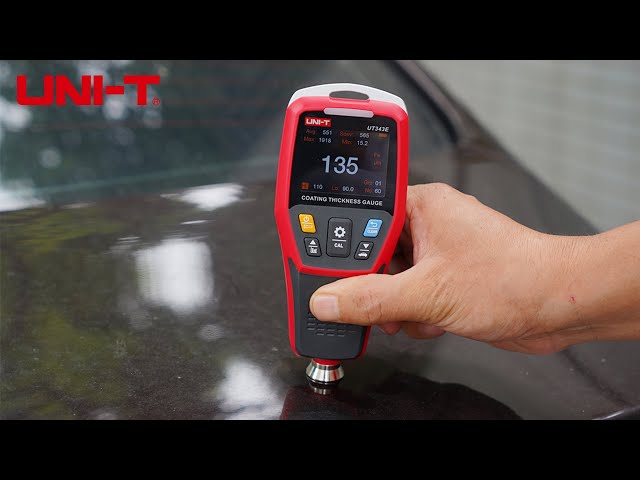

Automotive Industry: Assessing paint thickness for quality control and detecting repainted areas.
Manufacturing: Ensuring consistent coating thickness in production processes.
Quality Control: Verifying coating specifications and compliance with industry standards.
Research & Development: Conducting material studies and experiments involving coated surfaces.

💡 Why Choose the UNI-T UT343D?

The UT343D combines advanced measurement capabilities with user-friendly features, making it an essential tool for professionals requiring accurate and reliable coating thickness measurements. Its dual-material compatibility, high resolution, and data analysis options ensure that you can perform thorough assessments with confidence.
