UNI-T UT303A+ Infrared Thermometer

Product Description

The UNI-T UT303A+ Infrared Thermometer is a professional non-contact temperature measurement instrument designed for fast and accurate surface temperature inspection in electrical maintenance, industrial equipment servicing, HVAC systems, automotive applications, and general troubleshooting. By detecting infrared energy emitted from a target surface, the UT303A+ allows technicians to measure temperature without physical contact, making it useful for hot, moving, energized, or difficult-to-reach components.

The UT303A+ provides a wide infrared temperature measurement range of -32°C to 800°C (-25.6°F to 1472°F), covering a broad range of routine maintenance and industrial inspection requirements. Its 30:1 distance-to-spot ratio (D) allows users to measure smaller target areas from a greater distance compared with infrared thermometers with lower optical ratios. The instrument also provides a fast response time of approximately 250ms, allowing quick temperature checks during field inspections.

The thermometer features adjustable emissivity from 0.1 to 1.0, allowing the user to adapt the measurement setting to different surface materials. Correct emissivity selection is particularly relevant when measuring surfaces with different infrared emission characteristics, helping the instrument provide more appropriate temperature readings across a wider range of applications.

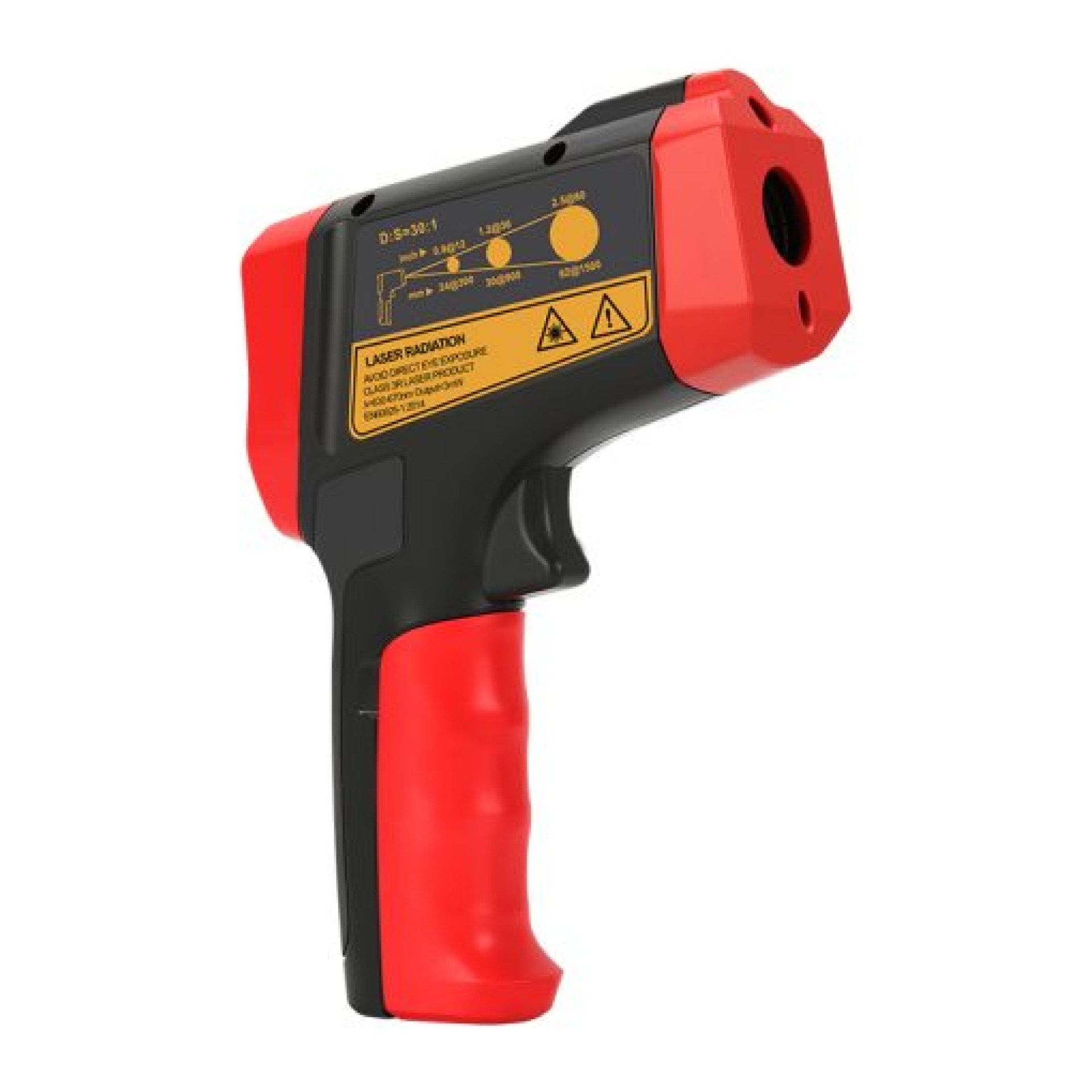

For target indication, the UT303A+ uses a Class 2 laser pointer with a wavelength of 630–670nm and laser power below 1mW. The instrument operates over an 8–14μm spectral response range and provides MAX, MIN, AVG, and DIFF measurement modes. These functions allow technicians to monitor extreme values, calculate an average temperature, or determine temperature differences during inspection.

The UT303A+ also includes user-configurable visual and audible high/low temperature alarms, data hold, lock measurement, automatic power-off, low-battery indication, °C/°F selection, and an LCD backlight. The lock measurement function is useful when continuous temperature monitoring is required without repeatedly pressing the trigger. A tripod mounting hole is also provided for fixed-position measurements.

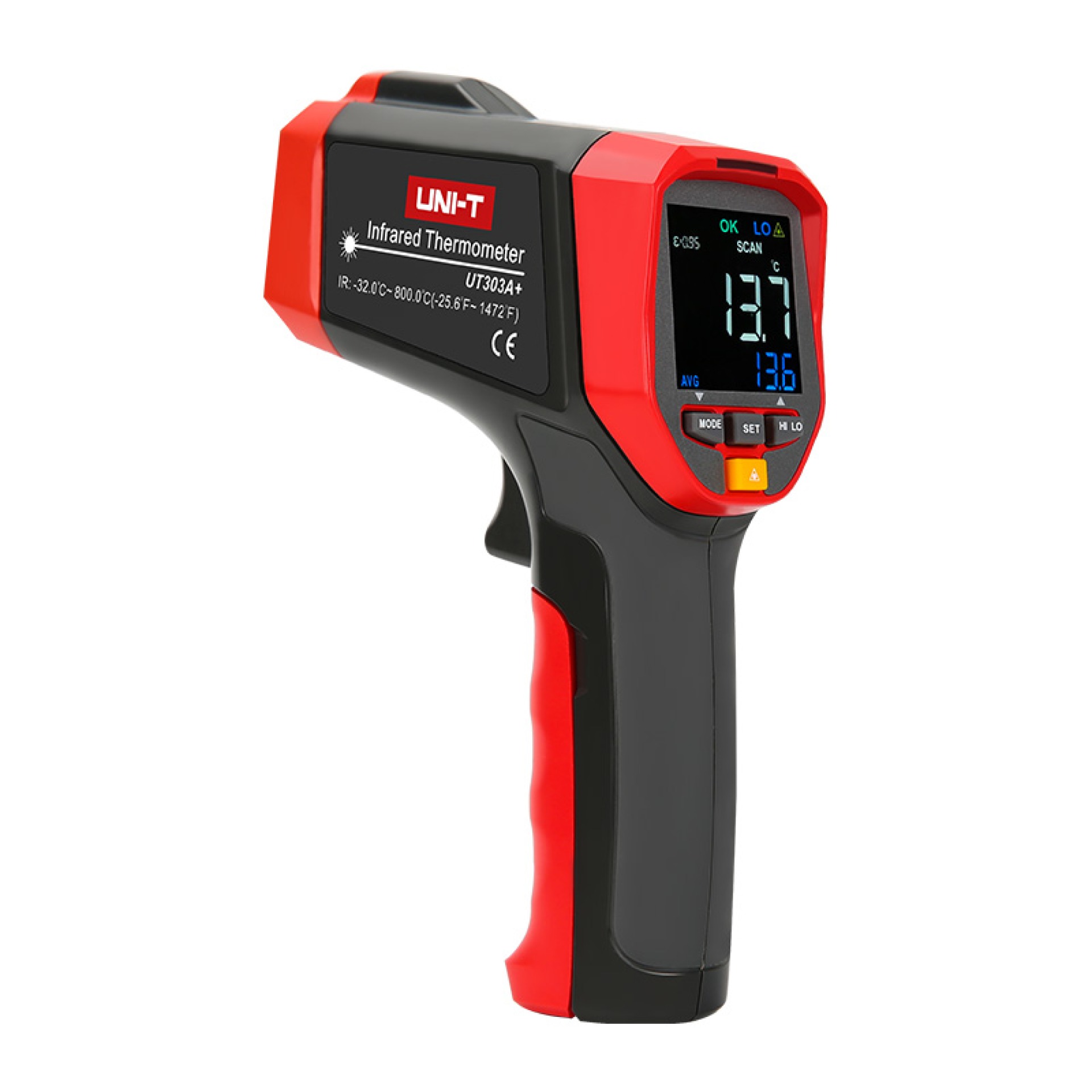

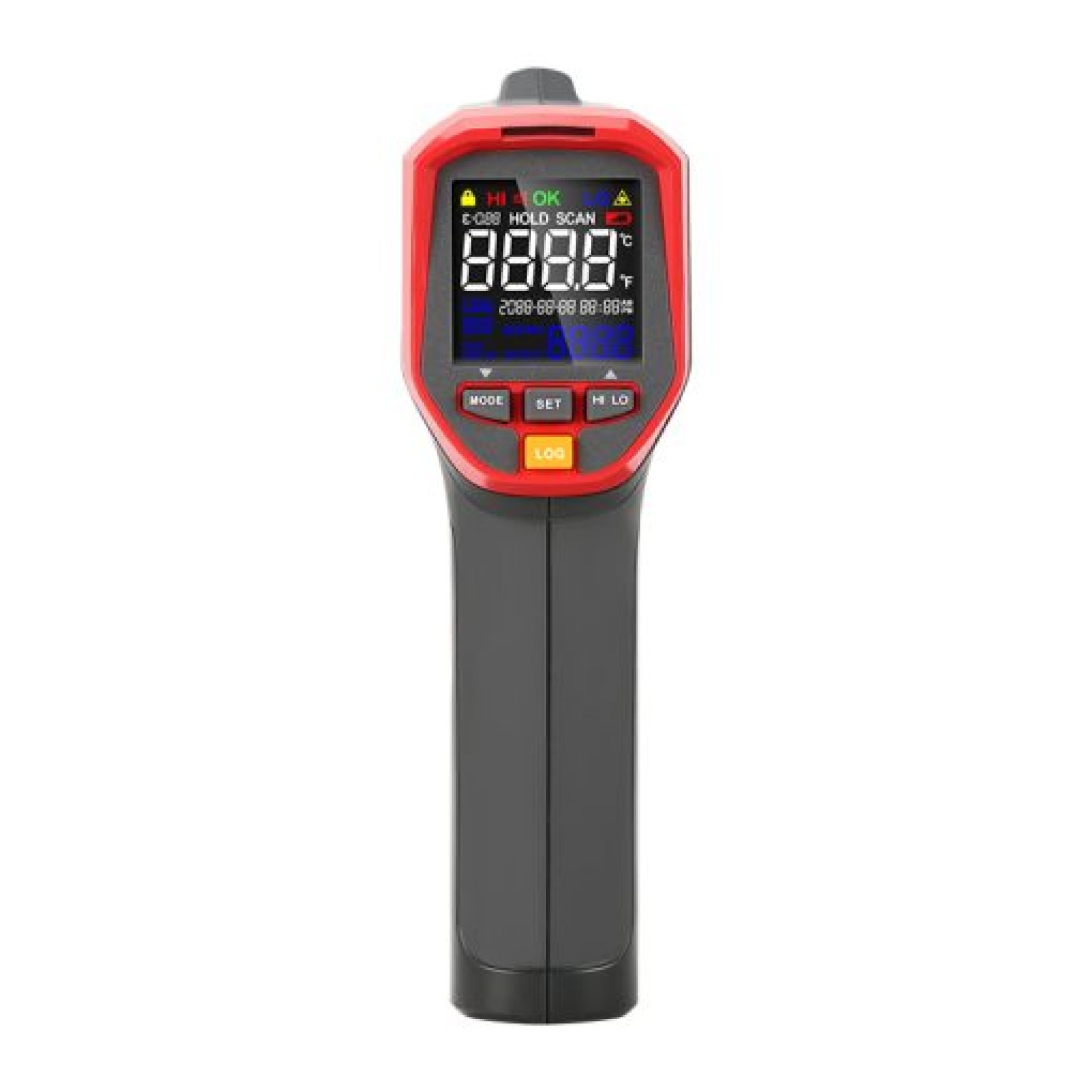

The thermometer features a high-contrast color EBTN display measuring approximately 35 × 35mm. It is powered by a 9V battery and has a compact handheld design measuring approximately 172 × 113.5 × 53mm, with a net weight of about 310g. The instrument is specified for operation from 0°C to 50°C and storage from -20°C to 60°C.

With its combination of a wide 800°C measurement range, 30:1 optical ratio, adjustable emissivity, fast response, configurable alarms, and multiple temperature analysis modes, the UNI-T UT303A+ Infrared Thermometer is suitable for technicians and engineers performing non-contact thermal inspections in electrical, mechanical, HVAC, automotive, and industrial environments.

Features

• Non-contact infrared temperature measurement

• Wide temperature range from -32°C to 800°C

• High 30:1 distance-to-spot ratio

• Adjustable emissivity from 0.1 to 1.0

• Temperature accuracy of ±1.5°C or ±1.5%

• Fast 250ms response time

• Class 2 laser target indication

• MAX / MIN / AVG / DIFF measurement modes

• User-defined high/low visual and audible alarms

• Data hold and lock measurement functions

• °C/°F selection and LCD backlight

• Automatic power-off and low-battery indication

• Tripod mounting hole

• High-contrast color EBTN display

Specifications

Specifications are based on UNI-T's official UT302+/UT303+ series documentation.

Applications

• Electrical panel and distribution equipment inspection

• Motor, pump, bearing, and machinery temperature checks

• HVAC and air-conditioning maintenance

• Automotive and vehicle inspection

• Industrial equipment preventive maintenance

• Electrical connection and component temperature inspection

• Mechanical troubleshooting

• Heating and thermal process inspection

• Workshop and field-service temperature measurements

• Inspection of hot or difficult-to-reach surfaces
