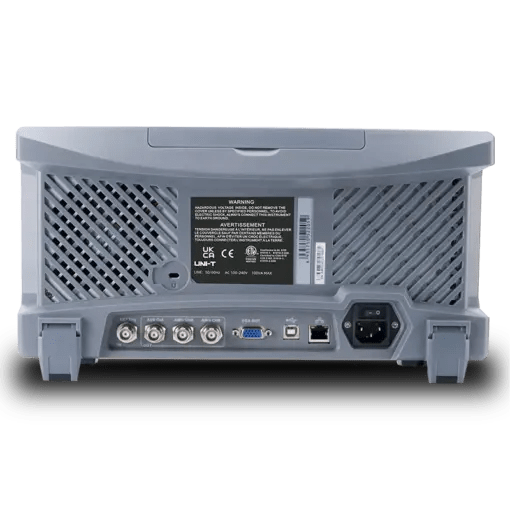

UNI-T UPO2102 Mixed-signal Oscilloscope 2-Channels 100MHZ

Key Features

1. High-Performance Signal Analysis

• 100MHz Bandwidth – Ideal for high-frequency signal measurements.

• 1GSa/s Real-Time Sampling Rate – Ensures detailed waveform capture.

• 2 Analog + 16 Digital Channels – Combines oscilloscope and logic analyzer functionality for mixed-signal debugging.

• Long Memory Depth (28Mpts) – Captures long-duration signals without loss of detail.

2. Large, User-Friendly Display

• 7-inch TFT-LCD (800×480 resolution) – Provides clear waveform visualization.

• Intuitive UI with Multi-Level Menu – Easy operation and quick access to functions.

3. Advanced Triggering & Decoding

• Multiple Trigger Modes (Edge, Pulse, Video, Slope, etc.) – Ensures precise signal capture.

• Serial Bus Decoding (I2C, SPI, UART, CAN) – Essential for embedded system debugging.

4. Connectivity & Portability

• USB Host & Device Ports – For data storage and PC connectivity.

• LAN & HDMI Output (Optional) – Remote control and screen expansion.

• Lightweight & Compact Design – Easy to carry for fieldwork.

5. Additional Features

• FFT (Frequency Domain Analysis) – For spectrum analysis.

• Waveform Recording & Playback – Helps in analyzing intermittent signals.

• Built-in Help System – Quick reference guide for users.

Applications

• Electronics Development & Troubleshooting

• Embedded System Debugging

• Education & Research

• Automotive & Industrial Electronics

Package Includes

• UPO2102 Oscilloscope

• 2x Passive Probes (100MHz)

• Power Cable

• USB Cable

• User Manual

Why Choose the UNI-T UPO2102?

The UPO2102 combines affordability with advanced features, making it a great choice for professionals and enthusiasts who need a reliable mixed-signal oscilloscope for analog and digital circuit analysis.

Order yours today and enhance your testing capabilities!
