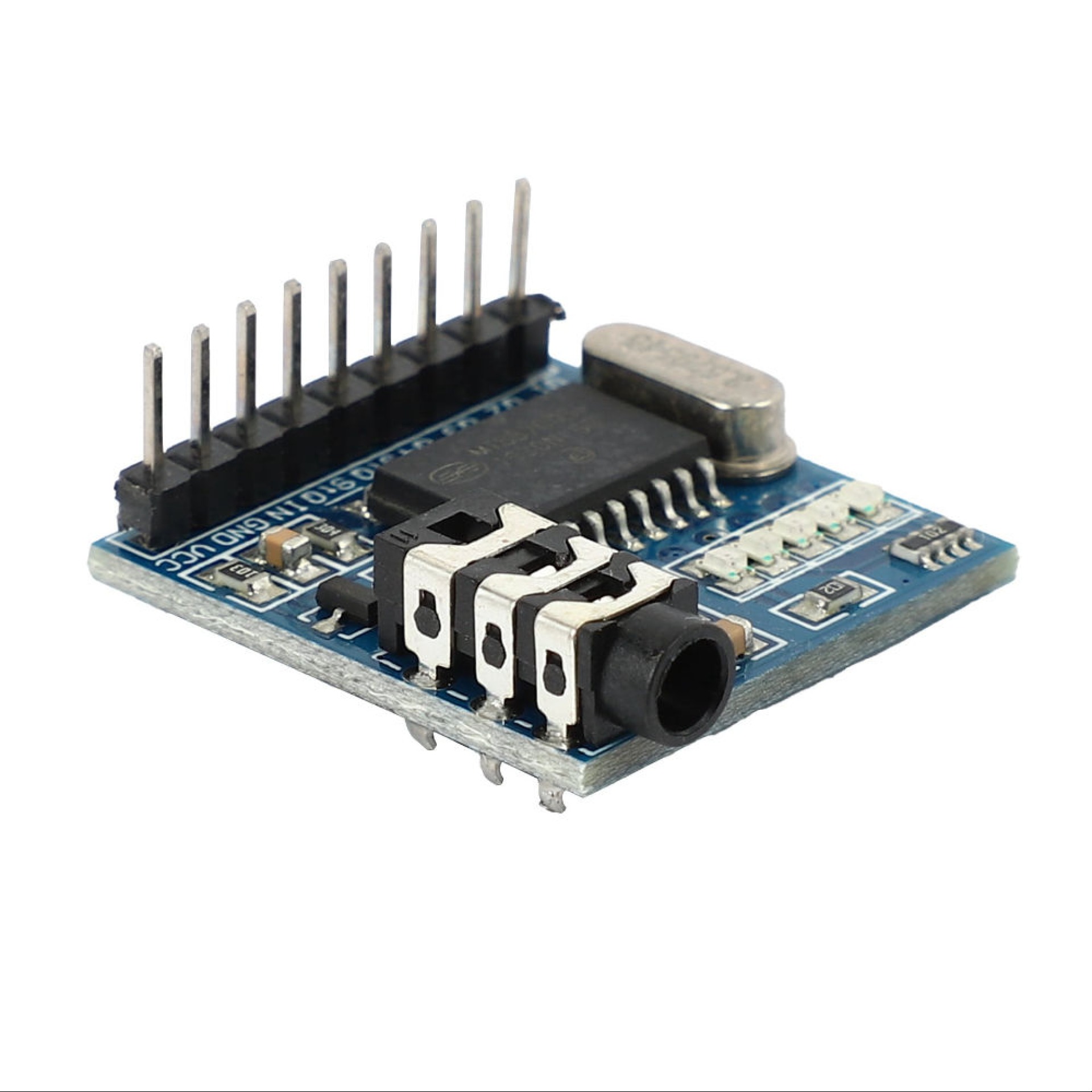

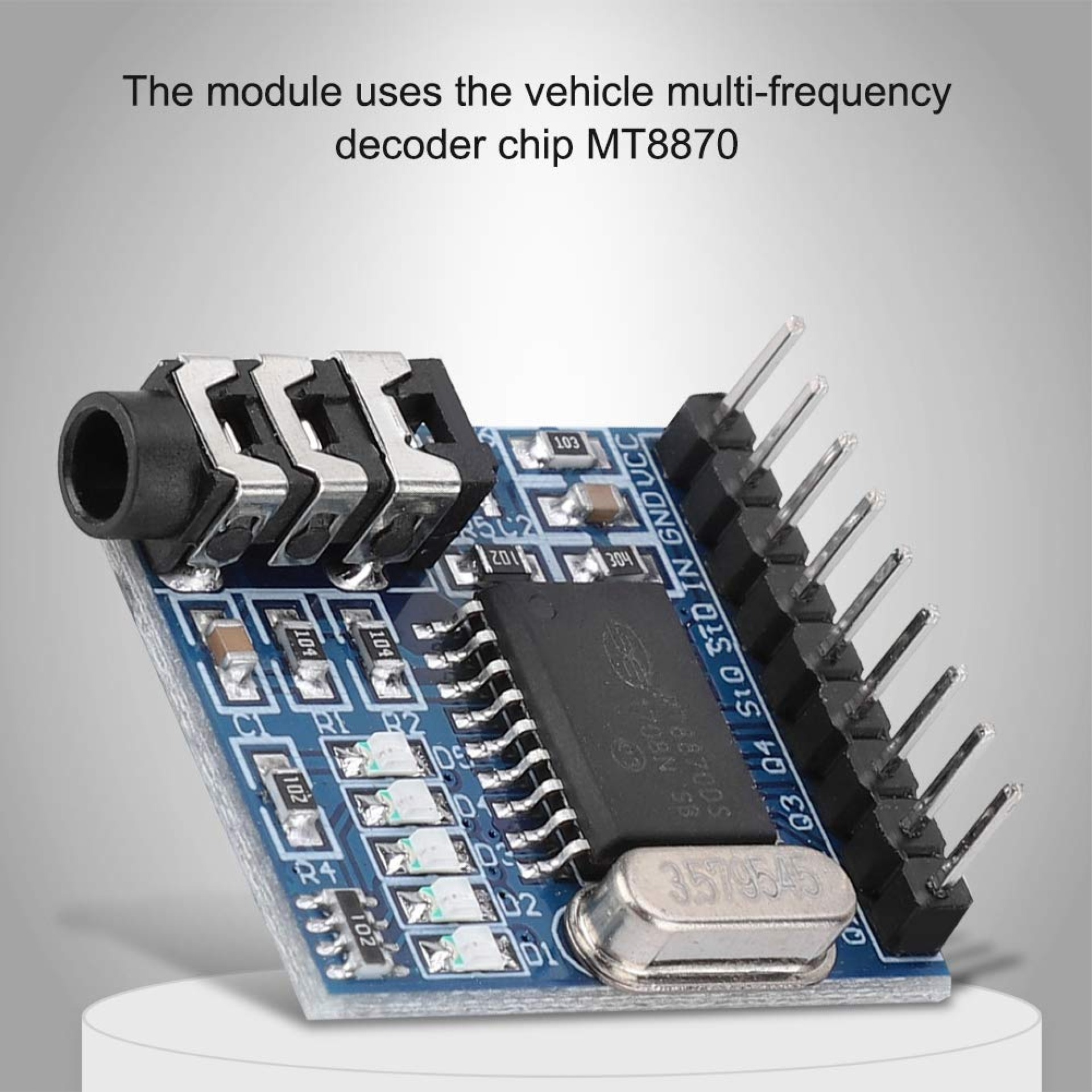

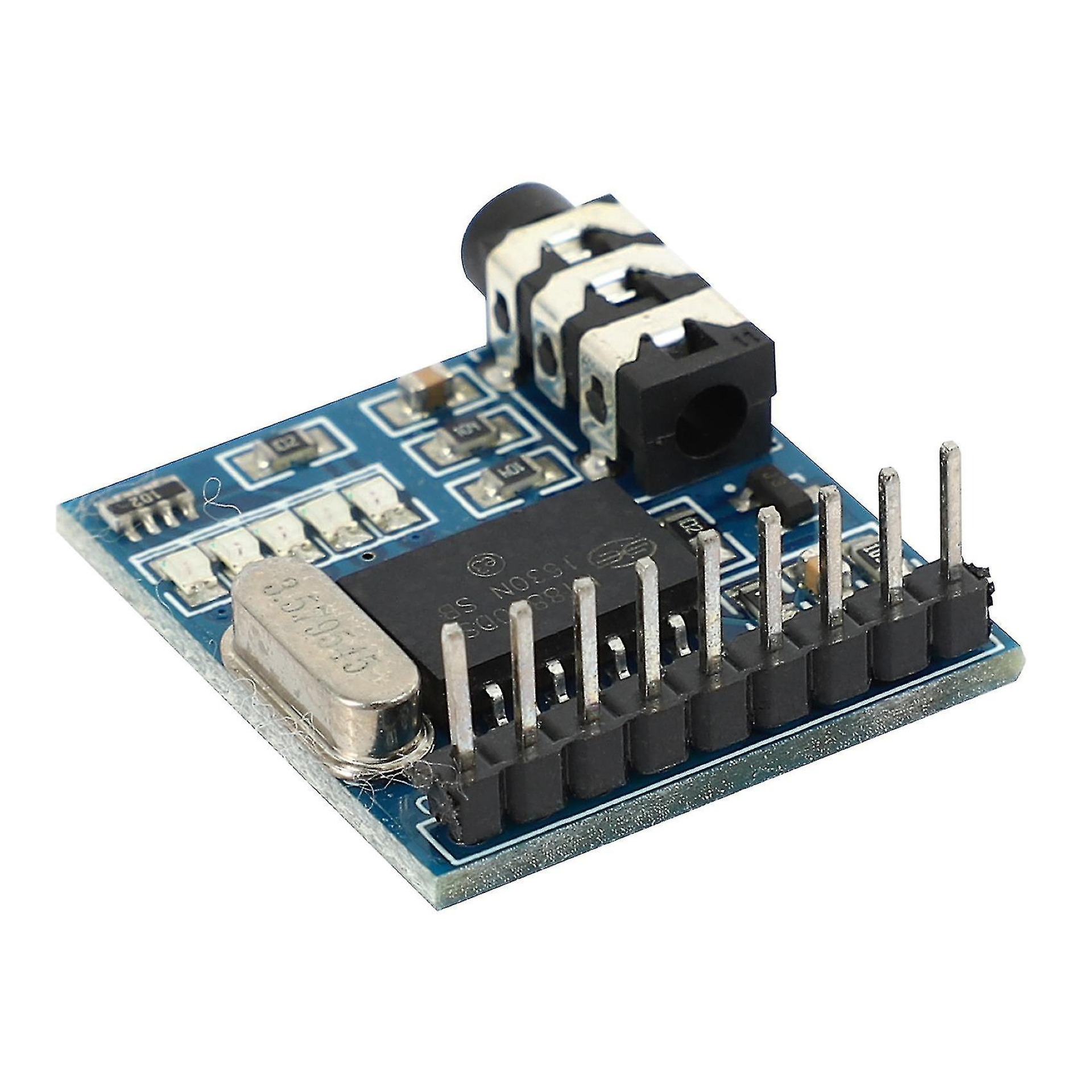

MT8870 DTMF Voice Decoding Module

The MT8870 DTMF Voice Decoding Module is a compact and high-performance audio tone decoder designed to detect and decode Dual Tone Multi-Frequency (DTMF) signals from telephones, mobile phones, and communication devices. Built around the trusted MT8870 integrated circuit, this module accurately converts DTMF tones into digital outputs, enabling remote control and communication-based automation systems.

DTMF technology is widely used in telephone dialing systems where each key press generates a unique combination of frequencies. The MT8870 module processes these tones and outputs a corresponding 4-bit digital signal that can be easily read by microcontrollers such as Arduino, ESP32, Raspberry Pi, PIC, and AVR systems.

This module includes onboard filtering and signal conditioning circuitry for stable and reliable decoding performance, even in environments with moderate audio noise. Its simple interface and compact PCB design make it ideal for hobbyists, students, and professionals working on communication and automation projects.

The MT8870 DTMF decoder module is commonly used in wireless control systems, telephone-operated devices, home automation, robotics, and security systems. It allows users to control electronic equipment remotely using standard phone keypad signals, making it a practical and cost-effective solution for remote operation applications.

Whether you are designing a remote switching system or learning about communication electronics, the MT8870 module delivers dependable performance, easy integration, and efficient signal processing.

Features:

• Accurate DTMF tone detection and decoding

• Based on reliable MT8870 decoder IC

• Converts telephone tones into digital outputs

• Built-in filtering for stable signal processing

• Compatible with Arduino, ESP32, and Raspberry Pi

• Compact and lightweight PCB module

• Low power consumption

• Easy integration into embedded systems

Specifications:

• Model: MT8870 DTMF Decoder Module

• Chipset: MT8870

• Operating Voltage: 5V DC

• Signal Input: DTMF audio tones

• Output Type: 4-bit digital binary output

• Frequency Support: Standard DTMF frequencies

• Interface: Digital output pins

• Mounting Type: PCB module

• Power Consumption: Low

Applications:

• Telephone remote control systems

• Home automation projects

• Wireless switching applications

• Security and access control systems

• Robotics and embedded systems

• Communication electronics learning projects

• Industrial remote operation systems
