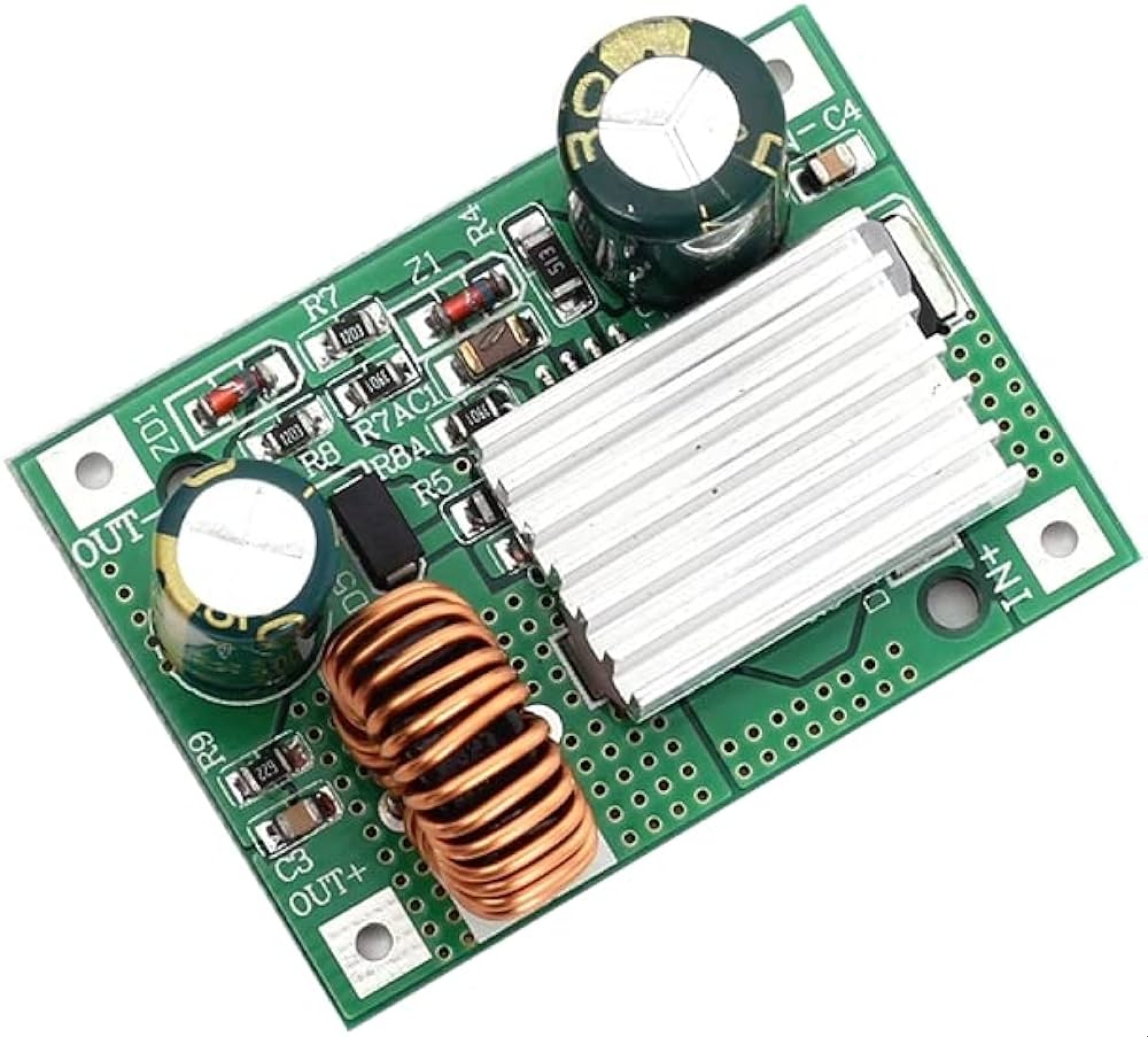

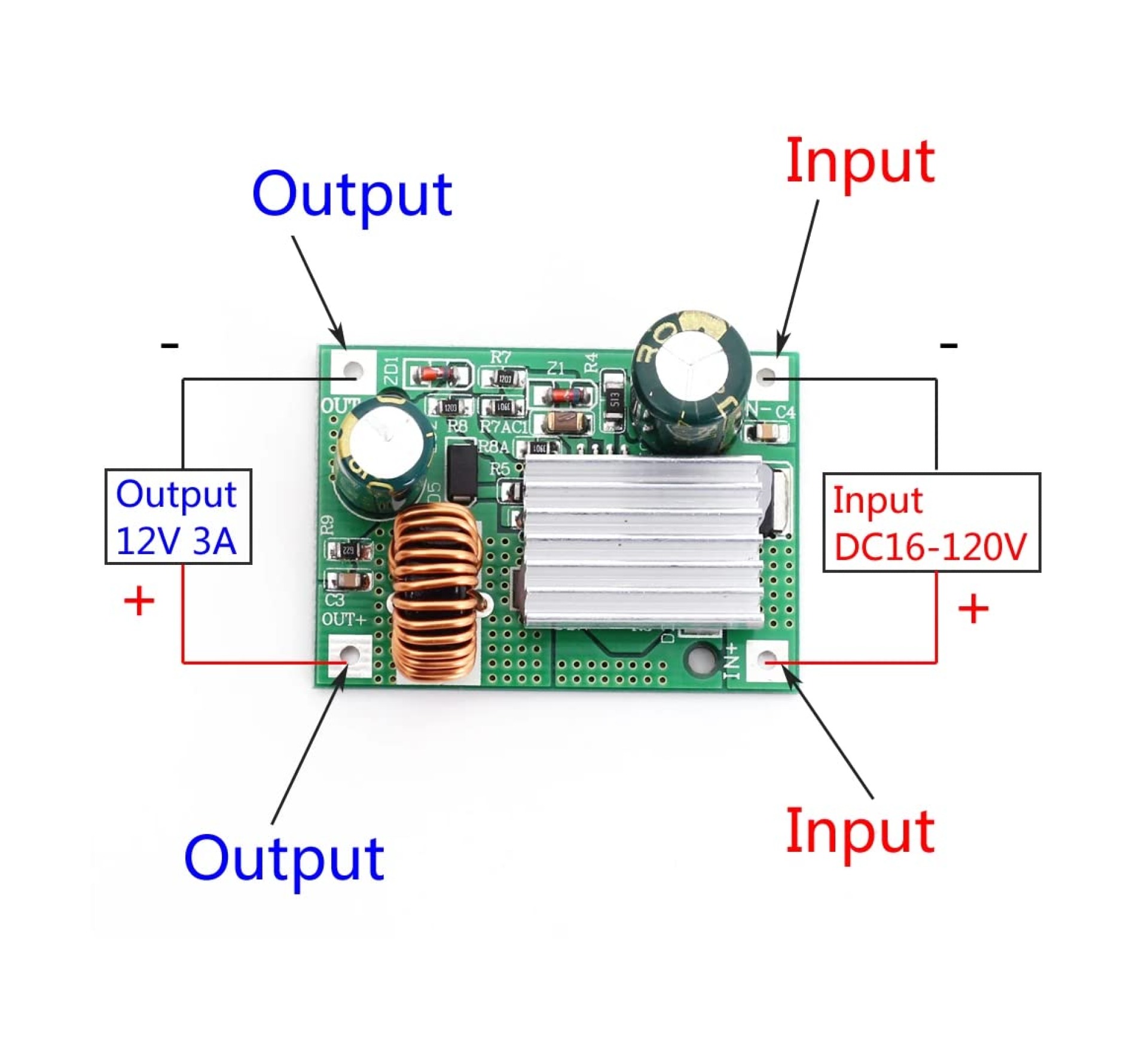

DC Step Down Module 16-120VDC to 12VDC 3A

This module uses buck (step-down) conversion technology, which efficiently reduces voltage while maintaining stable output and minimizing energy loss. It supports a very wide input voltage range (16V to 120V DC), making it highly versatile for various systems including electric vehicles, solar setups, and automation systems.

Despite the wide input range, the output remains fixed at 12V, ensuring compatibility with common electronics such as LED lights, routers, cameras, and control circuits. It can deliver up to 3A continuous current (36W), making it suitable for moderate power loads.

The module also includes built-in protection features like overcurrent, overvoltage, and short-circuit protection, ensuring safe and reliable operation even in demanding environments.

Features:

• Wide input voltage range: 16V to 120V DC

• Fixed and stable 12V output

• Output current up to 3A (36W max)

• High efficiency up to ~90–95%

• Built-in protection: overcurrent, overvoltage, short circuit

• Compact and durable design

• Low heat generation with passive cooling

• Screw terminals for easy wiring

Specifications:

• Input Voltage: 16V – 120V DC

• Output Voltage: 12V DC (fixed)

• Output Current: 3A (max)

• Output Power: Up to 36W

• Efficiency: 85% – 95%

• Conversion Type: Non-isolated buck converter

• Operating Temperature: -40°C to +85°C

• Dimensions: ~42 × 30 × 20 mm

• Cooling: Passive

Applications:

• Solar power systems

• Electric vehicles (EV auxiliary power)

• Battery-powered systems

• LED lighting and strips

• CCTV cameras and routers

• Industrial automation

• Robotics and embedded systems
