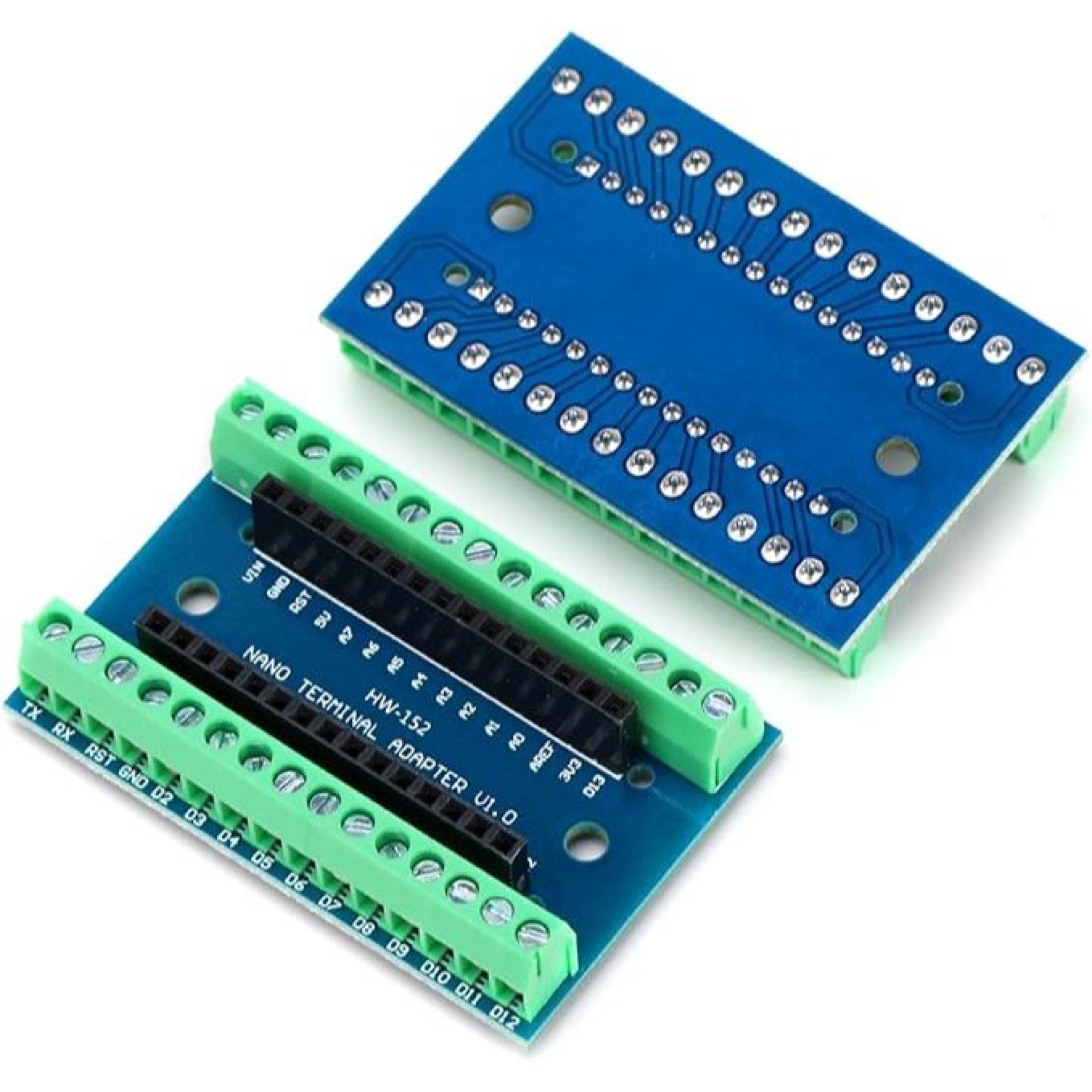

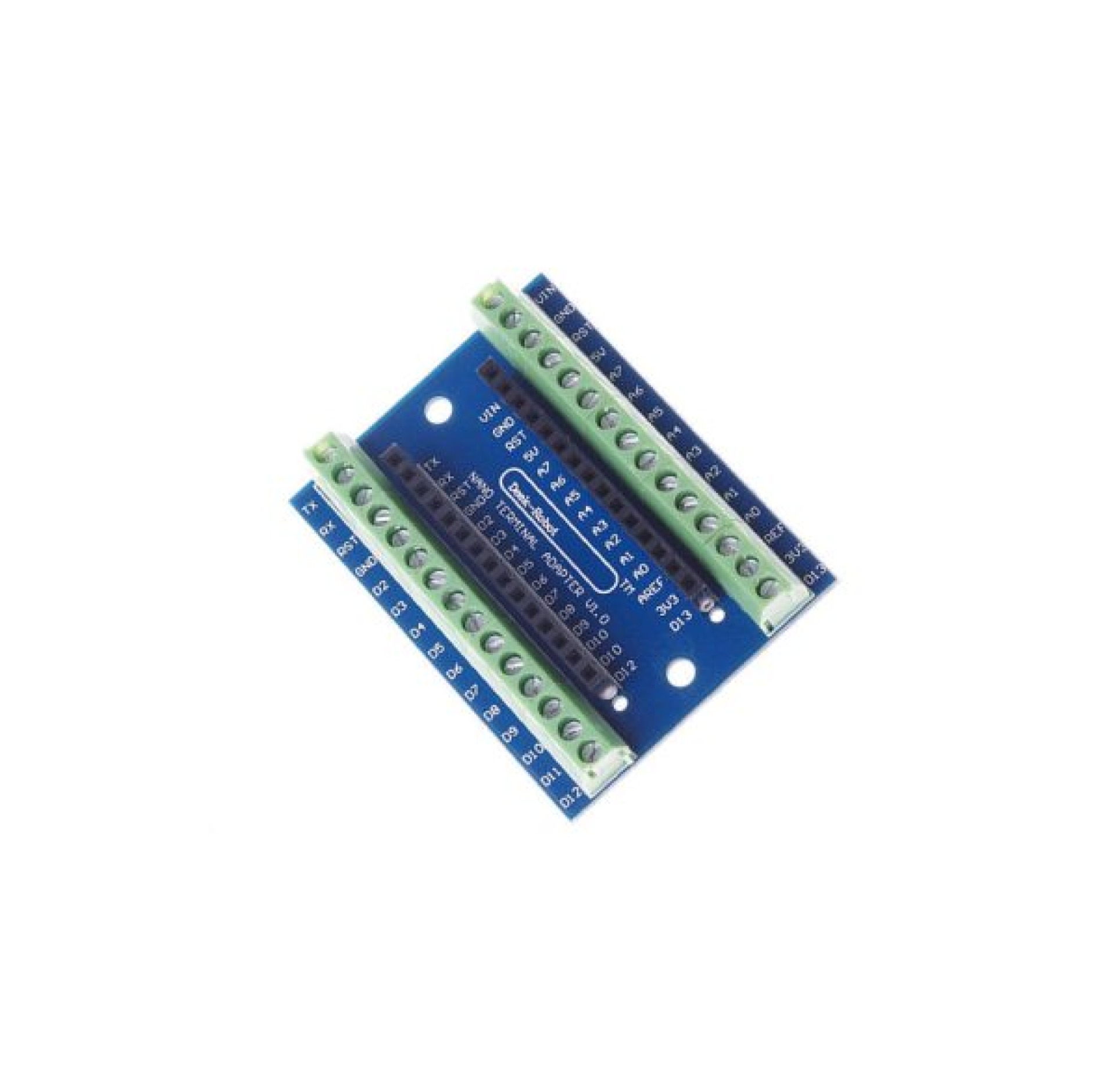

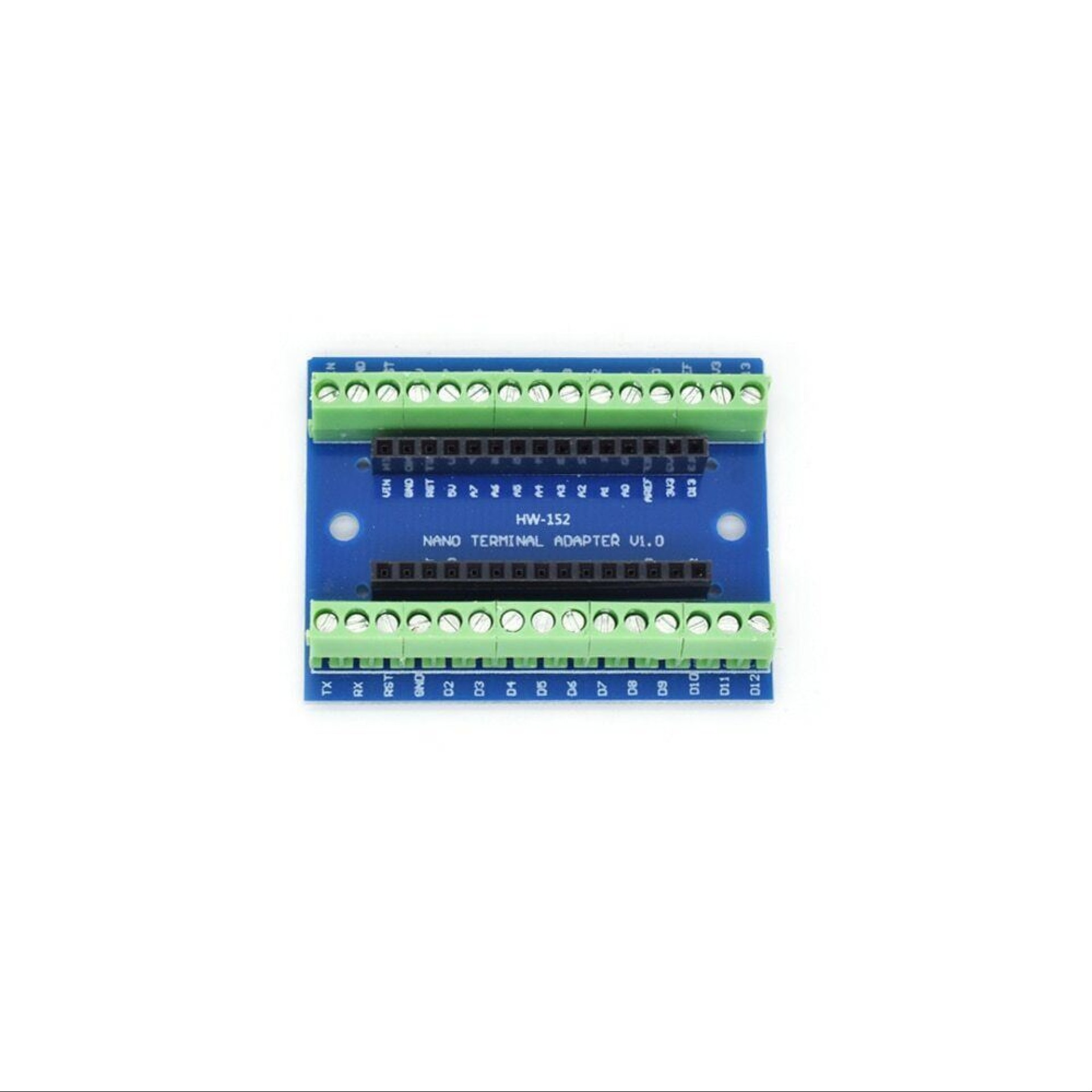

HW-152 Terminal Adapter Shield for Arduino Nano

HW-152 Terminal Adapter Shield for Arduino Nano

The HW-152 Terminal Adapter Shield is a practical expansion board designed to simplify wiring and improve connection reliability for Arduino Nano projects. This compact module converts all the pins of the Arduino Nano into easy-to-use screw terminals, eliminating the need for messy jumper wires or soldering. The HW-152 Terminal Adapter Shield is especially useful for prototyping, testing, and building permanent electronic systems.

By plugging the Arduino Nano directly into the shield, all digital, analog, and power pins become accessible through clearly labeled screw terminals. This allows users to securely connect wires using a screwdriver, ensuring stable and reusable connections—ideal for both beginners and professionals.

The HW-152 is built on a durable PCB with well-organized layout, making circuit assembly cleaner and more structured. Many versions also include helpful features such as a power indicator LED and a reset button, enhancing usability during development and debugging. Its compact design ensures it can fit easily into embedded systems, robotics, and automation projects.

This shield is fully compatible with standard Arduino Nano boards (including ATmega328P and CH340 variants), making it a versatile accessory for a wide range of applications. Whether you're building a prototype or deploying a final product, the HW-152 adapter helps create a more professional and reliable setup.

Features:

• Converts all Arduino Nano pins to screw terminals

• No soldering required for connections

• Clear pin labeling for easy wiring

• Secure and stable wire connections

• Compatible with all Arduino Nano versions

• Compact and durable PCB design

• Includes mounting holes for installation

• Optional power LED and reset button (varies by version)

Specifications:

• Model: HW-152

• Compatibility: Arduino Nano (all versions)

• Number of Terminals: ~30 screw terminals

• Terminal Type: Screw (3.5mm pitch typical)

• Board Material: FR4 PCB

• Dimensions: ~53mm × 18mm (varies slightly)

• Mounting: Through-hole mounting points

• Logic Voltage: 5V (based on Nano)

Applications:

• Arduino Nano prototyping

• Educational electronics projects

• Robotics and automation systems

• Sensor and module connections

• Industrial control interfaces

• DIY electronics and embedded systems
