Product Description

The FNIRSI LCR-ST2 Plus is a precision handheld LCR/ESR meter built for fast, accurate component testing on both surface-mount and through-hole electronics. As the enhanced version of the standard LCR-ST2, it keeps every core function of the original tweezer-style meter while adding a professional 4-wire Kelvin clip, extending its usefulness beyond small SMD parts to larger or leaded components that don't fit comfortably between tweezer tips.

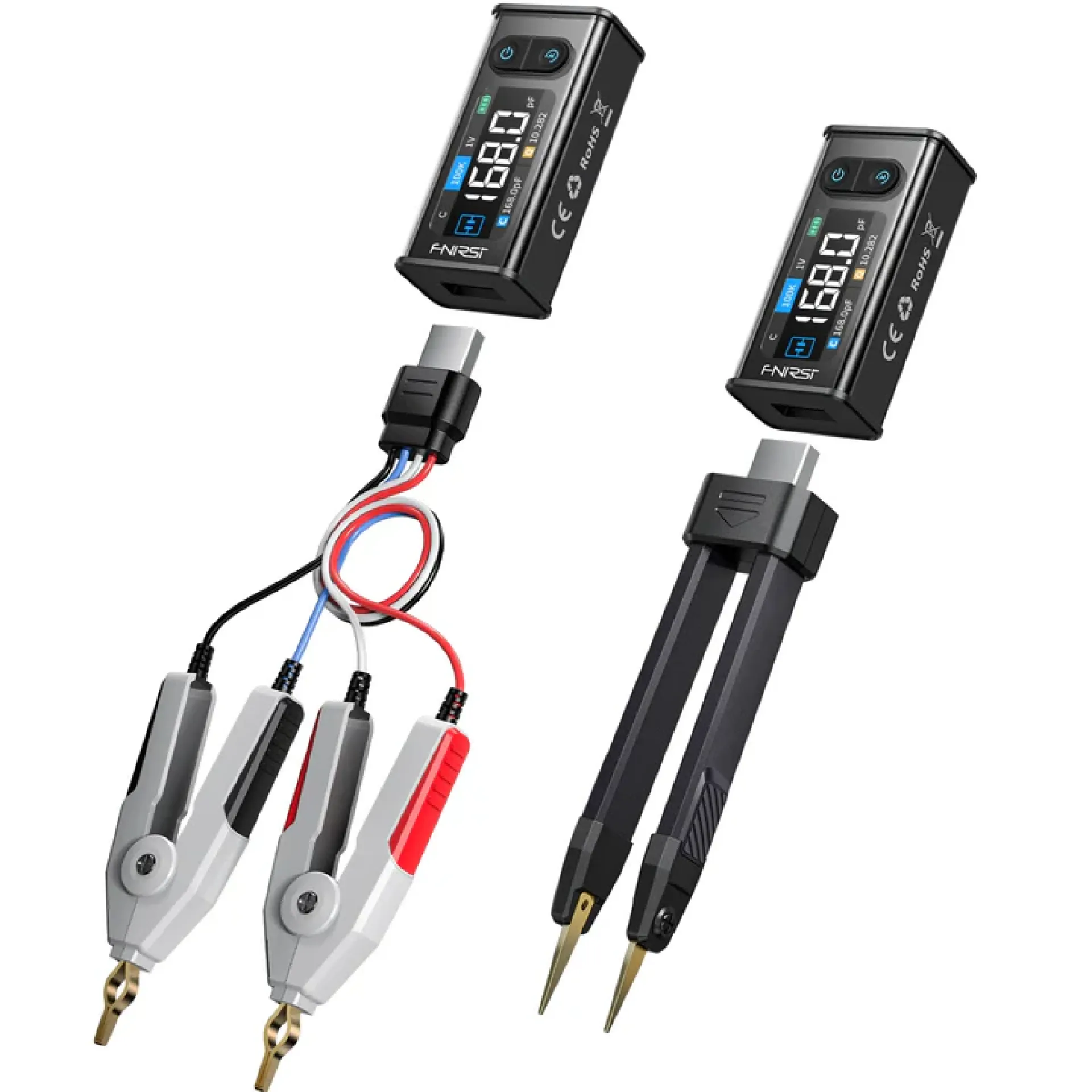

At the heart of the device is a true 2-in-1 measurement system: gold-plated straight and angled tweezer tips handle quick, one-handed testing of resistors, capacitors, and inductors directly on a populated board, while the included Kelvin clip provides four-wire measurement for components too large or too awkwardly placed for tweezer probing. This dual approach means a single tool can move between fine SMD diagnostic work and bulkier component testing without switching instruments.

Measurement flexibility is a core strength here. The LCR-ST2 Plus tests across five selectable frequencies, 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz, with four adjustable RMS test voltage levels (0.1V, 0.3V, 0.6V, and 1.0V), letting users match test conditions to the component being measured. Beyond basic capacitance, inductance, and resistance readings, the device reports a full set of secondary parameters, including ESR, D (dissipation factor), Q (quality factor), Z (impedance), X (reactance), and θ (phase angle), giving a much fuller picture of component health than a basic multimeter. A full-band sweep mode automatically scans the entire 100Hz–100kHz range, which is useful for spotting frequency-dependent behavior that a single fixed-frequency reading would miss.

Component identification is automatic. The meter detects whether it's connected to a resistor, capacitor, or inductor and selects the appropriate measurement mode without manual configuration, which speeds up repetitive testing during board-level repair or incoming-parts inspection. A smart sorting function adds OK/NG tolerance classification, useful for quickly screening batches of components against a target value during quality control or bulk parts sorting.

Results appear on a 1.47-inch HD color display that automatically rotates based on hand orientation, so the readout stays upright whether the tool is held left- or right-handed. Power comes from a rechargeable 300mAh lithium battery charged via USB Type-C, offering roughly three hours of continuous use per charge, and a magnetic housing design makes it easy to store or keep close at hand on a metal-surfaced workbench.

For repair technicians, R&D engineers, QC teams, and hobbyists who need dependable component verification without juggling multiple testers, the LCR-ST2 Plus combines tweezer-based speed with Kelvin-clip accuracy in a single portable instrument.

Features

• 2-in-1 design: precision tweezer tips plus 4-wire Kelvin clip

• Five selectable test frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

• Four adjustable RMS test voltage levels: 0.1V, 0.3V, 0.6V, 1.0V

• Multi-parameter readout: ESR, D, Q, Z, X, and θ

• Full-band automatic sweep across 100Hz–100kHz

• Automatic R/L/C component recognition

• Smart sorting mode with OK/NG tolerance classification

• 1.47-inch HD color display with automatic hand-orientation rotation

• Rechargeable 300mAh battery with USB Type-C charging

• Magnetic housing for convenient workbench storage

Specifications

• Model: FNIRSI LCR-ST2 Plus

• Measurement Modes: Tweezer tips (straight and angled) and 4-wire Kelvin clip

• Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

• Test Voltage Levels: 0.1V, 0.3V, 0.6V, 1.0V RMS

• Resistance Range: 10mΩ – 10MΩ

• Capacitance Range: 1pF – 22mF

• Inductance Range: 1µH – 10H

• Diode Test: ≤0.7V

• DC Voltage Measurement: ±30V

• Measured Parameters: ESR, D, Q, Z, X, θ

• Display: 1.47-inch HD color, auto-rotate

• Battery: 300mAh rechargeable lithium

• Charging Interface: USB Type-C

• Battery Runtime: Approximately 3 hours

Applications

• SMD component testing and board-level repair

• Through-hole and larger component measurement via Kelvin clip

• Electronics R&D and prototyping component verification

• QC line batch sorting of resistors, capacitors, and inductors

• Repair center diagnostics for faulty or out-of-tolerance parts

• Power rail voltage checking during troubleshooting

• Frequency-response analysis of passive components

• Educational and hobbyist electronics testing

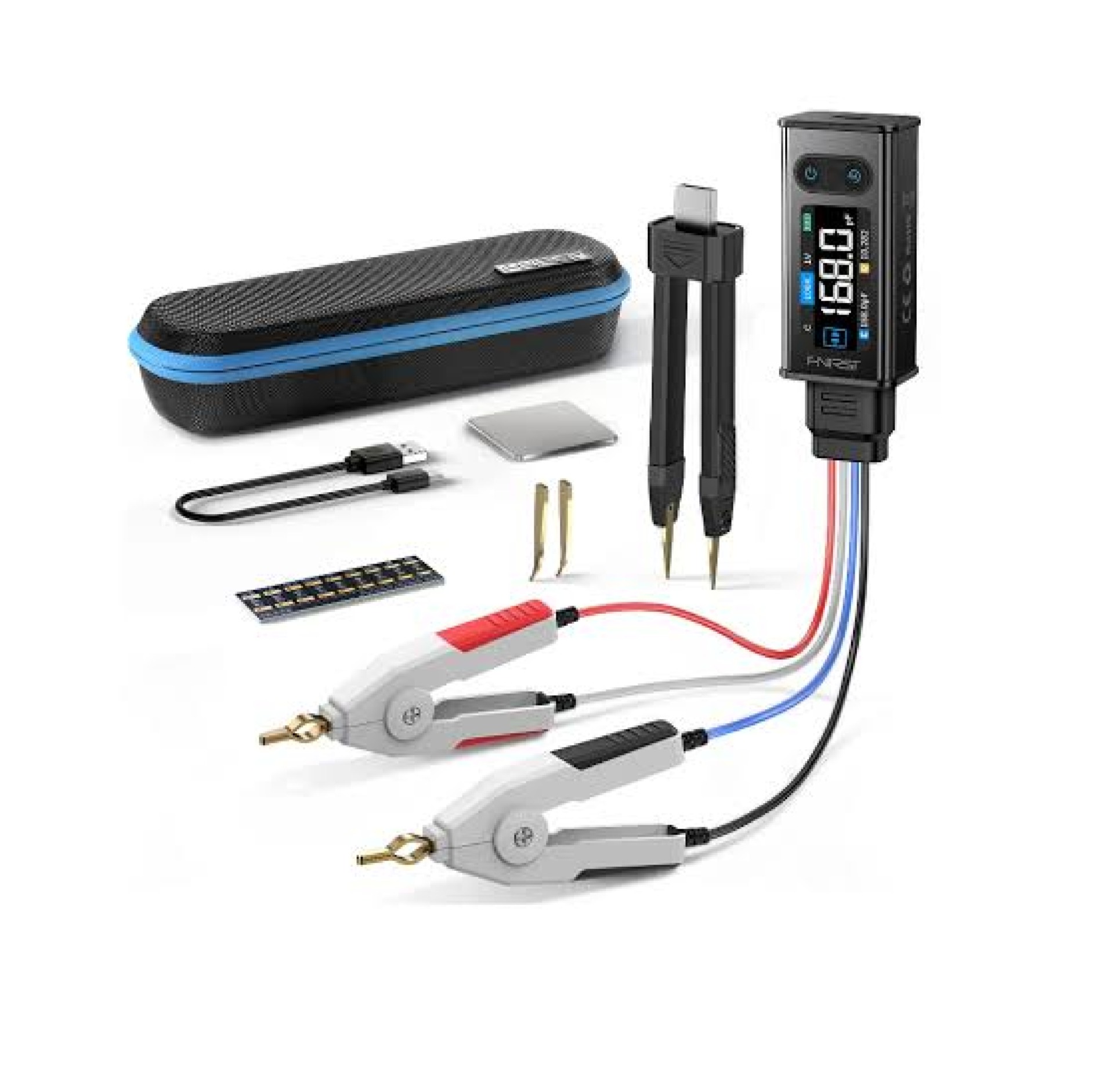

Package Includes

• 1x FNIRSI LCR-ST2 Plus Meter Body

• Straight and Angled Tweezer Tips

• 4-Wire Kelvin Clip Leads

• 1x USB Type-C Charging Cable

• 1x Calibration Reference Resistor

• 1x Storage Case
