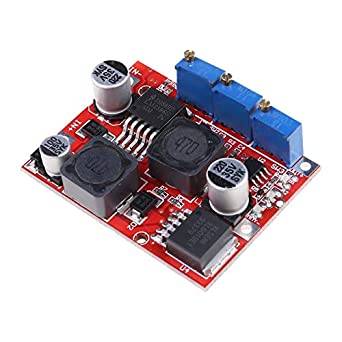

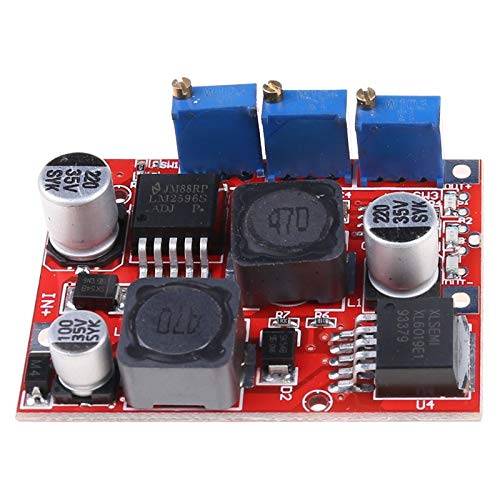

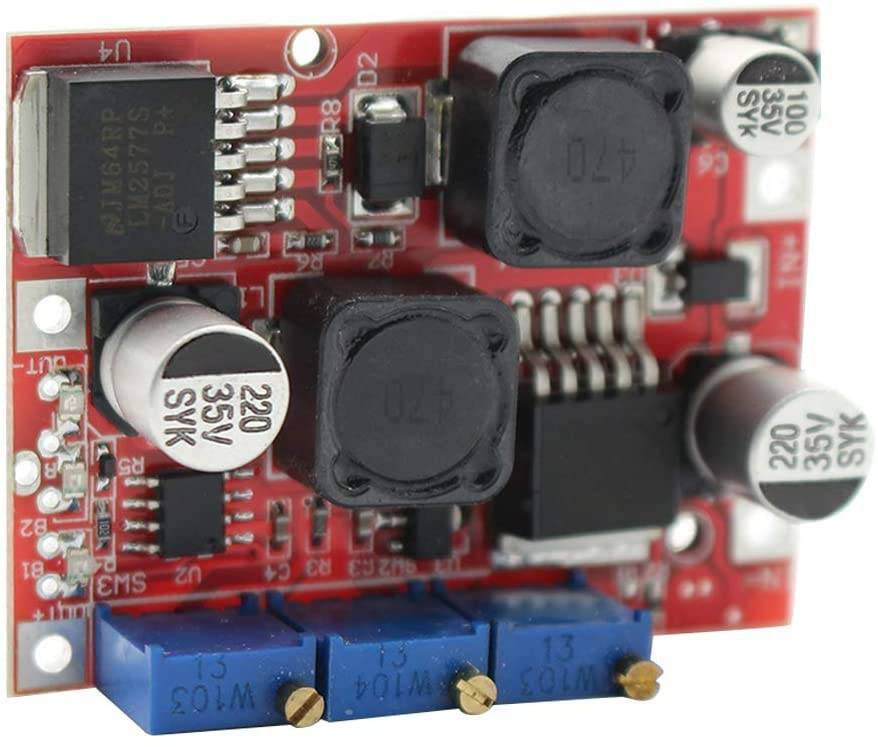

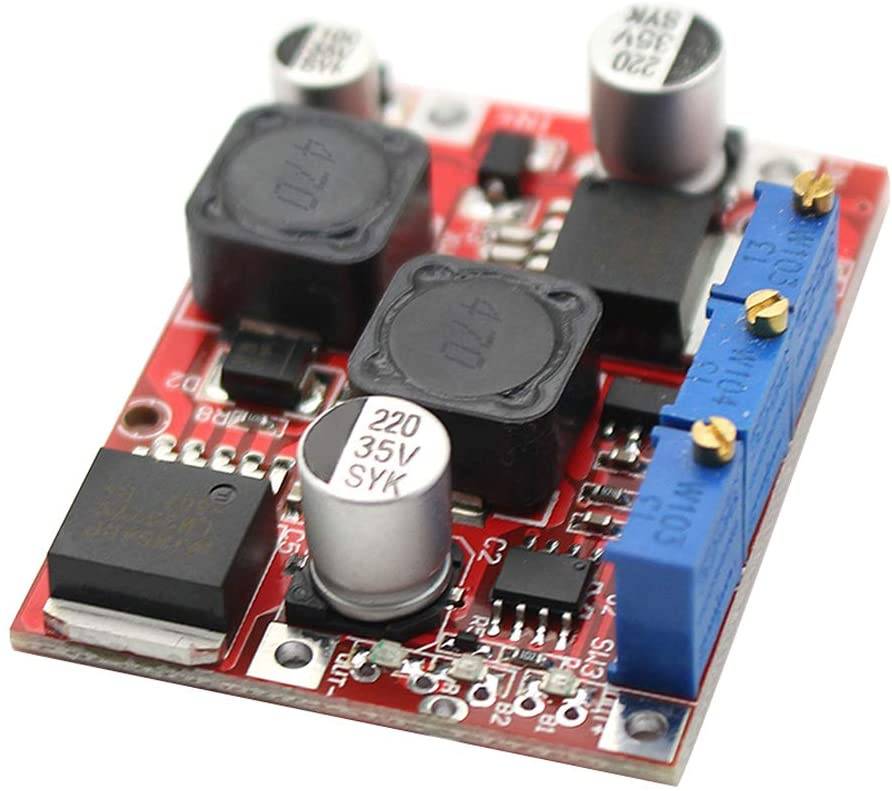

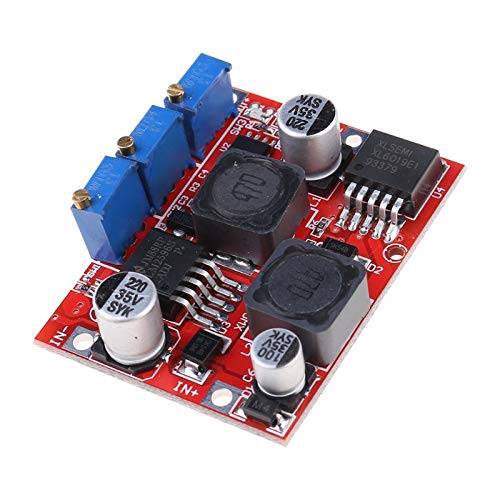

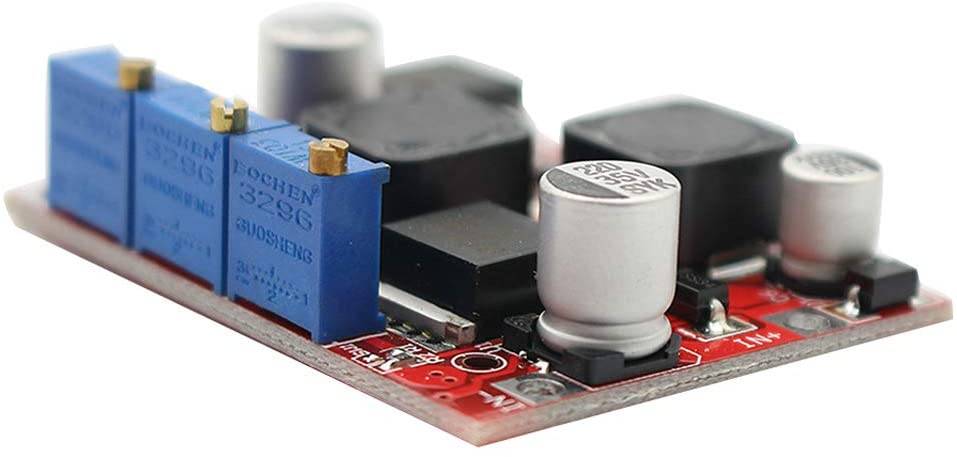

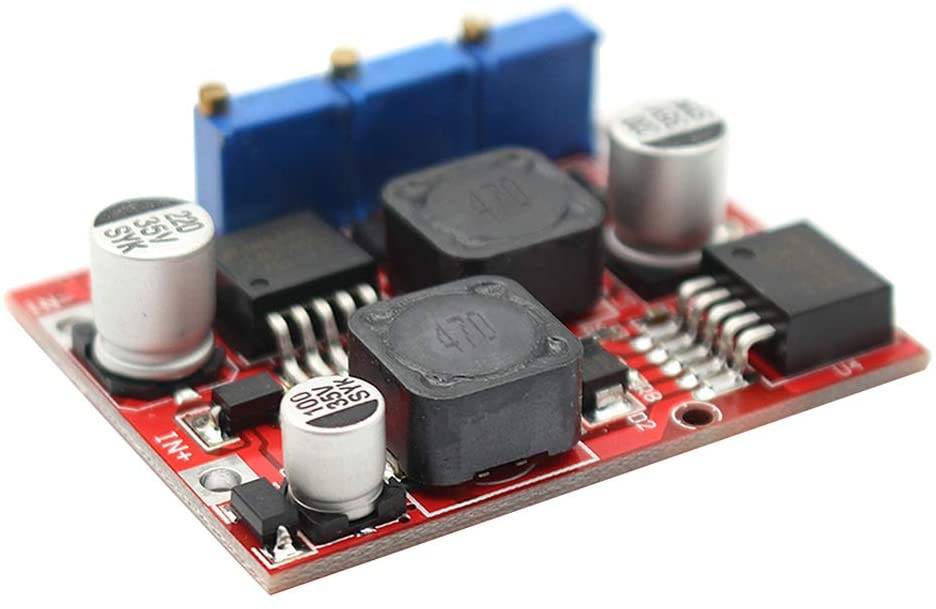

DC-DC Step Up Down Boost Buck Voltage Converter Module LM2577S LM2596S
Electra Store
SKU: MD-28178
137.50 EGP
In Stock
1
Categories: Converters
Description

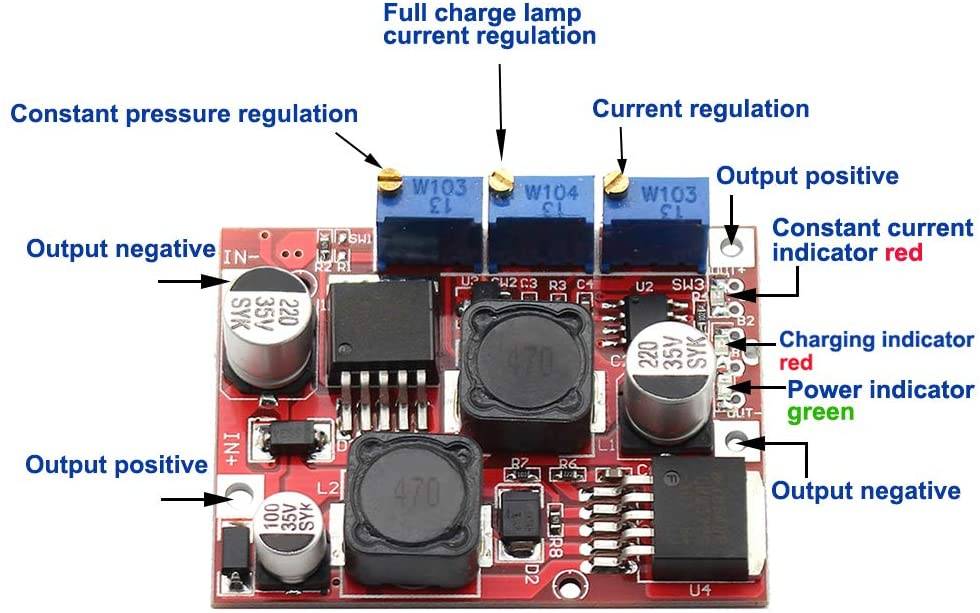

Indicator Light :
- Constant current indicator (red LED)
- Charging indicator(light red)
- Charged full (Light Blue)
- High-power LED constant current driver
- Lithium battery charger (including ferroelectric),4V, 6V, 12V, 14V, 24V battery charger,Nickel cadmium, nickel metal hydride battery pack charger
- Solar panels and wind driven generator.
- Make sure of the voltage and current of the battery you need to charge.
- Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage.
- Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease).
- Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
- The charge current of transfer lamp is default 0.1 times of the charging current (constant current value)
- Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)
