DIP to SOP16 Adapter

DIP to SOP16 Adapter Board

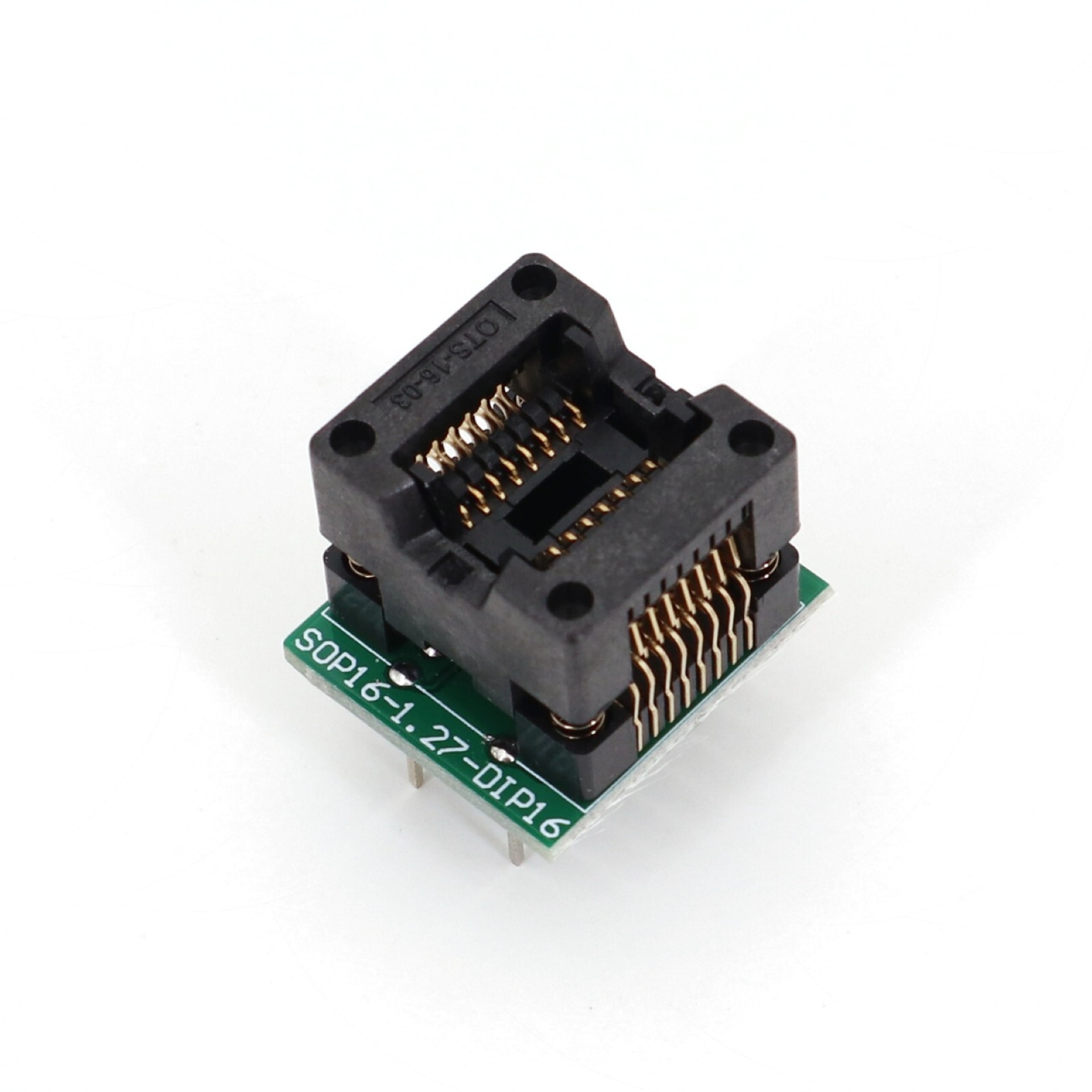

The DIP to SOP16 Adapter is a compact and practical PCB designed to convert SOP16 (SOIC-16) surface-mount ICs into a standard DIP-16 (Dual In-line Package) format. This adapter allows surface-mount integrated circuits to be easily used on breadboards, perfboards, or through-hole PCB designs, making it an essential tool for prototyping, testing, and development.

Surface-mount ICs (SMD) are widely used in modern electronics due to their compact size, but they can be difficult to handle during prototyping. This adapter solves that problem by providing a convenient bridge between SMD components and traditional through-hole systems.

The board features clearly labeled pins and a well-spaced layout, ensuring accurate soldering and reliable connections. It supports standard SOP16 packages and typically includes dual-row pins spaced at 2.54mm (0.1 inch) to match breadboards and standard sockets.

Made from high-quality PCB material, the adapter provides durability and stability during repeated use. It is suitable for engineers, hobbyists, and technicians working on embedded systems, repair tasks, and circuit testing.

Features:

• Converts SOP16 (SOIC-16) to DIP-16 format

• Compatible with standard breadboards and DIP sockets

• 2.54mm (0.1") pin spacing

• Clearly labeled pin layout for easy soldering

• Compact and lightweight design

• High-quality PCB construction

• Ideal for prototyping and testing SMD ICs

• Reusable and durable

Specifications:

• Package Type: SOP16 (SOIC-16) to DIP-16

• Pin Count: 16 pins

• Pin Pitch (DIP side): 2.54mm

• PCB Material: FR4 fiberglass

• Mount Type: Surface-mount IC to through-hole adapter

• Board Size: Compact (varies by manufacturer)

• Compatibility: Standard SOP16 IC packages

Applications:

• Prototyping SMD ICs on breadboards

• Testing SOP16 integrated circuits

• Electronics repair and IC replacement

• DIY electronics and embedded projects

• Educational and training purposes

• Converting SMD designs to through-hole setups
