Key Features

✅ Dual-Channel Testing – Measure two batteries simultaneously (independent control). ✅ High-Precision Readings –

• Voltage: 0.01V resolution

• Current: 0.001A resolution

• Capacity: 1mAh resolution

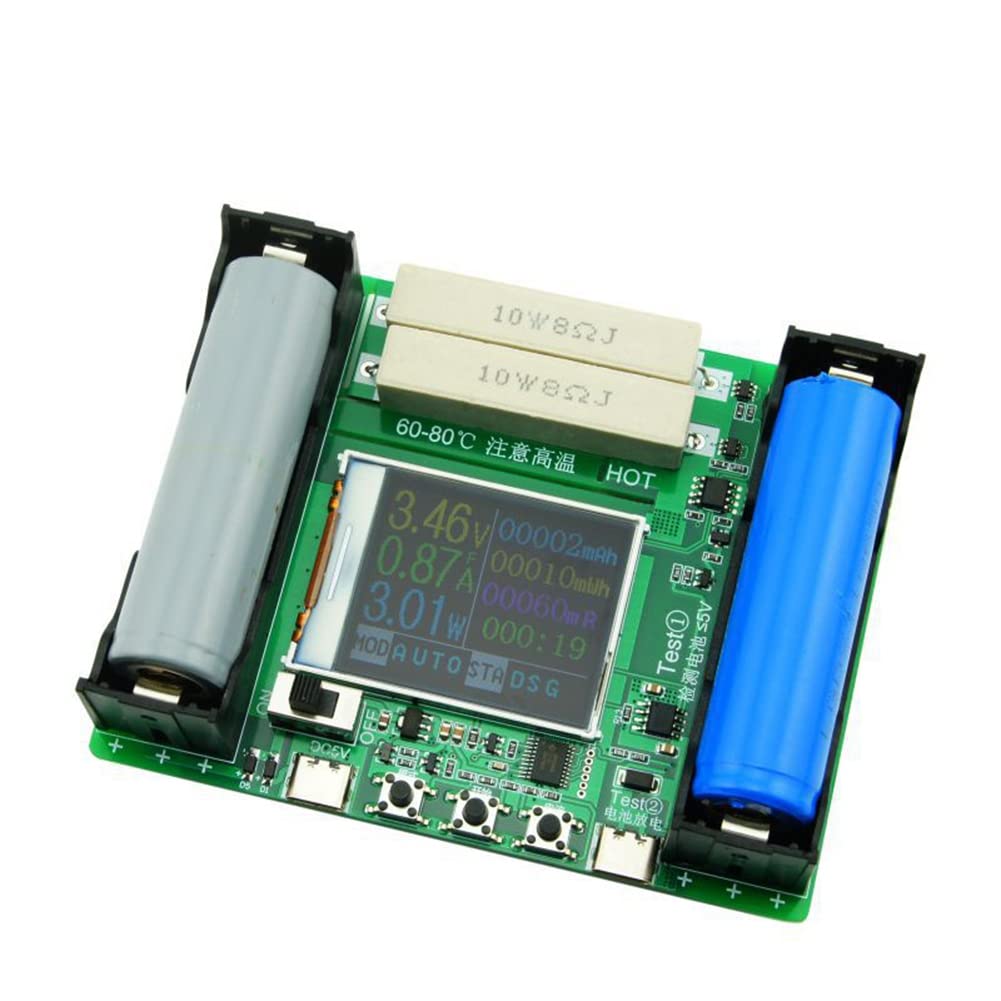

• Energy: 0.01Wh resolution ✅ 1.77" Color TFT LCD – Displays real-time curves (voltage vs. time) + numeric data. ✅ Adjustable Discharge Current – Set from 0.1A to 3A per channel (custom load profiles). ✅ Auto Cutoff Protection – Stops at low-voltage threshold (configurable, e.g., 2.5V for Li-ion). ✅ Data Logging – Saves peak/min values and cumulative capacity. ✅ Wide Compatibility – Tests 18650, 26650, AA/AAA, LiPo, Ni-MH (1.2V–5V). ✅ USB-C Powered (5V) – No external battery required (can also power from test battery).

Applications

🔋 Battery Recycling – Check used cells for DIY power banks/solar projects. 🛠️ Electronics Repair – Diagnose weak batteries in laptops, tools, or vape devices. 📊 Quality Testing – Verify capacity claims of new Li-ion/Ni-MH cells. ⚡ RC Hobby & DIY – Optimize battery packs for drones, flashlights, or robots.

Technical Specifications

• Input Voltage: 1.2V–5V per channel (supports Li-ion/Ni-MH/lead-acid).

• Max Discharge Current: 3A per channel (total 6A max).

• Measurement Accuracy:

  • Voltage: ±0.5% ±0.01V

  • Current: ±1% ±0.01A

• Display: 1.77-inch TFT LCD (320x240 pixels, color UI).

• Cutoff Voltage: Adjustable (e.g., 2.5V–3V for Li-ion).

• Power Supply: USB-C (5V/1A) or from battery under test.

• Dimensions: 85mm x 55mm x 15mm (compact PCB design).

Package Includes

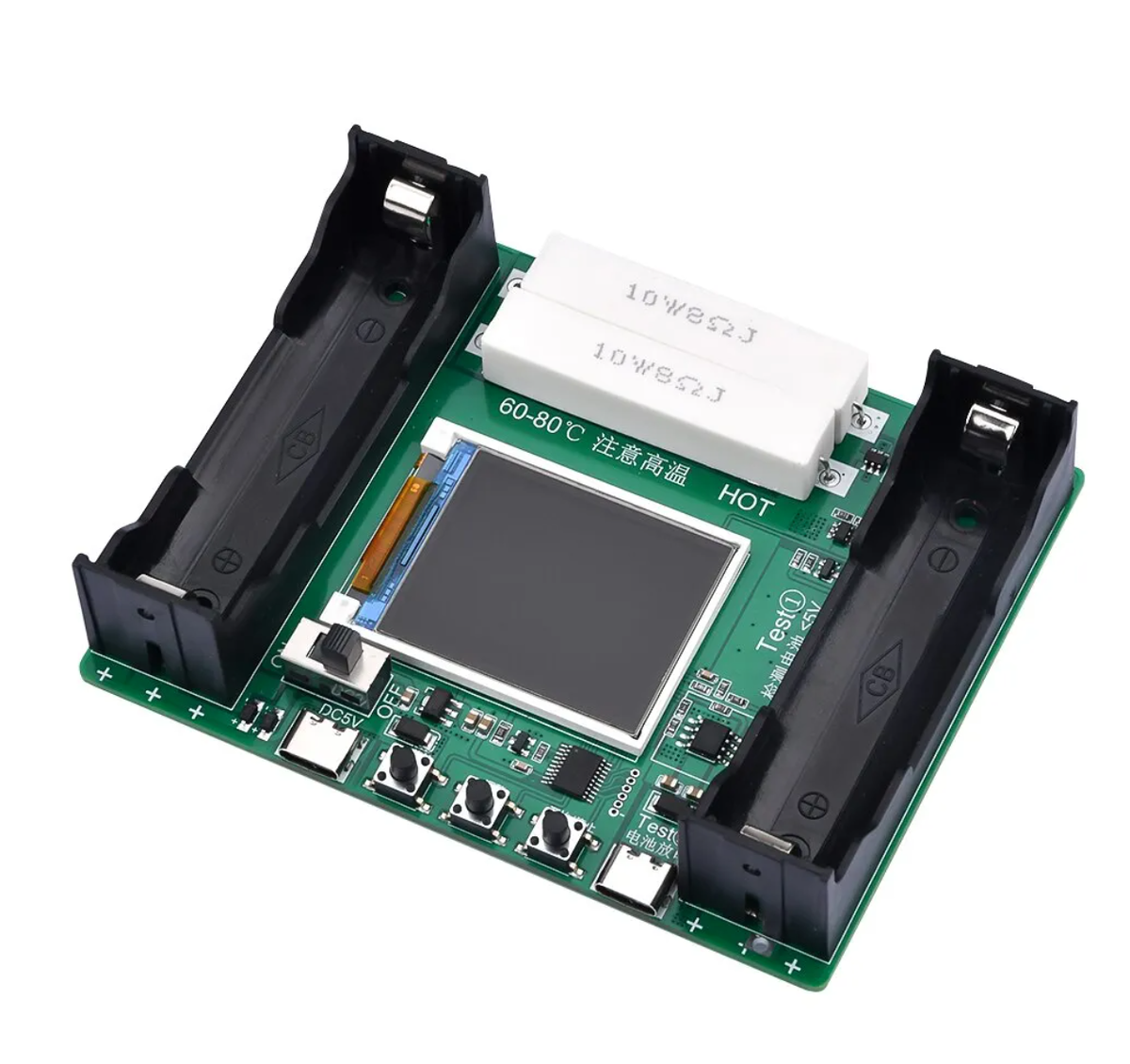

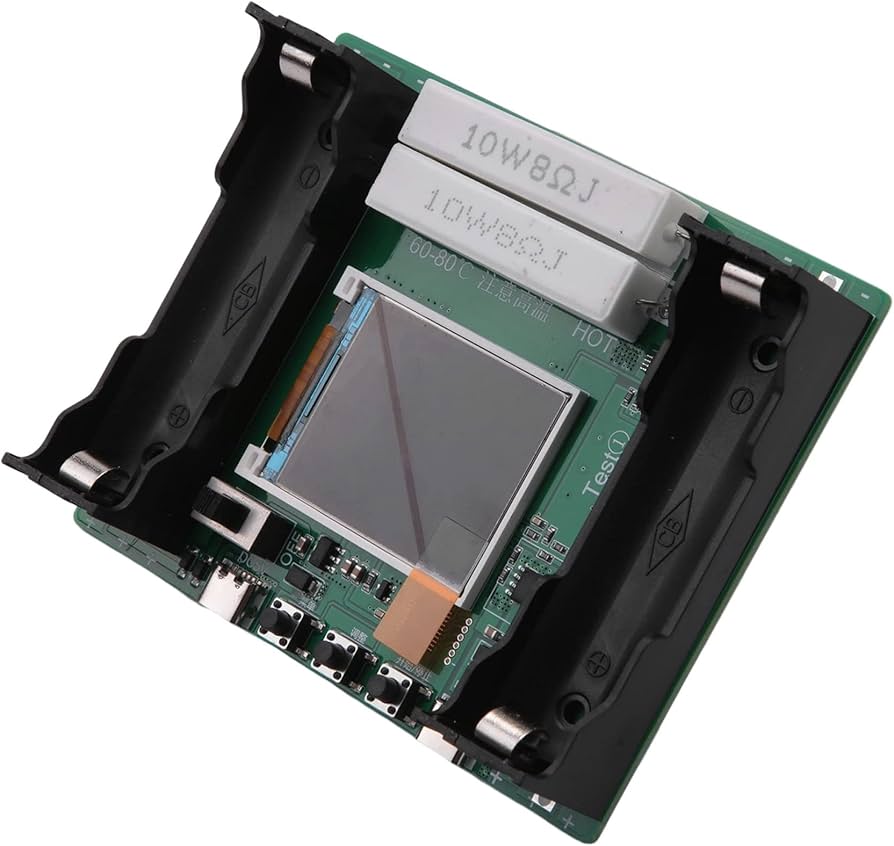

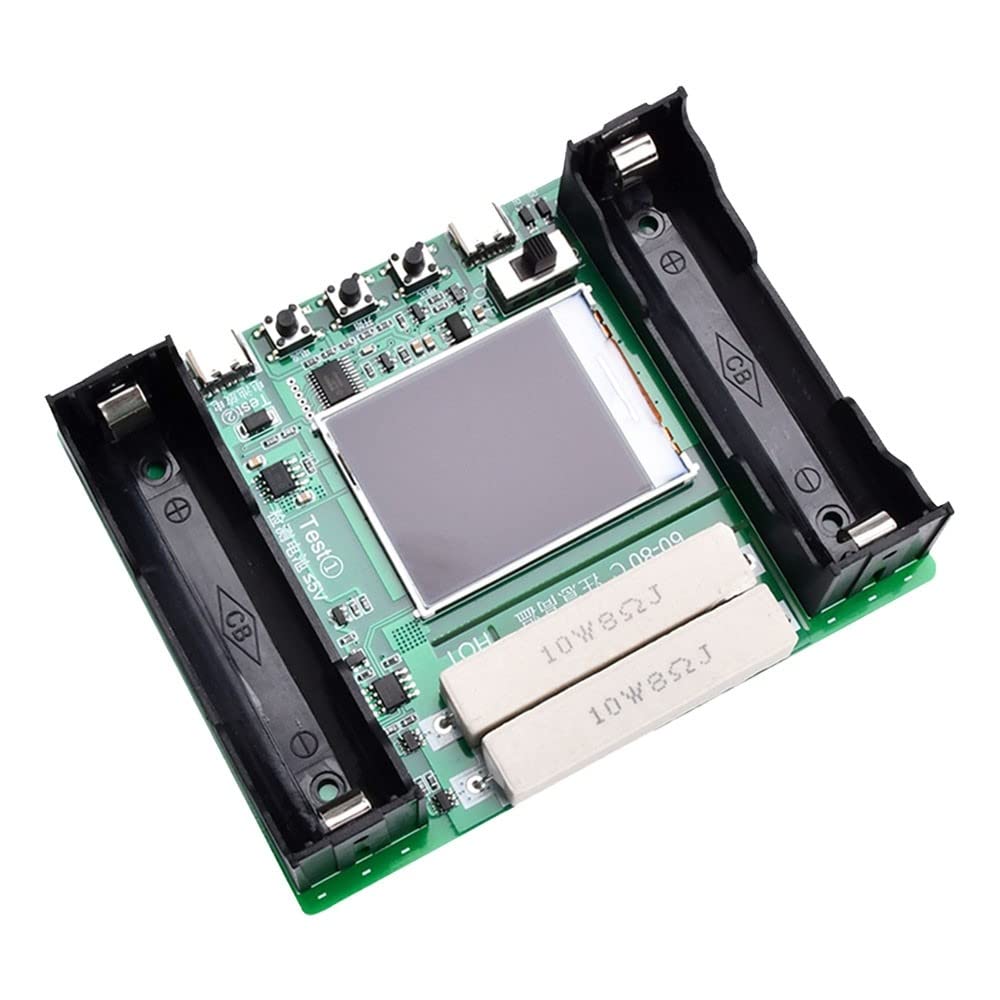

• 1x CH-3.0 Battery Tester Module

• 2x Test Wires with Alligator Clips

• 1x USB-C Cable

• User Manual (English/Chinese)

Why Choose the CH-3.0 Tester?

🔹 Professional Accuracy – Reliable data for battery grading/repurposing. 🔹 User-Friendly UI – Intuitive menus + visual discharge curves. 🔹 Compact & Portable – Fits in toolkits for on-the-go testing. 🔹 Cost-Effective – Cheaper than industrial testers with similar features.

Know Your Batteries’ True Capacity!

Ideal for makers, recyclers, and tech enthusiasts, the CH-3.0 eliminates guesswork by providing scientific metrics to compare battery performance.

📌 Note: For best results, fully charge batteries before testing and avoid exceeding 3A discharge on small cells (e.g., 18650).
