Sim900 GSM / Gprs Shield For Arduino Icomsat 1.1

Electra Store SKU: DB-22921

825.00 EGP

Out of Stock

Share to

Categories: Modules

Overview

SIM900 GSM/GPRS shield is a GSM modem, which can be integrated into a great number of IoT projects. You can use this shield to accomplish almost anything a normal cell phone can; SMS text messages, Make or receive phone calls, connecting to internet through GPRS, TCP/IP, and more! To top it off, the shield supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world.

Description

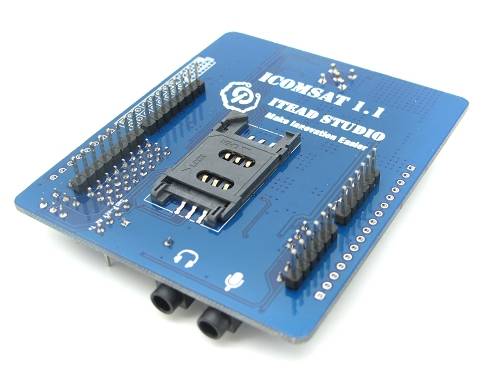

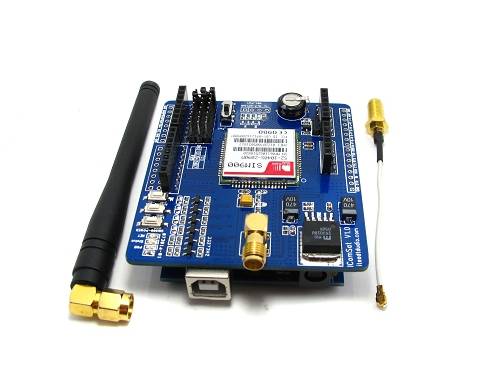

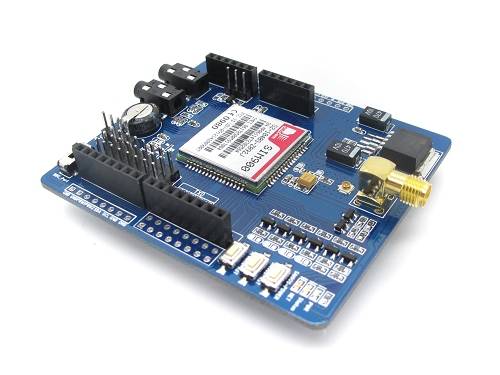

SiM900 GSM/GPRS shield for Arduino - IComSat v1.1

IComsat is a GSM/GPRS shield for Arduino and based on the SIM900 Quad-band GSM/GPRS module. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands), and fully compatible with Arduino / Iteaduino and Mega. Now the IComsat update from v1.0 to v1.1. What's NEW of 1.1: Support the software power on Add the 3.5mm socket for microphone and earphone interface on shield

Features

Quad-Band 850/ 900/ 1800/ 1900 MHz GPRS multi-slot class 10/8 GPRS mobile station class B Compliant to GSM phase 2/2 Class 4 (2 W @850/ 900 MHz) Class 1 (1 W @ 1800/1900MHz) Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands) Low power consumption: 1.5mA (sleep mode) Operation temperature: -40°C to 85 °C
