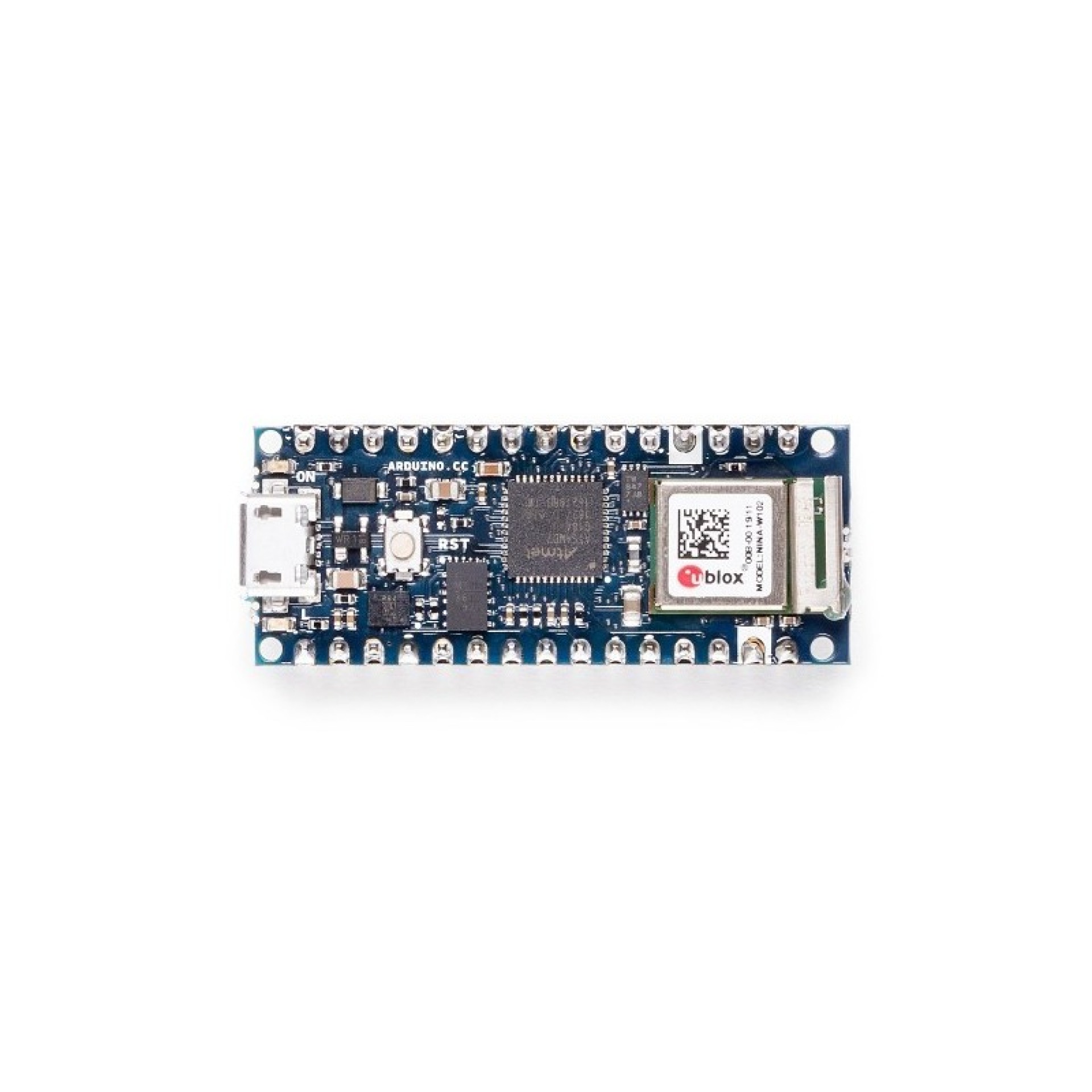

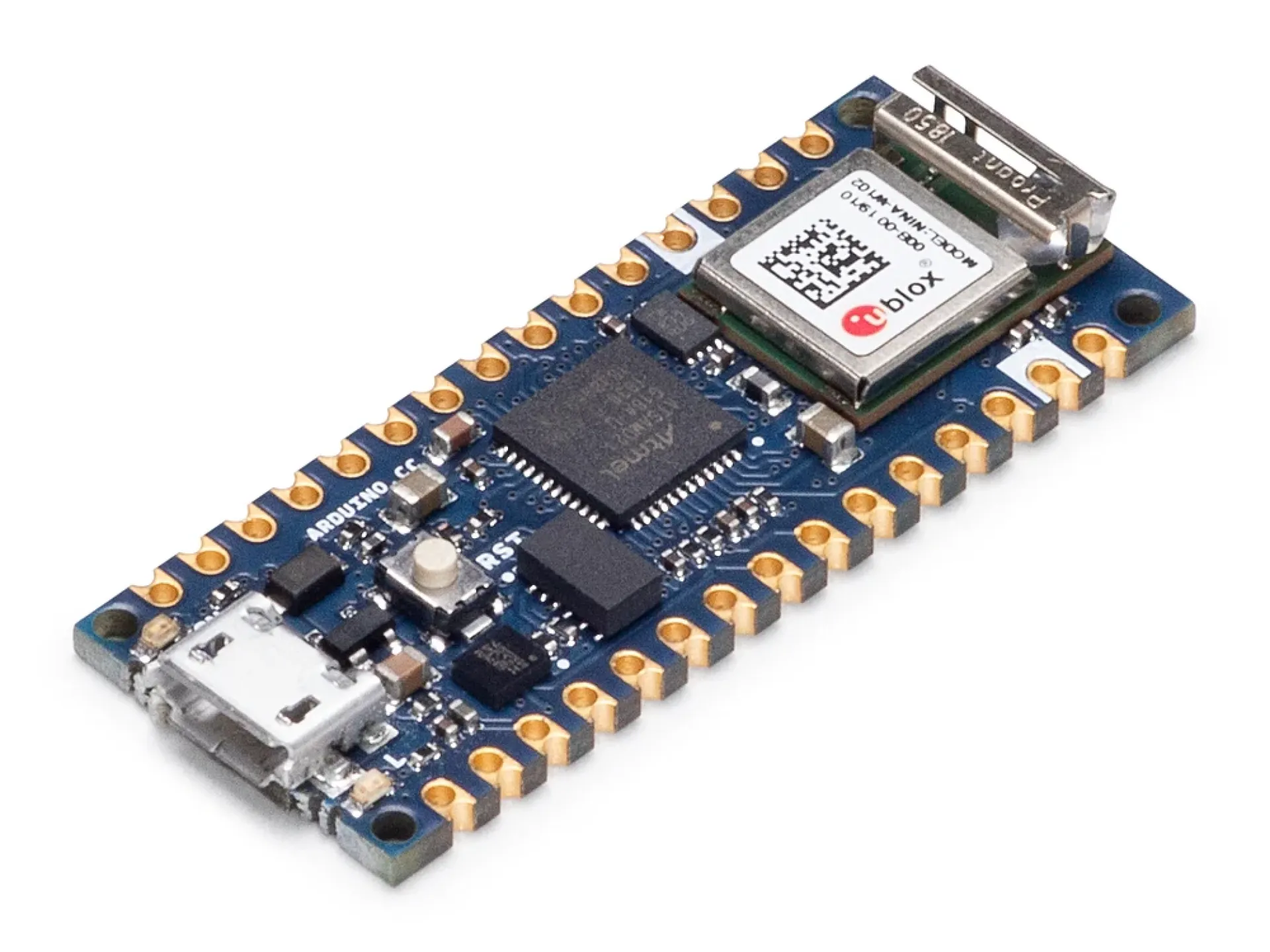

Arduino Nano 33 IOT with Header ABX00032

The Arduino Nano 33 IoT (ABX00032) is a powerful, compact development board designed for modern Internet of Things (IoT) applications. It combines the classic Nano form factor with advanced connectivity features such as WiFi and Bluetooth, making it ideal for smart devices, automation systems, and cloud-connected projects.

At its core, the board is powered by the ARM Cortex-M0+ (SAMD21G18A) microcontroller, running at 48MHz, delivering significantly higher performance than traditional 8-bit Arduino boards.

One of its key advantages is the integration of the u-blox NINA-W102 wireless module, which provides reliable WiFi and Bluetooth (BLE) connectivity, allowing seamless communication with smartphones, cloud platforms, and other devices.

Additionally, the board includes a Microchip ATECC608A crypto chip, enabling secure communication and authentication—an essential feature for IoT applications where data security is critical.

The Nano 33 IoT also features an onboard 6-axis IMU (LSM6DS3), allowing motion detection, orientation tracking, and gesture-based applications without needing external sensors.

Its compact size and pre-soldered headers make it breadboard-friendly and ready for rapid prototyping.

Features:

• Based on SAMD21 32-bit ARM Cortex-M0+ microcontroller

• Built-in WiFi and Bluetooth (BLE) connectivity

• Integrated ATECC608A crypto chip for secure communication

• Onboard 6-axis IMU (accelerometer + gyroscope)

• Compact Nano form factor with pre-soldered headers

• Compatible with Arduino IDE and Arduino IoT Cloud

• Supports OTA (Over-the-Air) updates

• Low power consumption design

• USB native support for programming and communication

Specifications:

• Microcontroller: ATSAMD21G18A (32-bit ARM Cortex-M0+)

• Clock Speed: 48 MHz

• Operating Voltage: 3.3V

• Input Voltage (limit): up to 21V

• Flash Memory: 256 KB

• SRAM: 32 KB

• Wireless Module: u-blox NINA-W102 (WiFi + BLE)

• Crypto Chip: ATECC608A

• Digital I/O Pins: 14+

• Analog Input Pins: 8

• PWM Pins: up to 11

• Communication: UART, SPI, I2C

• IMU Sensor: LSM6DS3

• Dimensions: ~45 × 18 mm

Applications:

• IoT and cloud-connected devices

• Smart home automation systems

• Wireless sensor networks

• Wearable electronics

• Robotics and motion tracking systems

• Remote monitoring systems

• Industrial IoT (IIoT) projects
