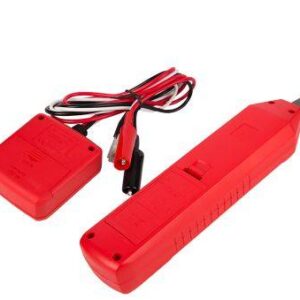

UT682D Wire Tracker
UT682 wire tracker consists of a transmitter and a receiver, it is able to track Ethernet/telephone/power cables without opening their insulation.
UT682 can troubleshoot Ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Product Description
- UT682 wire tracker consists of a transmitter and a receiver, it is able to track Ethernet/telephone/power cables without opening their insulation.
- UT682 can troubleshoot Ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Applications:
- It can be used to test continuity and check polarity on telephone lines.
Package Included:
- 1 X UT682D Wire Tracker.
| Specifications | Range | UT682D | |
| Wire tracking features | Wire types | Telephone line twisted- pair electric wire | |
| Telephone lines tracking distance | ≥3000m | ||
| Polarity indication for telephone lines | DCV function, range: ±(5V~52V) | √ | |
| Telephone lines and LAN cables distinction | Jacks distinction | √ | |
| Transmitter output voltage | 8V DC with a new battery | ||
| Transmitter power supply | 9V battery | √ | |
| Receiver power supply | 9V battery | √ | |
| Max receiver standby current | ~10mA | √ | |
| Max receiver operating current | <40mA (AC, RMS) | √ | |
| Transmitter input voltage protection | 60V DC | ||
| Operating environment | Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m | ||
| General Characteristics | |||
| Product color | Red and grey | ||
| Product net weight | Transmitter-150g, Receiver-130g | ||
| Product size | Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm | ||
| Standard accessories | 9V battery x 2 | ||
