Single Channel 5V DC Relay Module Solid State Low Level Trigger
  1. Single Channel 5V DC Relay Module Solid State Low Level Trigger

Single Channel 5V DC Relay Module Solid State Low Level Trigger

60.00 EGP

  • Single Channel 5V DC Relay Module Solid-State Low-Level Trigger, output with resistive fuse (240V 2A) It is a 1-channel solid state relay board, which can be controlled by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.
  • With blue KF301terminal, more convenient for control line Standard interface can be connected with microcontrollers Solid State Relay Module Product Description It is a 1-channel solid state relay board, which can be controlled directly by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc. Features: 5V low level trigger solid state relay, output with resistive fuse (240V 2A).
  • It is a 1-channel solid state relay board, which can be controlled by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.
  • Standard interface can be connected with microcontrollers.



-+
SKU: MD-28113 Category: Tags: , , , , , , , , , , , , ,

Description

  • LOW LEVEL TRIGGER – In industrial control, called PNP trigger, negetive trigger, when the voltage between the trigger terminal and the negative pole of the power supply is 0V or close to 0V.
  • WITH FUSE to ensure the safe use of this module. High sensitivity.
  • Stable performance of electronic components

Specifications:

  • Working Voltage: 5V DC (160mA)
  • Channel: 1 channel

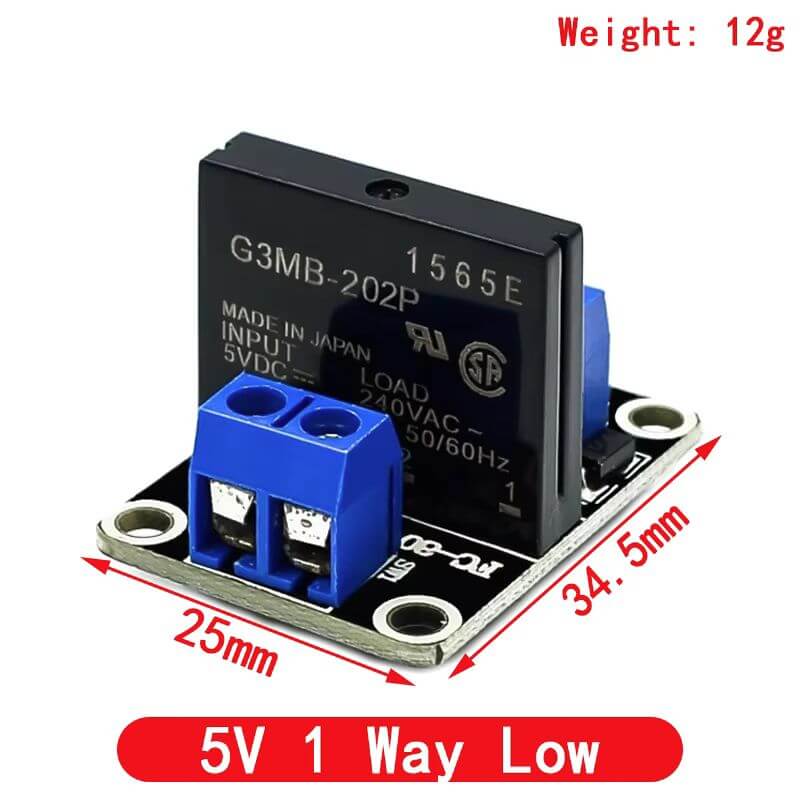

  • Size: Approx. 25 X 34 X 25 mm / 1.0 X 1.3 X 1.0 in
  • Weight: Approx .13 g
  • Input control signal voltage: (0-1.5 V state low relay ON) (2.5-5 V state high relay OFF)
  • Voltage Current: 12.5 mA Trigger Voltage:0-1.5 V
  • Trigger Current: 2 mA
  • Quiescent Current:0 mA

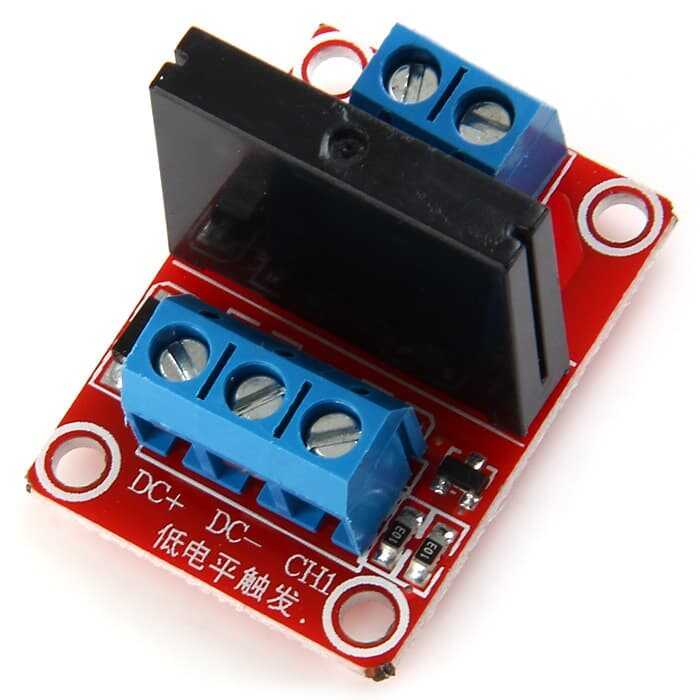

  • Module interface:
    DC : connect to positive power source (by relay voltage power supply)
    DC-: connect to negative power source
    CH: Relay module signal to trigger the end (effective at low level)

Package Included:

  • 1 X Single Channel 5V DC Relay Module Solid-State Low-Level Trigger
