Description

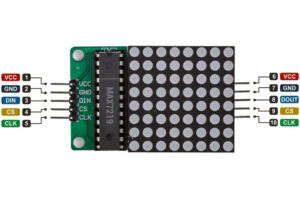

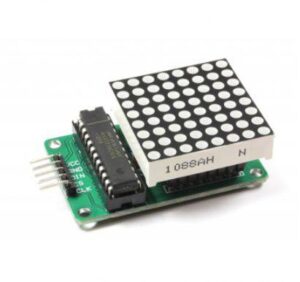

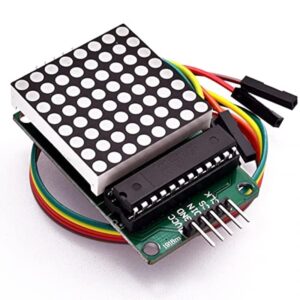

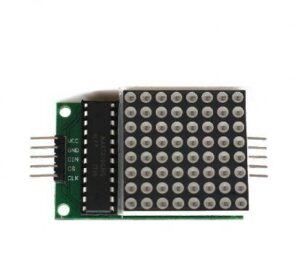

LED Matrix 8×8 MAX7219 Module for Arduino and Microcontroller

The LED Matrix 8×8 MAX7219 Module is a versatile and easy-to-use display module designed for hobbyists, students, and engineers who want to create dynamic visual displays with microcontrollers. Featuring an 8×8 LED matrix controlled by the popular MAX7219 driver IC, this module makes it simple to display numbers, letters, symbols, and animations in a compact form.

Compatible with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontrollers, the MAX7219 LED matrix module is an essential tool for learning, prototyping, and building creative projects.

What is the LED Matrix 8×8 MAX7219 Module?

An LED matrix is a two-dimensional arrangement of LEDs, typically used to display characters or images. The 8×8 configuration provides 64 individual LEDs arranged in rows and columns. The MAX7219 driver chip simplifies the process of controlling each LED by reducing the number of microcontroller pins needed.

Without the MAX7219, controlling 64 LEDs would require complex wiring and code. With this module, only a few pins are required, making it an ideal choice for beginners and advanced users alike.

Key Features of the 8×8 MAX7219 LED Matrix Module

• Display Size: 8×8 LED matrix (64 LEDs).

• Driver IC: Integrated MAX7219 chip for simplified control.

• Control Interface: SPI (Serial Peripheral Interface) for fast communication.

• Microcontroller Compatibility: Works with Arduino, ESP8266, ESP32, Raspberry Pi, and more.

• Cascading Support: Multiple modules can be chained together for larger displays.

• Brightness Control: Adjustable LED brightness via software.

• Power Supply: Operates at 5V, making it easy to use with common development boards.

• Compact Size: Lightweight and perfect for small projects.

How the MAX7219 Makes It Easy

The MAX7219 driver chip handles all the multiplexing and current control, allowing users to control the entire 8×8 display with only a few pins from the microcontroller. This reduces coding complexity and wiring requirements.

It also includes built-in features like:

• Adjustable brightness.

• Scan-limiting to control how many digits/rows are displayed.

• Easy cascading for multiple modules.

This makes it ideal for projects requiring multiple displays or custom scrolling messages.

Applications of the LED Matrix 8×8 MAX7219

The 8×8 LED Matrix MAX7219 module is suitable for a wide variety of projects, such as:

• Scrolling Text Displays: Show names, greetings, or notifications.

• Clocks: Digital clock displays with scrolling effects.

• IoT Projects: Visual indicators for smart home systems.

• Games: Pixel-based games like Tetris or Snake.

• Robotics: Add expressive eyes or status indicators to robots.

• Education: Teach students about LED control, SPI communication, and matrix addressing.

• DIY Decorations: Creative lighting effects and animations.

Benefits of Using This Module

1. Beginner Friendly: Simplifies LED matrix control using MAX7219.

2. Expandable: Multiple modules can be chained together to create larger displays.

3. Customizable: Full control over brightness, patterns, and animations.

4. Affordable: Cost-effective solution for visual display projects.

5. Community Support: Widely used in Arduino and maker communities with plenty of tutorials and libraries available.

Technical Specifications

• Module Type: LED Matrix 8×8 with MAX7219 driver.

• Operating Voltage: 5V DC.

• LED Count: 64 (8×8 grid).

• Communication Interface: SPI.

• Cascadable: Yes, multiple modules supported.

• Dimensions: Compact and lightweight, ideal for DIY builds.

Why Choose the LED Matrix 8×8 MAX7219?

The LED Matrix 8×8 MAX7219 Module is one of the most practical and accessible display solutions for microcontroller projects. Its plug-and-play design, combined with the powerful MAX7219 driver, makes it easy to create interactive and visually appealing projects.

Whether you’re displaying scrolling messages, experimenting with pixel graphics, or building a unique DIY gadget, this module gives you the flexibility and performance you need. Its affordability, simplicity, and wide support in the maker community make it a must-have for anyone working with Arduino or microcontrollers.

Data Sheet
