Description

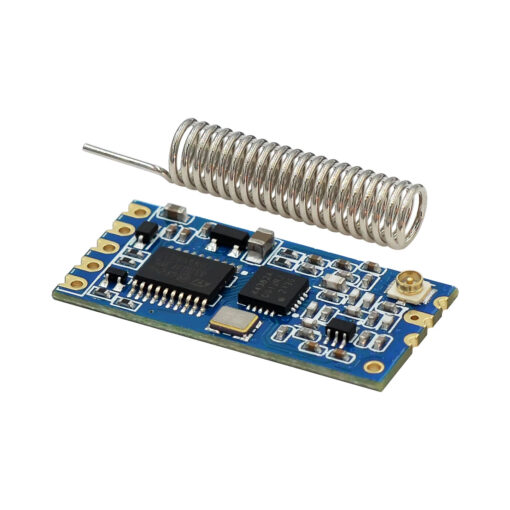

HC-12 Wirless Transceiver Module (1KM)

• HC-12 wireless RF UART communication module is a new generation of multi channel
  embedded wireless data transmission module.
• Radio frequency of 433.4 – 473.0MHz, can be setting communication channel, step is 400kHz, a total of 100 channel.
• The module maximum transmit power is 100mW (20dBm), and -116dBm receiver sensitivity air of the 5000bps baud rate, communication distance about 500 meters.
  The module adopts a stamp hole encapsulation method, which can be welded.
• The module

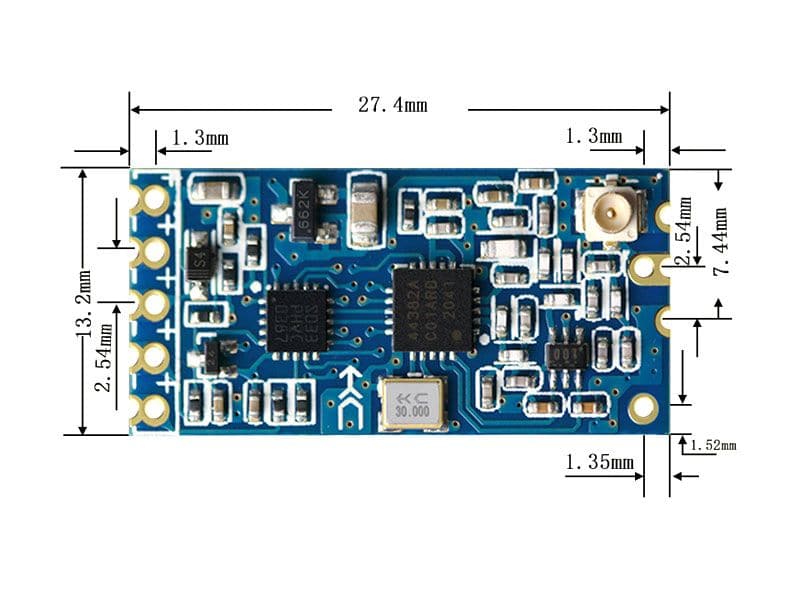

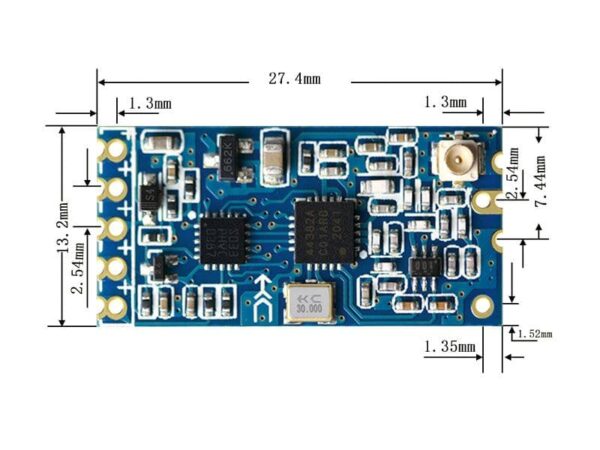

• size is 27.4mm*13.2mm *4mm (including antenna seat, not including the spring antenna), which is convenient for the customer to be embedded in the application system.

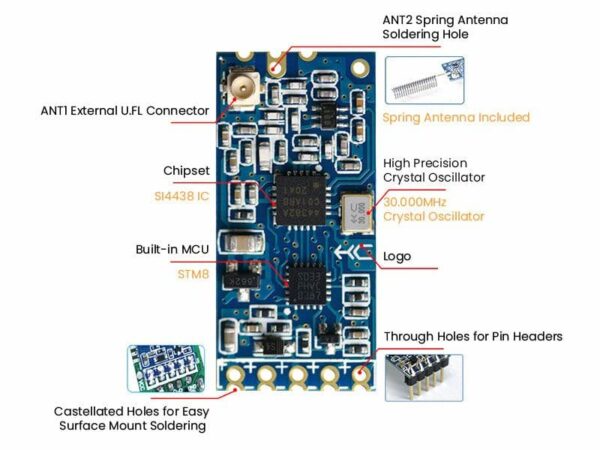

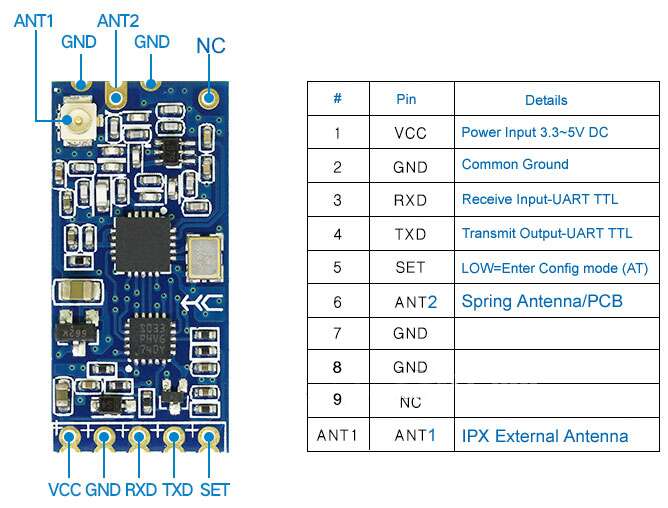

• The module has a PCB antenna seat ANT1, users can use the coaxial cable, the use of 433MHz band external antenna.
• The module also has antenna welding hole ANT2, convenient user welded spring antenna.
• The user can choose one kind of antenna according to the request.
• The module contains MCU, users do not need to program in addition, just send and receive UART data.
• The module uses a variety of UART transmission mode, the user can choose
  according to the requirements of the use of AT command.
• The four UART modes of FU1, FU2, FU3, FU4, the average operating current is 3.6mA, 80μA, 16mA and 16mA, the maximum operating current is 100mA (full power transmit state).
• The HC-12 is a 100mW multi-channel wireless transceiver you can use in your projects to transmit and receive serial information.
• The HC-12 is a half-duplex wireless serial communication module with 100 channels in the 433.4-473.0 MHz range that is capable of transmitting up to 1 km.
• This project will begin by using the HC-12 to create a wireless link between two computers and end with a second article that creates a simple wireless GPS tracker.





Specifications:

• Communication Protocol: UART 3.3 – 5V TTL
• Operation Voltage: 3.2V to 5.5VDC
• Communication Distance: 1,000m in the open space
• Operation Frequency: 433.4MHz to 473.0MHz
• Antenna Interface: Spring Antenna
• No-load Current: 22μA
• Operating Temperature: -40℃ to 85℃
• Dimensions: 27.4 x 13.2 x 4mm
• Weight: 0.7g





Data Sheet

Package Included:

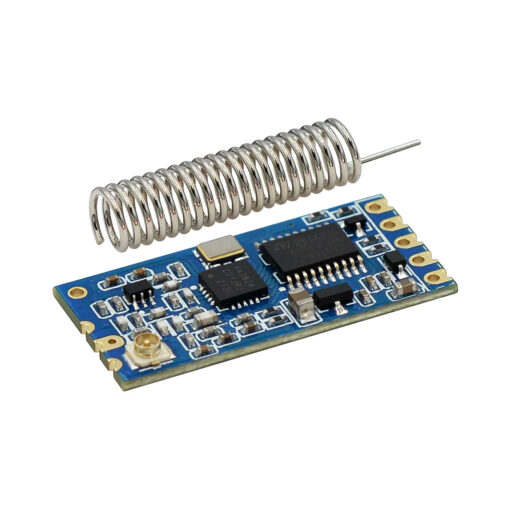

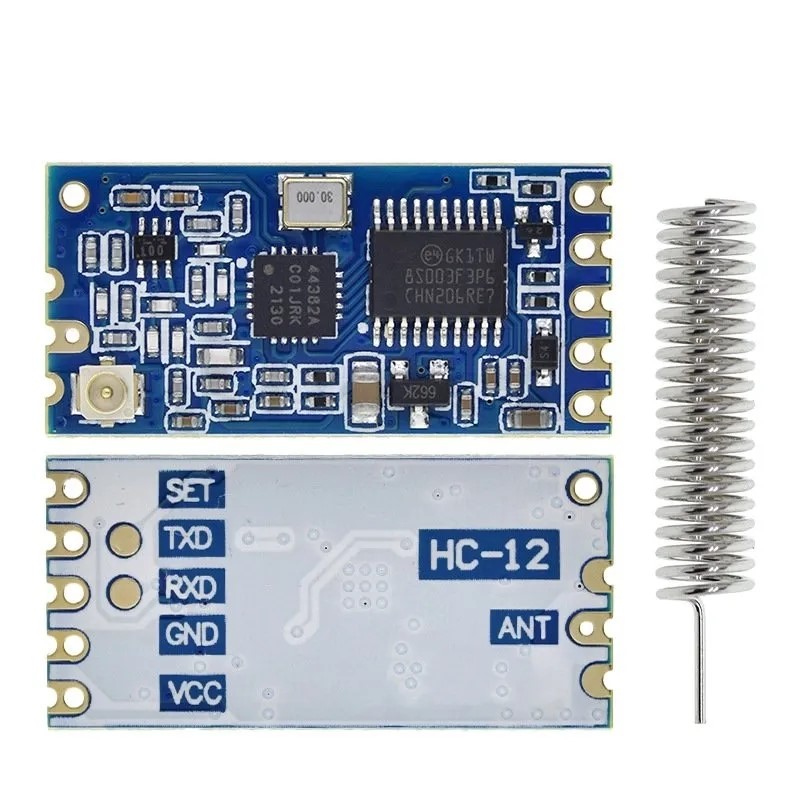

• 1 X HC-12 Module

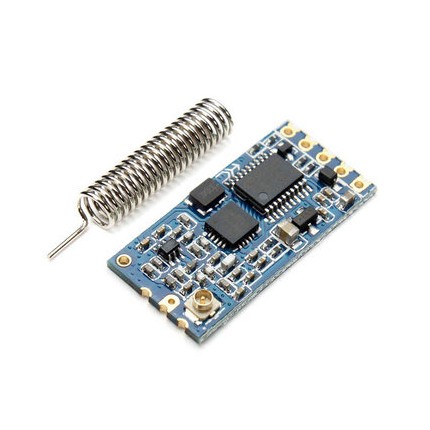

• 1 X Antenna

Transceiver Module
