W06M 600V Bridge Rectifier Diode 1A

Electra Store SKU: CM-22275

4.00 EGP

In Stock

Quantity

Share to

Categories: Bridges

Overview

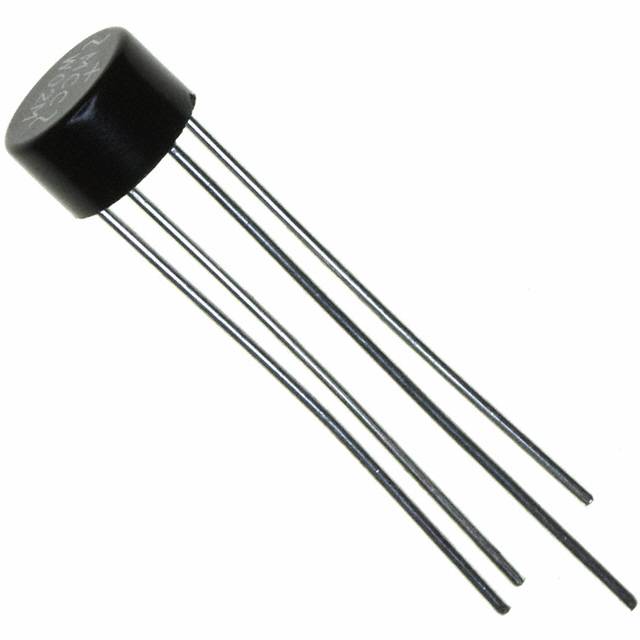

The W06M Bridge Rectifier is a compact and efficient 4-pin rectifier diode designed for converting AC input voltage to DC output in low to medium power applications. With a voltage rating of 600V and a current capacity of 1.5A, it is ideal for use in power adapters, small power supplies, and electronic circuits requiring reliable rectification.

Housed in a space-saving molded plastic package, the W06M provides excellent thermal and electrical performance for a wide range of applications.

Description

✅ Key Features:

Maximum Reverse Voltage (Vrrm): 600V
Average Forward Current (Io): 1.5A
Surge Current (Ifsm): 50A
Low forward voltage drop for high efficiency
Compact 4-pin bridge package for easy PCB mounting
Excellent heat resistance and long-term reliability

📦 Specifications:

Model: W06M
Type: Single-Phase Bridge Rectifier
Maximum Reverse Voltage: 600V
Average Forward Current: 1.5A
Surge Current (Peak): 50A
Forward Voltage Drop: 1.1V @ rated current
Package Type: Molded plastic body with 4 leads
Operating Temperature: -55°C to +150°C

🔌 Applications:

Power adapters and chargers
Small DC power supplies
LED drivers and lighting systems
Consumer electronics and DIY projects
Rectification in AC-powered circuits

💡 Why Choose W06M?
The W06M offers a balance of compact size, durability, and efficient rectification, making it an excellent choice for low-to-medium current applications in both professional and hobbyist electronics.
