🔧 Key Features:

• Measurement Parameters: Voltage (V), Current (A), Active Power (W), Apparent Power (VA), Reactive Power (VAR), Power Factor (PF), Frequency (Hz), Energy (kWh)

• Voltage Range: 0–600V

• Current Range: 0–20A

• Power Factor Measurement: From -1.000 to +1.000

• Frequency Range: 45Hz to 65Hz

• Display: Large clear digital LED display for real-time monitoring

• Data Hold & Memory Function: Save and compare results

• Interface: RS232/USB for PC communication and data logging

• Precision: High accuracy with fast response time

• Protection: Over-voltage and over-current protection built-in

• Power Supply: AC 220V / 50Hz

✅ Applications:

• Power analysis and testing in R&D labs

• Electrical load monitoring in industrial setups

• Teaching tool in technical institutes

• Energy consumption auditing

• Quality control on production lines

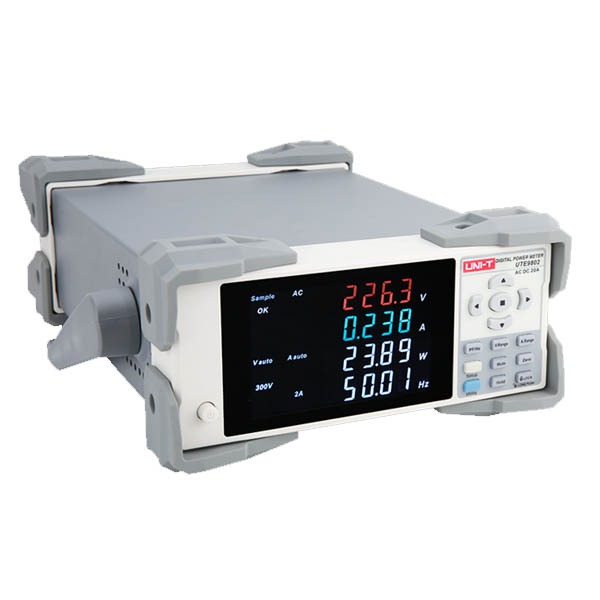

Whether you're measuring single-phase loads or analyzing equipment efficiency, the UTE9802 offers reliable performance and smart features in one compact unit.
