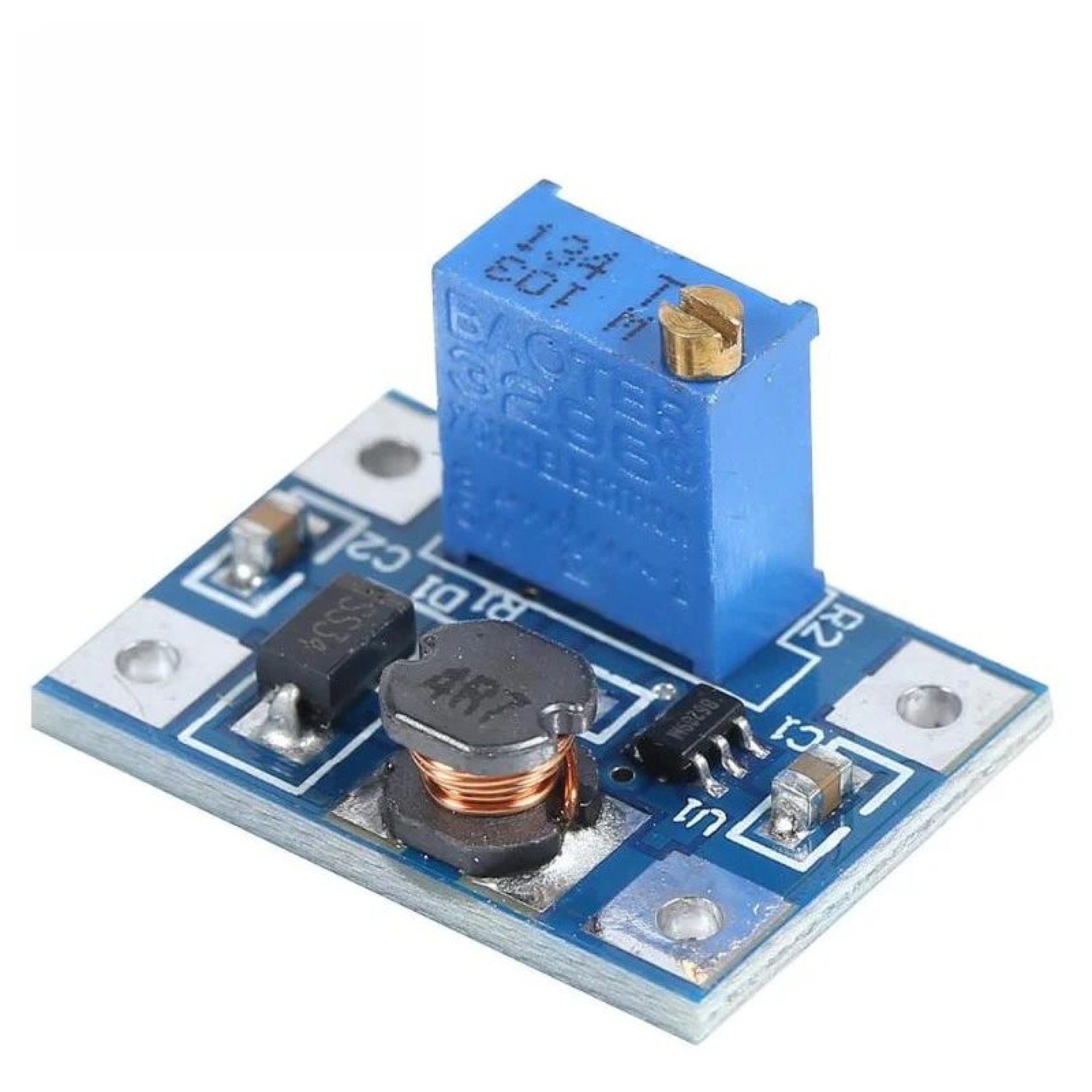

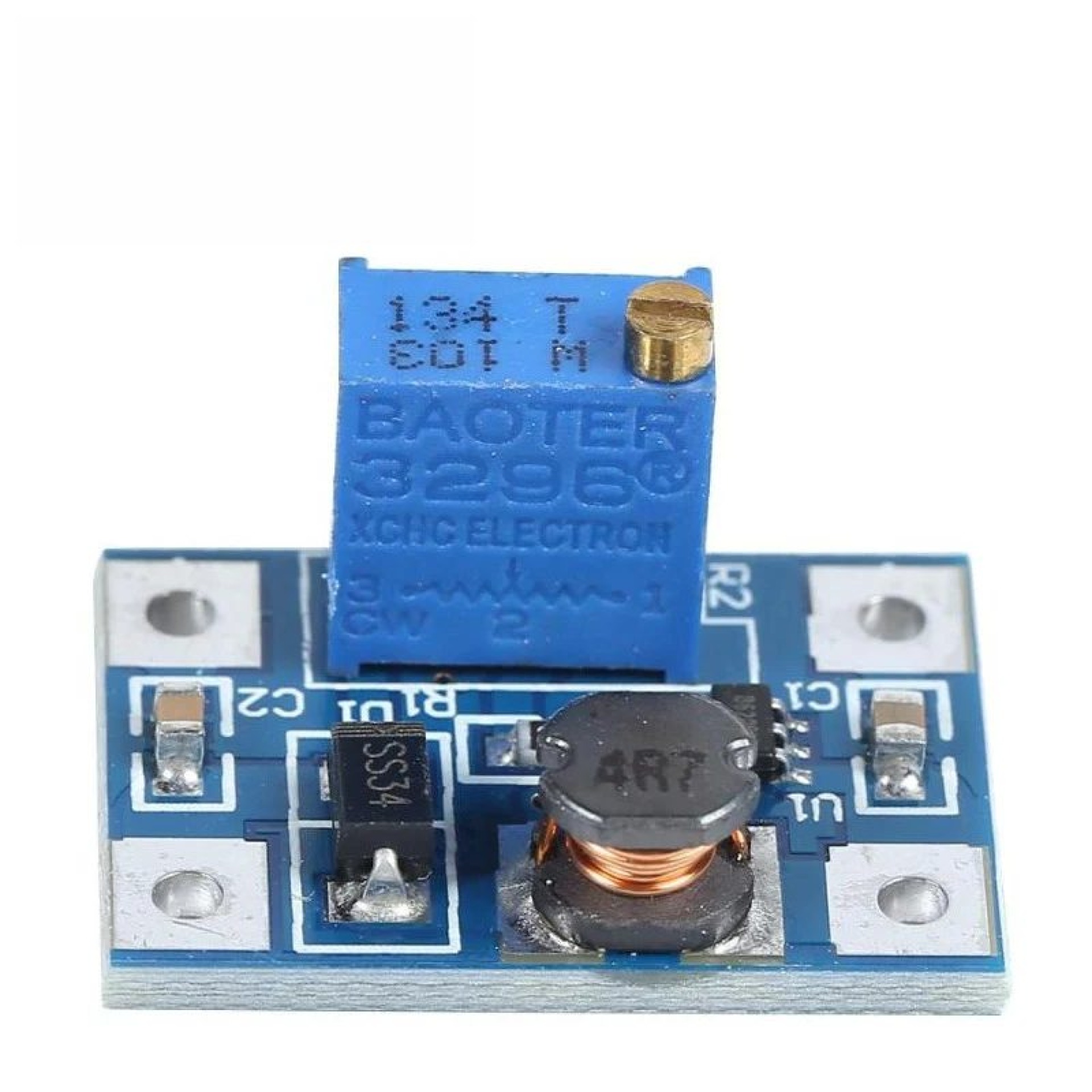

SX1308 DC To DC Step Up Boost Converter Module 2A

The SX1308 DC-DC Step Up Boost Converter Module 2A is a compact, high-efficiency voltage regulator designed to increase (boost) a lower DC voltage to a higher, adjustable output voltage. This versatile module is widely used in DIY electronics, embedded systems, battery-powered devices, and various power supply applications where stable and efficient voltage conversion is required.

Built around the reliable SX1308 chip, this boost converter module offers excellent performance with high efficiency up to 95%, ensuring minimal power loss during operation. It is ideal for engineers, hobbyists, and makers looking for a dependable and cost-effective solution for voltage boosting needs.

🔧 Key Features

• Wide Input Voltage Range: Accepts input voltage from 2V to 24V, making it suitable for various power sources such as lithium batteries, USB power, and DC adapters.

• Adjustable Output Voltage: Output voltage can be precisely adjusted from 2V up to 28V using the onboard potentiometer.

• High Efficiency: Up to 95% efficiency ensures energy-saving operation and reduced heat generation.

• 2A Maximum Output Current: Capable of delivering up to 2A current (recommended continuous current is around 1A–1.5A for optimal performance).

• Compact Design: Small size makes it perfect for space-constrained applications.

• Stable Performance: Provides consistent and reliable output voltage with minimal ripple.

⚙️ Applications

The SX1308 DC-DC Step Up Boost Converter Module 2A is widely used in a variety of applications, including:

• Battery-powered devices requiring higher voltage output

• DIY electronics projects and prototyping

• Arduino, Raspberry Pi, and microcontroller power supply

• Portable power banks and charging circuits

• LED lighting systems

• Solar power systems

• Automotive electronics

Whether you are stepping up a 3.7V lithium battery to 5V USB output or boosting 5V to 12V for specific devices, this module provides a simple and efficient solution.

🔌 Easy to Use

Using the SX1308 module is straightforward. Simply connect the input voltage source to the input terminals and adjust the onboard potentiometer to set your desired output voltage. A multimeter is recommended during adjustment to ensure accuracy. The module is designed with clear input and output labeling for easy installation.

📏 Specifications

• Chipset: SX1308

• Input Voltage: 2V – 24V

• Output Voltage: 2V – 28V (adjustable)

• Maximum Output Current: 2A

• Conversion Efficiency: Up to 95%

• Switching Frequency: 1.2MHz

• Size: Compact and lightweight

💡 Why Choose This Module?

The SX1308 DC-DC Step Up Boost Converter Module 2A stands out due to its combination of efficiency, flexibility, and affordability. It is an essential component for anyone working with electronics who needs reliable voltage conversion without adding complexity or cost.

Its small footprint, ease of use, and wide compatibility make it a must-have in any electronics toolkit. Whether you're a beginner or an experienced engineer, this boost converter module delivers consistent results for your power management needs.
