Key Features:

• Dual Material Compatibility: Measures coatings on ferrous (iron-based) and non-ferrous (non-magnetic) metals.​bcscalibration.ie+5armotec.ps+5YouTube+5

• High Accuracy: Provides precise measurements with an accuracy of ±(3%H + 1)µm.​TME+6Cool Tools HVAC-R+6bcscalibration.ie+6

• Wide Measurement Range: Capable of measuring coating thickness from 0 to 1250µm.​Cool Tools HVAC-R+5TME+5armotec.ps+5

• High Resolution: Offers a resolution of 0.1µm for readings between 0–99.9µm and 1µm for readings between 100–1250µm.​Amazon+4bcscalibration.ie+4Unitek Technologies+4

• Measurement Modes: Supports single point, continuous, and average measurements, with options to display maximum, minimum, or average values.​bcscalibration.ie+3Amazon+3Unitek Technologies+3

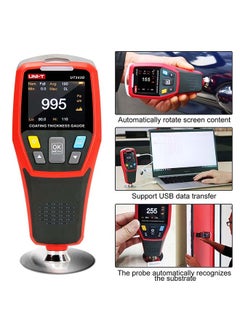

• User-Friendly Display: Features a 2.0-inch TFT LCD screen with 320 x 240 pixels, auto-rotatable for convenience.​Cool Tools HVAC-R+4meters.uni-trend.com+4bcscalibration.ie+4

• Quick Test Mode: Allows users to set a desired thickness range, with audio and LED alarms to indicate whether the coating falls within the preset limits.​meters.uni-trend.com+1armotec.ps+1

• Data Storage: Capable of storing up to 500 measurement records for later analysis.​armotec.ps+1meters.uni-trend.com+1

• PC Connectivity: Includes USB communication for data transfer and analysis using the provided PC software.​bcscalibration.ie+4meters.uni-trend.com+4armotec.ps+4

• Additional Features: Auto power-off function, low battery indication, and unit conversion capabilities.​Cool Tools HVAC-R+1meters.uni-trend.com+1

📊 Specifications:

📦 What's Included:

• 1 x UT343D Coating Thickness Gauge

• PC Software & USB Cable

• User Manual

• 12-Month Warranty

🛠️ Ideal Applications:

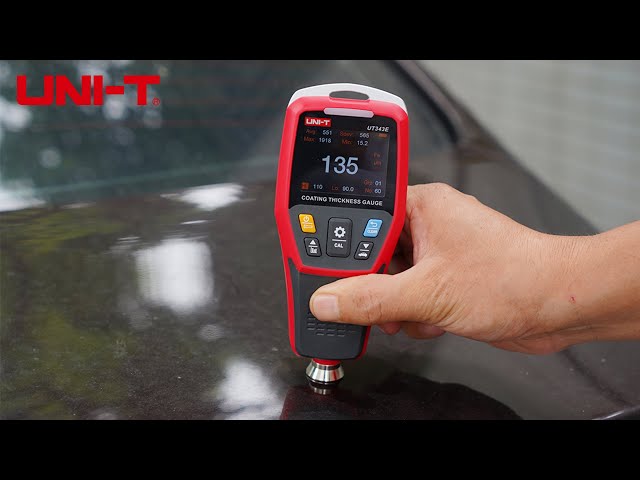

• Automotive Industry: Assessing paint thickness for quality control and detecting repainted areas.​

• Manufacturing: Ensuring consistent coating thickness in production processes.​

• Quality Control: Verifying coating specifications and compliance with industry standards.​

• Research & Development: Conducting material studies and experiments involving coated surfaces.​

💡 Why Choose the UNI-T UT343D?

The UT343D combines advanced measurement capabilities with user-friendly features, making it an essential tool for professionals requiring accurate and reliable coating thickness measurements. Its dual-material compatibility, high resolution, and data analysis options ensure that you can perform thorough assessments with confidence.
