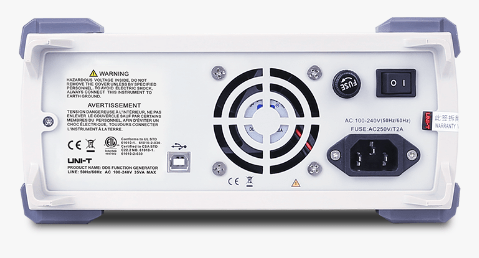

UNI-T UTG1010A – modern generator 10MHz with USB connection

Key Features:

• Output Frequency: Up to 10 MHz

• Sampling Rate: 125 MSa/s

• Vertical Resolution: 14 bits

• Frequency Resolution: 1 μHz

• Waveform Types: Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and Arbitrary

• Modulation Modes: AM, FM, PM, ASK, FSK, PSK, PWM

• Sweep Function: Supports linear and logarithmic sweeps

• Arbitrary Waveform Memory: 16 sets

• Display: 4.3-inch TFT LCD (480×272 resolution)

• Output Amplitude Range: 1 mVpp to 10 Vpp (50 Ω); 2 mVpp to 20 Vpp (High Z)

• Output Impedance: 50 Ω

• Interface: USB Device for PC connectivity

• Power Supply: 100–240 V AC, 50/60 Hz

• Dimensions: 265 mm × 110 mm × 320 mm

• Weight: Approximately 3.1 kg

🛠️ Applications:

• Electronics Design & Testing: Generate precise signals for circuit analysis and debugging.

• Educational Laboratories: Ideal for teaching waveform generation and signal modulation concepts.

• Research & Development: Develop and test new electronic components and systems.

• Maintenance & Repair: Diagnose and troubleshoot electronic equipment effectively.​

📦 Package Includes:

• UNI-T UTG1010A Function/Arbitrary Waveform Generator

• USB Cable

• Power Cord

• BNC-BNC Cable

• PC Software CD

• User Manual
