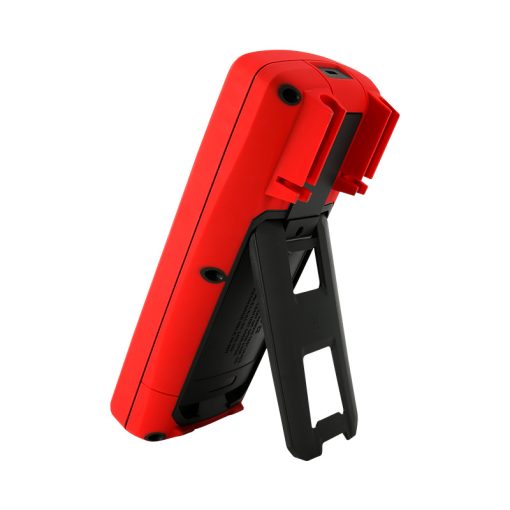

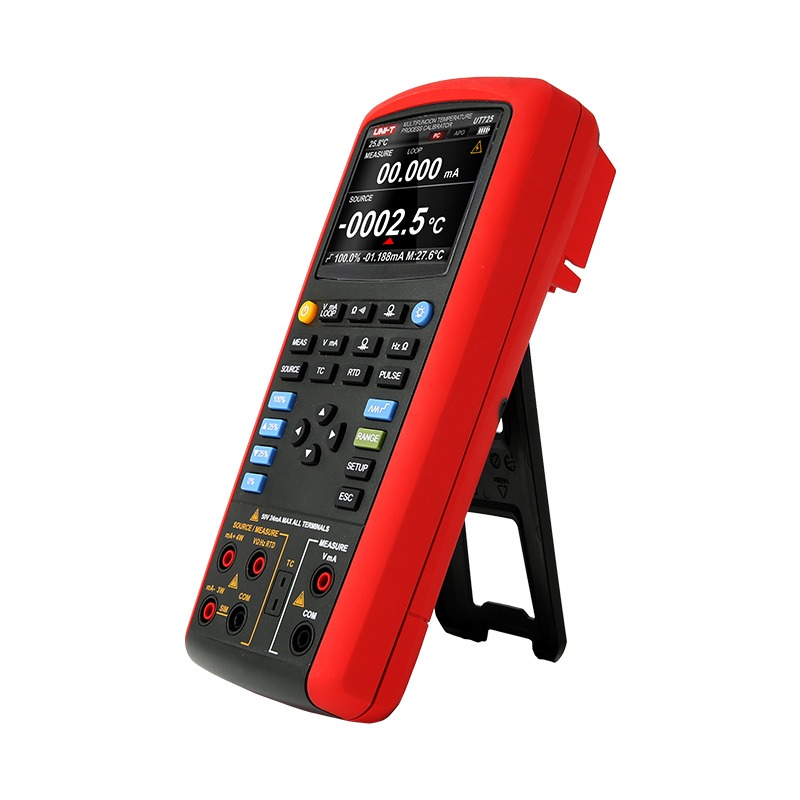

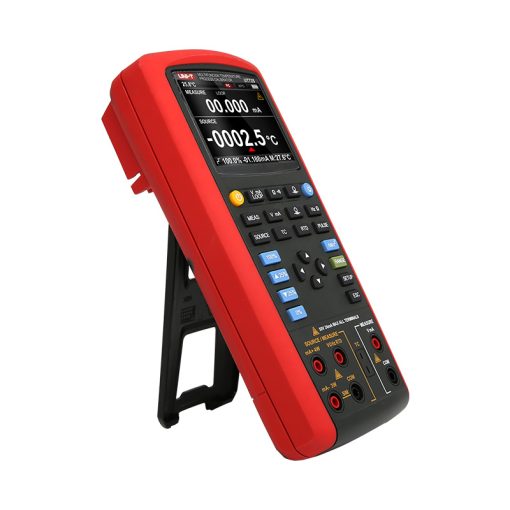

UNI-T UT725 Multifunction Process Calibrator

🌟 Key Features:

• ✅ Voltage Measurement and Sourcing: Up to ±30V DC

• ✅ Current Measurement and Sourcing: 0–24mA

• ✅ Loop Current Testing (4–20mA) – for process control verification

• ✅ Resistance Measurement and Simulation: Up to 3kΩ

• ✅ Frequency Measurement and Sourcing: Up to 10kHz

• ✅ RTD Types Supported: Pt100, Pt1000, Cu50, etc.

• ✅ Thermocouple Types Supported: K, J, T, E, R, S, B, N

• ✅ Simultaneous Source and Measure Mode – Test input/output devices in one setup

• ✅ 0.02% High Accuracy – Industrial-grade precision

• ✅ Large Backlit LCD Display – Easy to read in any lighting

• ✅ USB Interface – For PC communication and logging

• ✅ 24V Loop Power Supply Mode

🧰 Functions & Applications:

• 🔧 Source/Measure DC Voltage and Current

• 🔧 Simulate or Read RTD/Thermocouple Signals

• 🔧 Test Loop-powered Devices with 24V Output

• 🔧 Calibrate Transmitters, Controllers, and PLCs

• 🔧 Verify Input/Output of Process Instruments

• 🔧 Generate Frequency Signals for Flow Meters & Speed Sensors

🛡️ Built for Industrial Use:

• 📊 0.02% Accuracy for critical process calibration

• ⚡ Built-in Protection against overloads and miswiring

• 🔋 Rechargeable Lithium Battery – Long operation time in the field

• 🧱 Rugged Casing for harsh industrial environments

• 🌐 USB Communication – Connect to PC for configuration and report generation

📦 Package Includes:

• 1 × UNI-T UT725 Process Calibrator

• 1 × Test Lead Set

• 1 × Thermocouple Probe (Type K)

• 1 × USB Interface Cable

• 1 × PC Software CD / Link

• 1 × User Manual

• 1 × Protective Carrying Case

📊 Technical Specifications (Overview):

✅ Ideal For:

• Process Calibration & Testing

• Instrumentation & Control Technicians

• PLC and DCS System Maintenance

• Industrial Automation Troubleshooting

• Temperature, Pressure, and Flow System Calibration

🔍 Why Choose the UNI-T UT725?

With its precision, versatility, and industrial-grade durability, the UT725 is your go-to calibrator for on-site and lab-based testing. Whether you’re validating transmitters, simulating RTDs, or diagnosing process faults, the UT725 empowers professionals with confidence and accuracy.
