Key Features & Specifications

1. Multi-Channel Signal Analysis

• Bandwidth: 100 MHz

• Channels: 4 analog + 1 external trigger

• Real-Time Sampling Rate: 1 GSa/s (single channel), 500 MSa/s (dual-channel), 250 MSa/s (4-channel)

• Memory Depth: Up to 10 Mpts (expandable)

• Vertical Resolution: 8-bit

• Rise Time: ≤3.5 ns

2. Large, User-Friendly Display

• 7-inch TFT LCD (800×480 resolution) with adjustable brightness

• Split-screen & Zoom functions for multi-signal comparison

• Intuitive UI with customizable shortcuts

3. Advanced Triggering & Decoding

• Multiple Trigger Modes: Edge, Pulse, Video, Slope, Window, Runt, Interval

• Serial Protocol Decoding (I2C, SPI, UART, CAN) – Optional in some models

• External Trigger Input for synchronization

4. Powerful Measurement & Analysis

• Auto-Measurements: 32+ parameters (Vpp, Freq, Duty Cycle, Rise/Fall Time, etc.)

• FFT (Fast Fourier Transform) for frequency domain analysis

• Cursor & Track Measurements for precise data inspection

• Math Functions (+, -, ×, ÷, FFT, etc.)

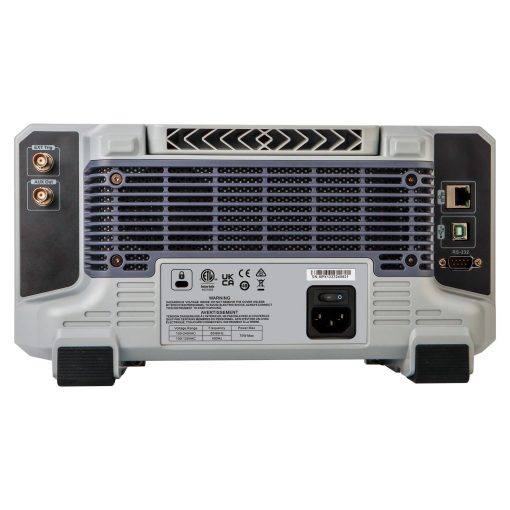

5. Connectivity & Storage

• USB Host & Device Ports (Save screenshots, waveforms, and settings)

• LAN & Optional WiFi for remote control & data sharing

• Supports BMP, PNG, CSV, and REF file formats

6. Additional Features

• Pass/Fail Mask Testing for automated quality checks

• Built-in Help System & Multi-language Support

• Compact & Portable Design (Lab or field use)

Applications

✔ Embedded system debugging (MCU, FPGA) ✔ Power supply & motor drive analysis ✔ Automotive electronics & CAN bus testing ✔ Education, R&D, and industrial maintenance

Package Includes

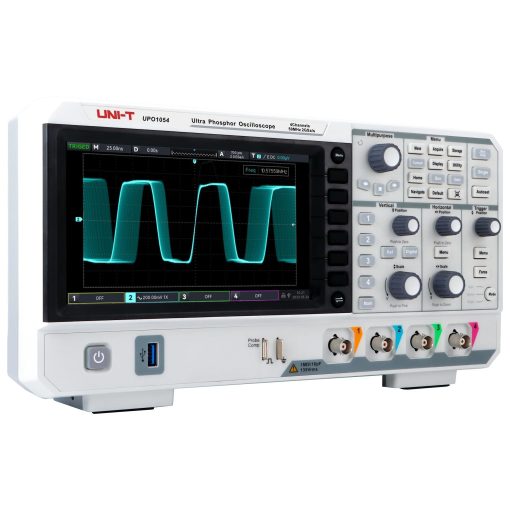

• UNI-T UPO1054 Oscilloscope

• Passive Probes (4×, 200 MHz)

• Power Cable & USB Cable

• User Manual & Quick Guide

Why Choose the UPO1054?

✅ 4-channel input – Ideal for multi-signal systems ✅ Deep memory (10 Mpts) – Capture long-duration waveforms ✅ Advanced triggering & decoding – Analyze complex signals ✅ LAN/WiFi connectivity – Remote monitoring & control

Perfect for engineers who need versatility and precision in a compact, affordable oscilloscope!
