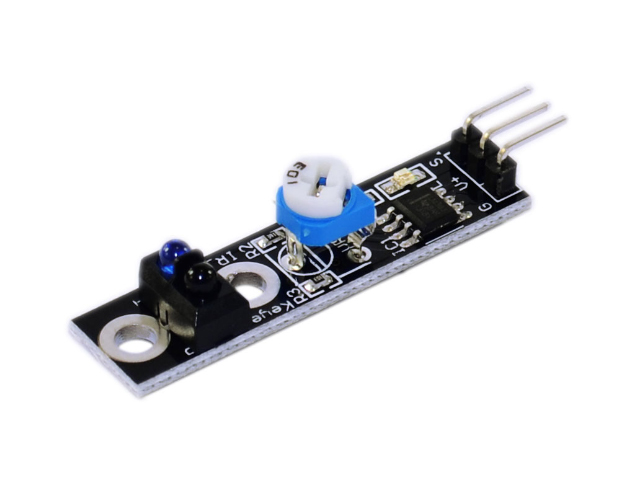

TCRT5000 Infrared Reflective Switch Line Tracking Sensor
Electra Store
SKU: MD-22867
35.00 EGP
In Stock
1
Categories: Infrared Sensors
Description
_x000D_
_x000D_
_x000D_
-
- _x000D_
- Using infrared reflective sensor TCRT5000
-
- The Detection Distance: 1mm ~ 8mm apply focal distance of 2.5mm
-
- The comparator output signal clean, good waveform, driving ability, more than 15mA
-
- With a multi-turn precision potentiometer adjustable sensitivity adjustment
-
- The Working Voltage: 3.3V-5V
-
- The Output Format: digital switching outputs (0 and 1)
-
- A fixed bolt holes for easy installation
-
- A small PCB board size: 3.2cm x 1.4cm
-
- Using a wide voltage LM393 comparator
1. Meter pulse data sampling_x000D_2. Fax paper shredders detection_x000D_3. Obstacle detection_x000D_4. Black and white line detection
_x000D_
package included:
_x000D_
-
- _x000D_
- 1 x TCRT5000 Infrared Reflective Switch Line Tracking Sensor
