TB6560 CNC 3-Axis Driver 3.5A
Electra Store
SKU: MD-22606
825.00 EGP
In Stock
1
Categories: Motor Drivers
Description
TB6560 3A Three Axis Carving Machine Driver Stepper Motor Driver
Features:

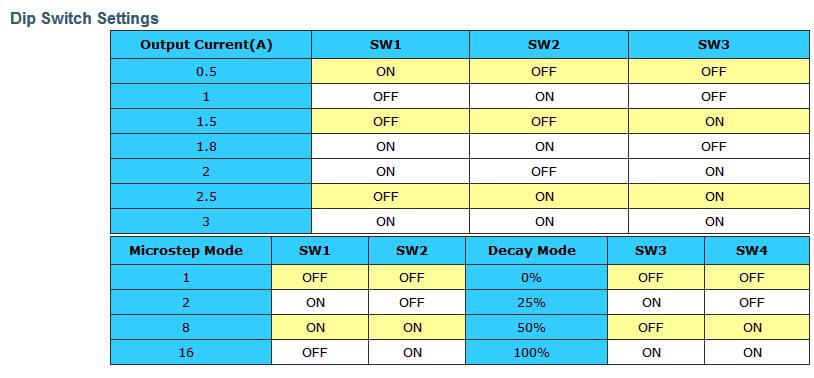

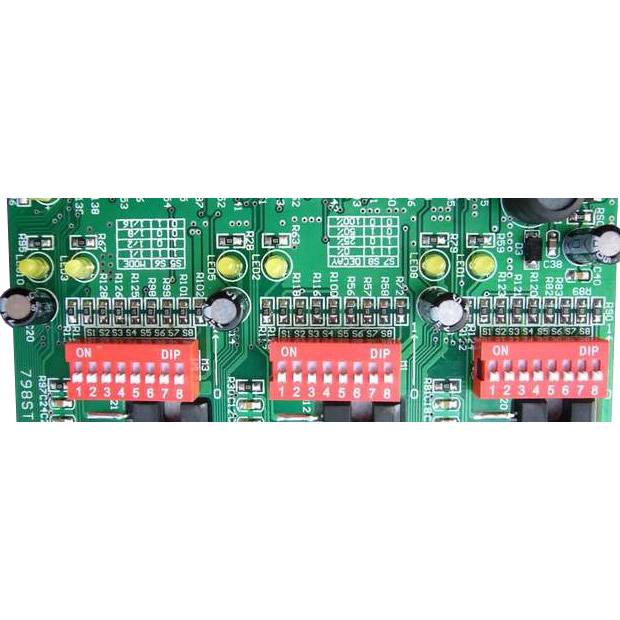

- X Y Z three axis integrated driver, each axis can reach 3.0A driving current - Widely used for carving machine, TSP and digital control CNC device - Direct PC parallel signal, can be used for CAM software control - Control board interface is convenient to use, normal CAM software to control - Manual board interface is convenient to use, has 5 channels limit input - Integrated control driving part and isolation module, to guarantee PC mainboard operates safely - 3 Axis current, micro step, reduce single adjustable - Anodic aluminum alloy shell is convenient safe and good heat radiation effectElectric parameters:
- Input voltage: 12-24V DC power supply, current capacity recommends>15A - Output current: 0.5-3.0A, 6 grade adjustable - Impulse response frequency: 200KHZ - Insulation resistance: >500mohm - Weight: 500gSignal interface function:

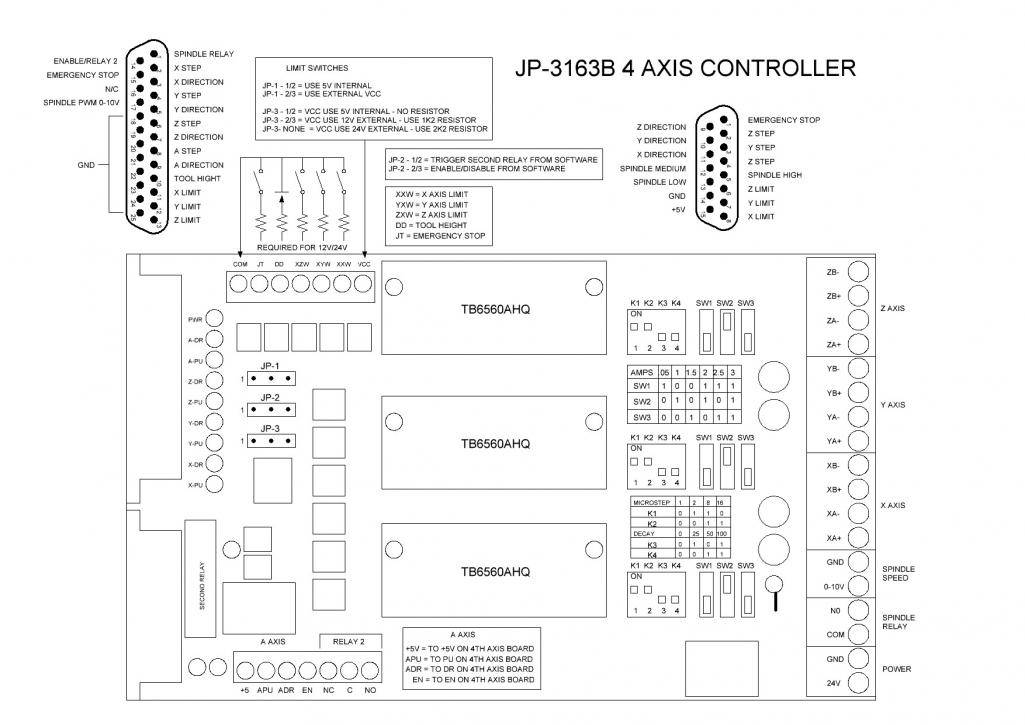

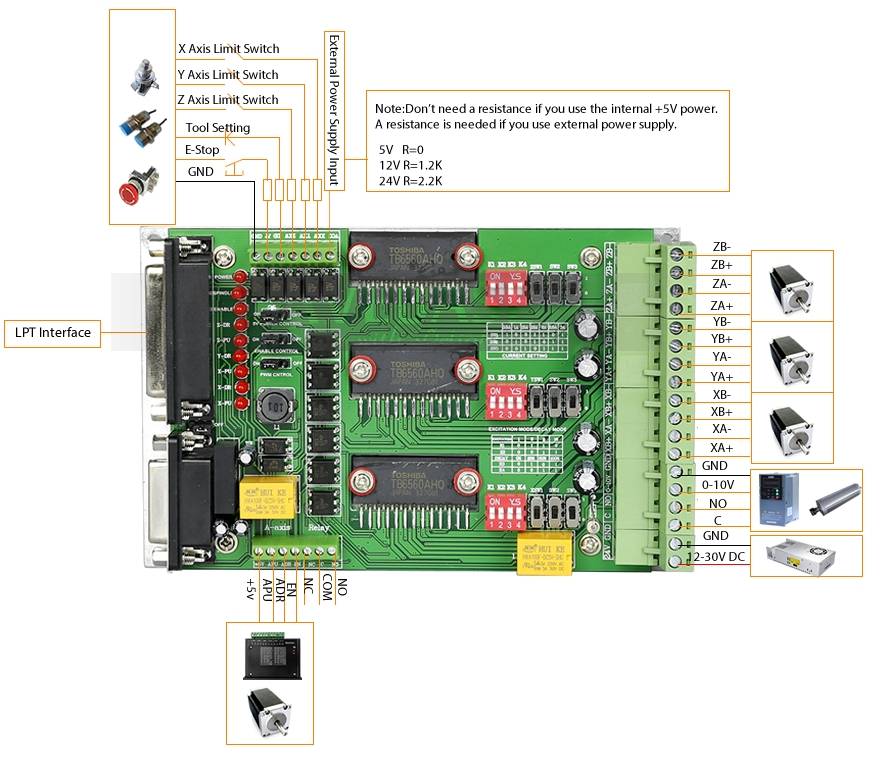

- DB2S parallel interface is impulse, direction, limit, relay control interface, built in 5V power, external driving signal low level is available - DB15 interface is manual control board signal interface - Power supply: input 12-24V DC, has anti-reverse connection function - Two channel relay control interface, convenient to control main axis and cooling system - Can expand 4 axis control outputPackage Included:
- 1 X TB6560 CNC 3-Axis Driver 3.5A
