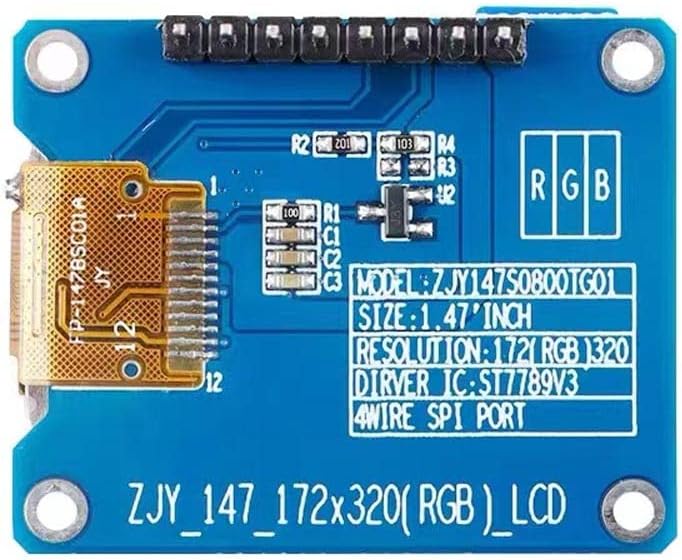

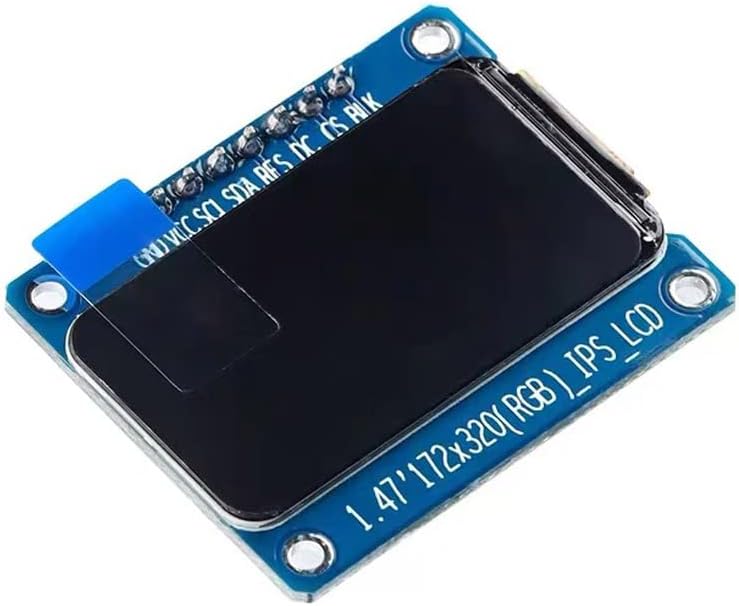

1.47 inch 172x320 SPI Full Color TFT HD IPS Screen LCD LED Display Module

Key Features:

• Display Type: TFT LCD with HD IPS technology

• Screen Size: 1.47 inch

• Resolution: 172(H) RGB × 320(V) pixels (high clarity for text & graphics)

• Interface: SPI interface for easy integration

• Display Color: Full color, vibrant visuals

• Viewing Direction: Full view, adjustable display orientation

• Logic Voltage: 3.3V (compatible with most microcontrollers)

• Brightness: 600 cd/m² (typical), excellent visibility even in bright conditions

• Backlight: 3 white LEDs (parallel)

• Display Area: 17.3892(H) × 32.352(V) mm

• Panel Size: 19.39(H) × 36.28(V) × 1.46(D) mm

• Pixel Pitch: 0.0337(H) × 0.1011(V) mm

• Operating Temperature: -20°C to +70°C, reliable in different environments

Applications:

• Smart wearable devices (watches, bands, fitness trackers)

• IoT and smart home products

• Portable electronic gadgets

• Robotics and automation systems

• User interface displays for Arduino, ESP32, STM32, Raspberry Pi

• Educational and prototyping projects

Why Choose This TFT IPS Display?

• High Definition IPS Screen: Crisp text, sharp images, and vivid colors with excellent contrast.

• Full Viewing Angle: Ensures readability from any direction.

• Compact Size: Small yet powerful, perfect for portable and handheld devices.

• High Brightness (600 cd/m²): Clear visibility even under strong light conditions.

• Easy to Interface: SPI connection makes integration quick and simple.

The 1.47 Inch 172x320 TFT HD IPS LCD Display Module is the ideal choice for developers, students, and professionals who need a high-quality, energy-efficient display for their electronic projects.
