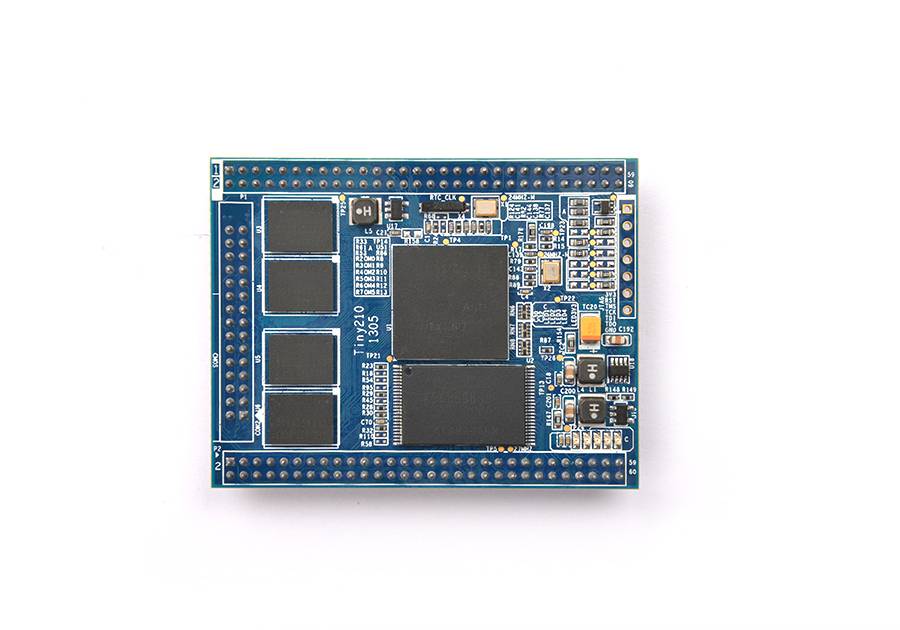

Tiny210 SDK is A complete high performance Single Board Computer to get started immediately with high end computing in a small package.

Specification:

CPU Module

• Dimension: 64 x 50 mm
• CPU: 1GHz Samsung S5PV210 with Powervar SGX540 graphics engine
• RAM: 1G, 32-bit Bus
• Flash: up to 1GB NAND Flash
• Serial, SPI, I2C, I2S, SD/MMC, USB, LCD, Camera Interface
• Analog Input and Output
• User Outputs: 4x LEDs
• Expansion headers (2.0 mm)
• Power: 2-6V
• OS Support
  • Windows CE 6
  • Linux
  • Android

 SDK-Board

• Dimension: 180 x 130 mm
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: DB9 connector (RS232), total: 4x serial port connectors)
• USB: USB-A Host 1.1, mini-USB Slave/OTG 2.0
• mini PCIe
• SIM Card
• Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
• Audio Input: 3.5mm jack Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery
• Beeper: PWM buzzer
• Camera: 20 pin (2.0 mm) Camera interface
• TV Output: AV Out
• TV Input: AV In
• LCD: 40 pin (2.0 mm), 40 pin FFC, 40 pin FFC and 45 pin FFC connector.
• User Inputs: 8x buttons and 1x A/D pot
• Expansion headers (2.0 mm)
• Power: regulated 5V

Features

• CPU: Samsung S5PV210, based on CortexTM-A8, 1GHz, Integrated Powervar SGX540 graphic engine, Elegant 2D/3D graphic acceleration, up to 1080p@30fps hard decoded video playing, support MPEG4, H.263, H.264 etc., up to 1080p@30fps hard decoded (Mpeg-2/VC1) video input.
• DDR2 RAM:1G, 32bit data bus, single channels, 200 M Hz
• FLASH: SLC NAND Flash: 1GB
• LED: LED (Green),1 x Power LED (Red)
• J-TAG:1 x J-TAG
• Power:4.7V to 5.6V (support sleep mode)
• PCB Dimension: Eight layered board, 64 x 50 x 11(mm)

Package Included:

• 1 X Tiny210 SDK set (1G Flash) 7"LCD resistive LCD (S70) Standard Accessories
