🔑 Key Features

✔ 8A Current Rating – Handles moderate power loads reliably ✔ 3300μF / 50V Capacitor – Better ripple filtering for higher voltage inputs ✔ Non-Regulated DC Output – Pure rectified voltage (≈1.4 × AC input) ✔ Sturdy PCB Design – Reinforced traces for stable 8A operation ✔ Screw Terminal Connections – Easy and secure wiring ✔ Compact & Efficient – Fits in tight spaces for DIY projects

📊 Technical Specifications

🛠 Applications

• Audio Amplifiers (Class AB, Guitar Amps)

• Motor Drivers (DC, Stepper, Small Actuators)

• LED Lighting Systems (High-Voltage Strips)

• DIY Lab Power Supplies (Unregulated Stage)

• Industrial Control Circuits

🔌 Wiring Guide

Input (AC Side):

• AC ~ → Connect to transformer secondary (~12V-36V AC)

Output (DC Side):

• + (Positive) → Smoothed DC output

• - (Negative/GND) → Common ground

Optional Upgrades:

• Add a fuse (8A) for overcurrent protection

• Use a heatsink on the rectifier for prolonged high-current use

• Combine with a regulator (LM317, Buck Converter) for stable voltage

⚡ Why Choose This Board?

✅ Higher voltage support (50V capacitor) for 24V+ applications ✅ Better ripple filtering than smaller capacitors ✅ Ready-to-use – No soldering required (pre-assembled) ✅ Cost-effective for medium-power projects

📦 Package Includes

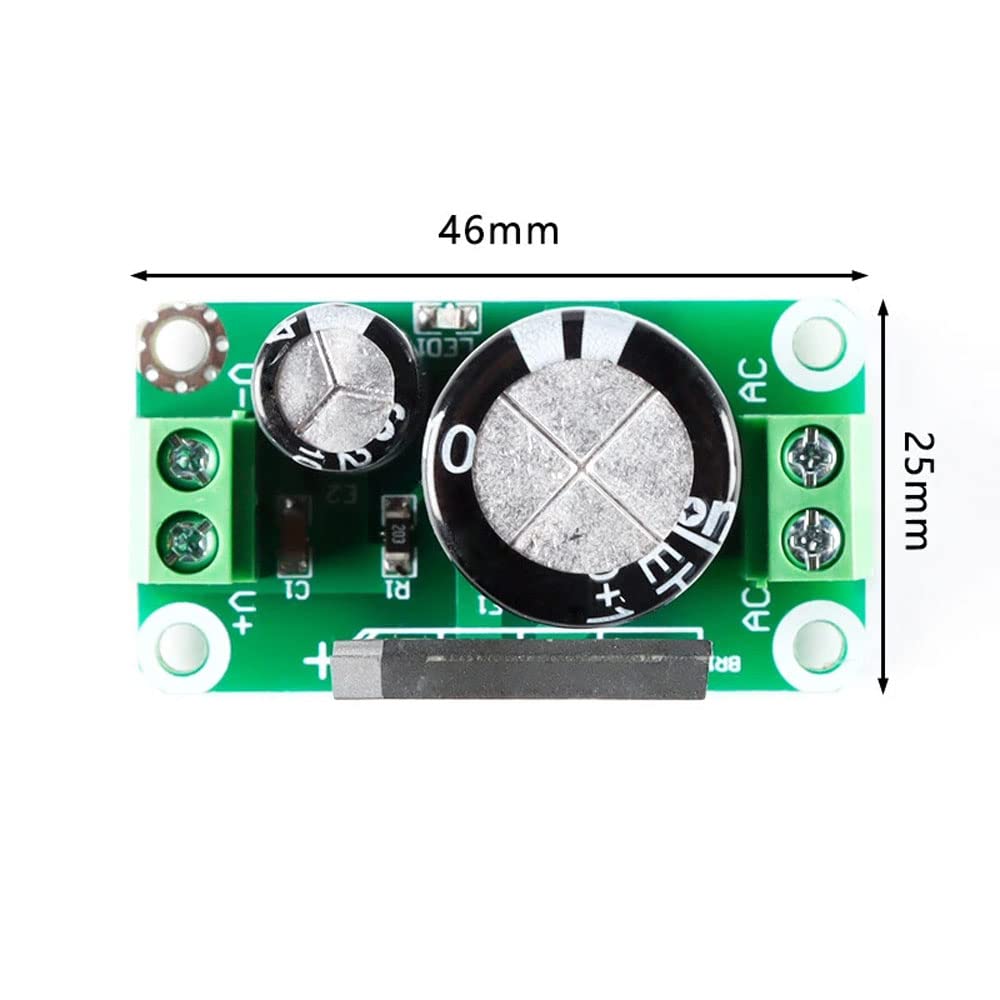

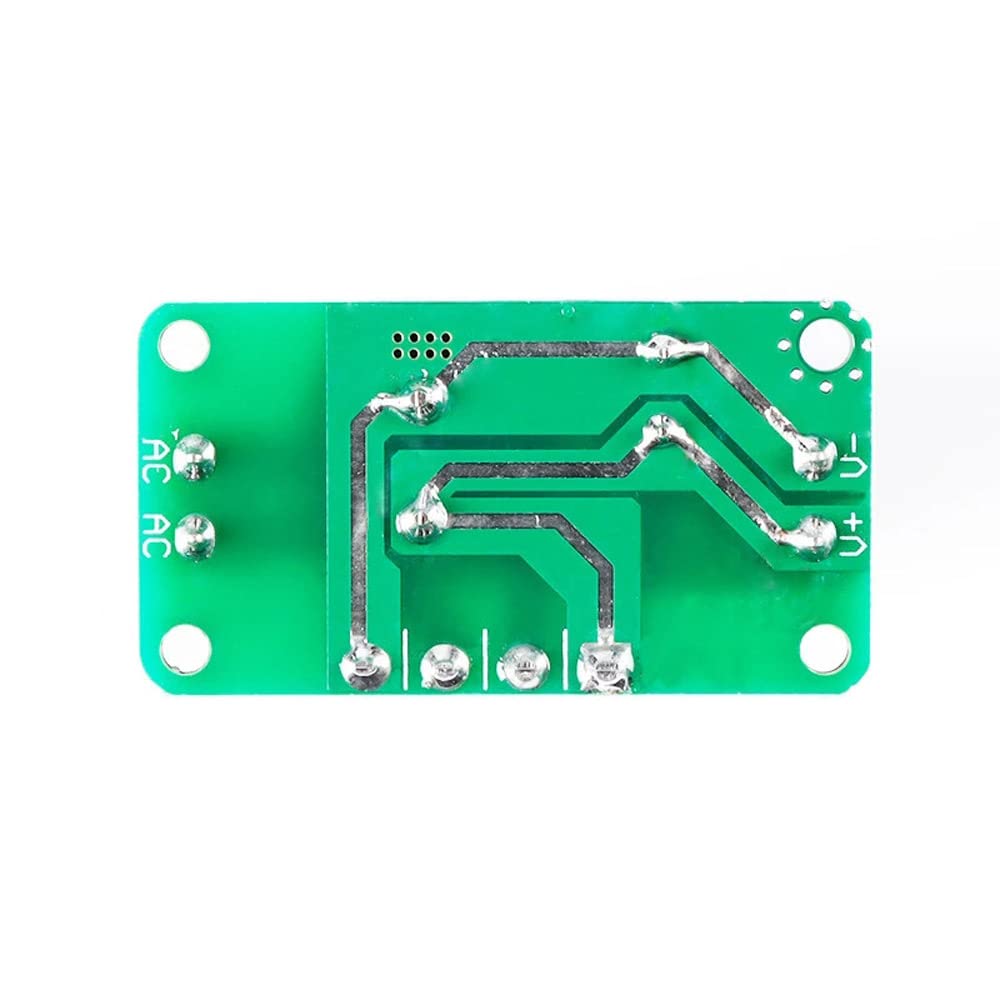

• 1 × 3300μF/50V Rectifier Filter Board (8A rated)

• (Pre-soldered bridge rectifier & capacitor)

⚠️ Safety Notes

• Do not exceed 50V DC (capacitor limit)

• Ensure proper cooling for high-current operation

• Check polarity – Incorrect wiring can damage components

• For 110V/220V AC input, use an isolation transformer
