Key Features:

✔ Continuous 360° Rotation – Modified for full rotation (not limited to 180°) ✔ Compact & Lightweight – Just 9g with dimensions of 22.2 x 11.8 x 31mm ✔ Decent Torque – 1.8 kg·cm (4.8V) to 2.2 kg·cm (6V) ✔ Adjustable Speed – 0.1s/60° (4.8V) to 0.08s/60° (6V) via PWM signal ✔ 3-Wire Control – Simple interface (VCC, GND, Signal) ✔ Wide Voltage Range – Operates from 3.5V to 6V DC

Technical Specifications:

• Motor Type: Modified analog servo (360° continuous)

• Operating Voltage: 3.5–6V DC (optimal at 4.8–5V)

• Stall Current: ~650mA (under load)

• Gear Material: Plastic/nylon

• Connector: JR-type (standard 3-pin, fits most receivers)

• Cable Length: ~25cm

How It Works:

Unlike standard 180° servos, this modified version rotates continuously based on PWM signal:

• 1.5ms pulse: Stop

• <1.5ms pulse: Rotate clockwise (speed varies with pulse width)

• >1.5ms pulse: Rotate counterclockwise (speed varies with pulse width)

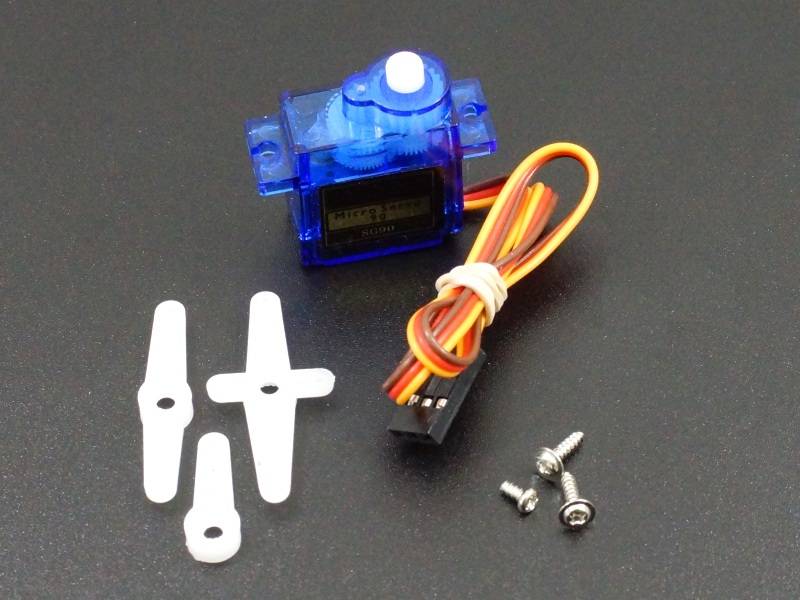

Package Includes:

• 1x SG90 360° servo motor

• 3x servo horns (cross, single arm, double arm)

• 4x mounting screws

Typical Applications:

• Robot wheel drives

• Conveyor belt systems

• Rotary dispensers

• Camera sliders

• DIY rotating displays

⚠ Note:

• Not for positional control (use standard 180° servo if needed)

• Avoid stalling for extended periods to prevent overheating

• For Arduino/RPi, power externally when using multiple servos
