RM-MVL voltage protector
Electra Store
SKU: RM-MVL
600.00 EGP
In Stock
1
Categories: Power Sources, voltage protector
Description
RM-MVL voltage protector
Technical data| Rated supply voltage | AC 220V |
| Operation voltage range | AC 80V~400V |
| Rated frequency | 50/60Hz |
| Overvoltage(>U)setting range | 220~280V |
| Undervoltage(<U) setting range | 140~210V |
| Hysteresis | 2% |
| >U and <U trip delay | 0.5s |
| Reset/start delay | 5s~600s |
| Voltage measurement accuracy | β€1%(over the whole range) |
| Rated insulation voltage | 400V |
| Output contact | 1NO |
| Electrical life | 105 |
| Mechanical life | 106 |
| Protection degree | IP20 |
| Pollution degree | 3 |
| Altitude | β€2000m |
| Operating temperature | -20β~55β |
| Humidity | β€50% at 40βοΌwithout condensationοΌ |
| Storage temperature | -30β~70β |
| βDefault setting | Β | Β | Β |
| Technical parameter | Setting range | Step | Factory setting |
| Overvoltage trip value | 220V~280V | 1V | 270V |
| Undervoltage trip value | 140V~210V | 1V | 170V |
| Reset/start delay | 5s~600s | 1s | 5s |
| Current specification | 15A | 25A | 32A | 50A | 63A |
| Rated operating current(ln,A) | 15 | 25 | 32 | 50 | 63 |
| Maximum operating current lmax ( A ,within 10min) | 25 | 30 | 40 | 60 | 80 |
| Max. power of load(kW) | 3.6 | 5.5 | 7 | 11 | 13.9 |

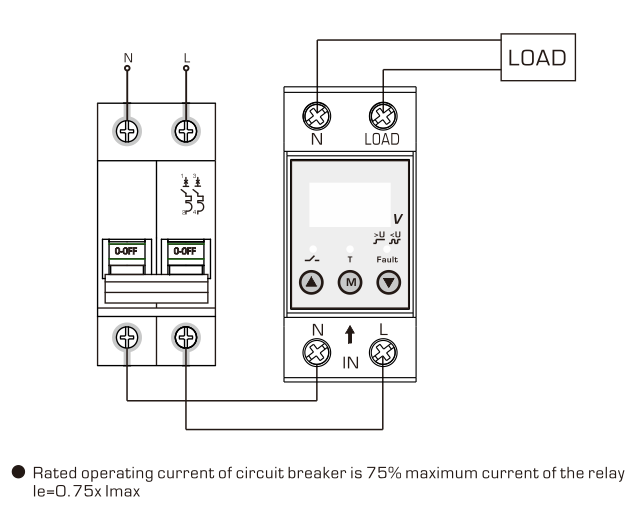

Function diagram

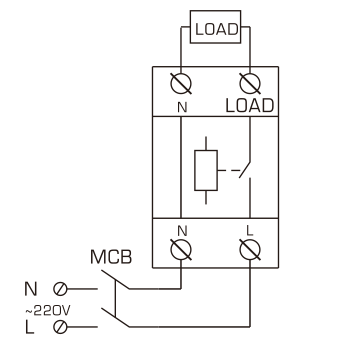

Symbol

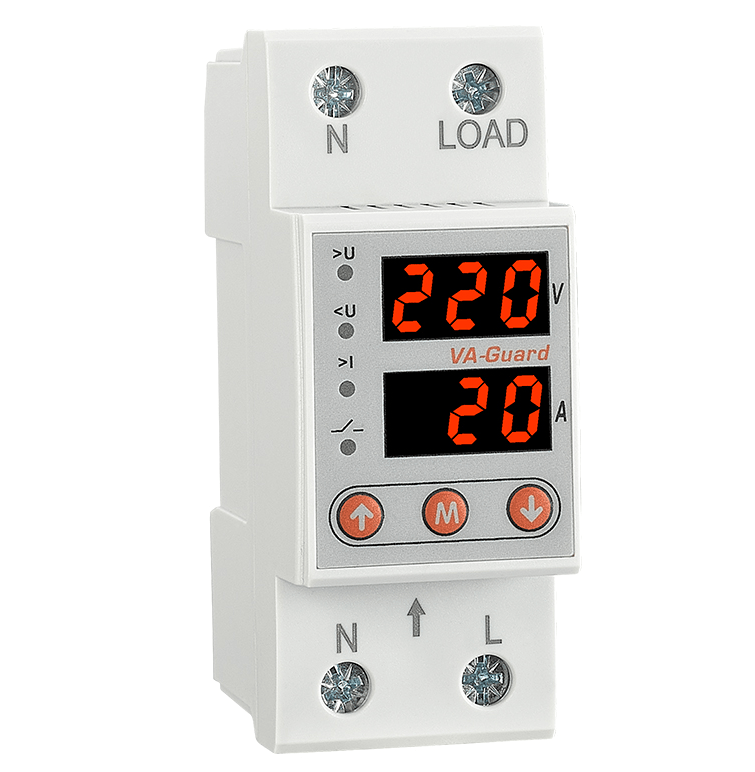

RD-MVA voltage and current protector
