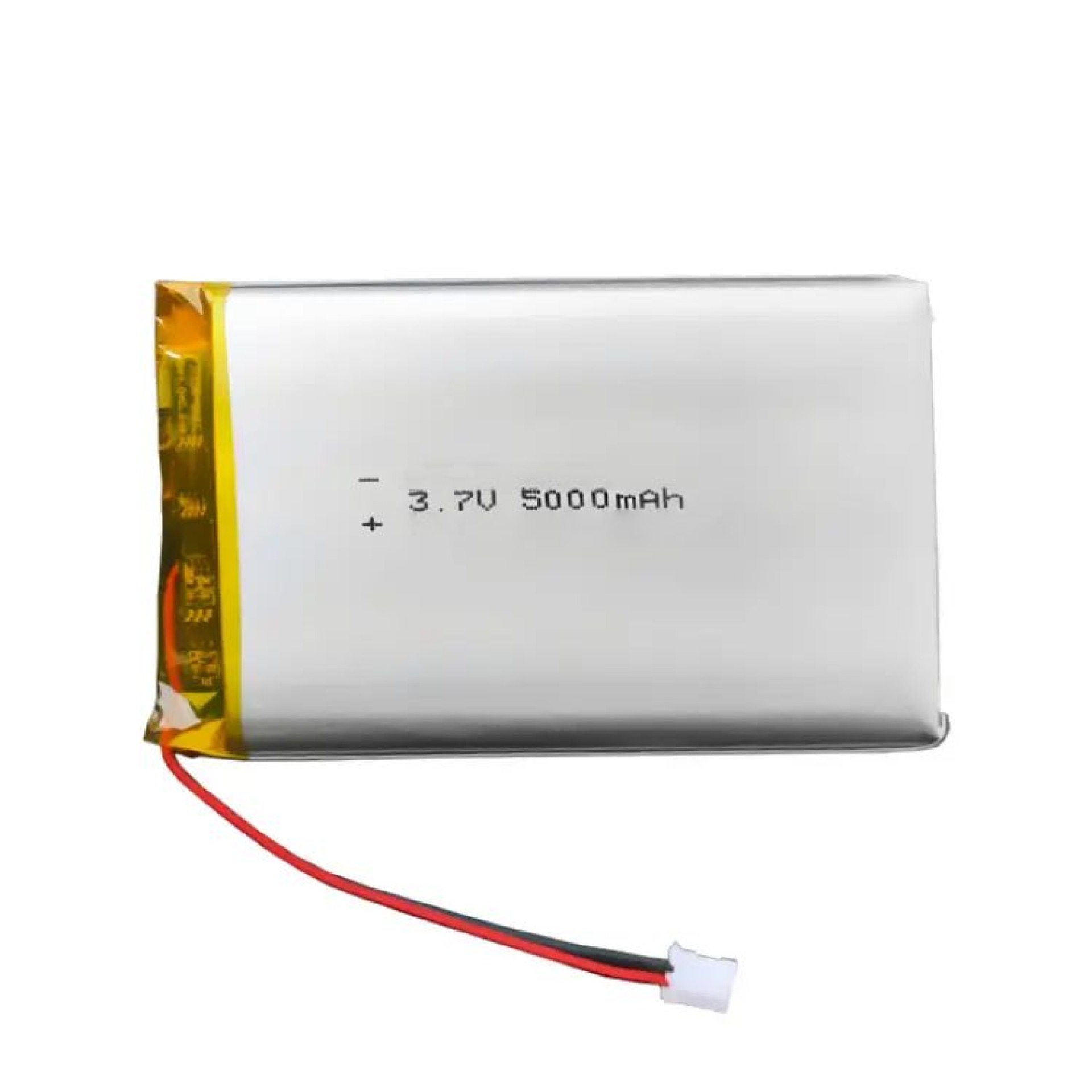

Polymer Li-Ion Battery 3.7V 5000mAh with Protection Board

Features:

• High Capacity: 5000mAh capacity for extended operating time in compatible portable electronic devices.

• Rechargeable Design: Lithium-polymer technology supports repeated charging and discharging when operated within the manufacturer's specified limits.

• Integrated Protection Board: Includes a protection circuit intended to help protect the battery against electrical conditions such as overcharging, over-discharging, and short circuits, depending on the board design.

• Compact Flat Profile: The slim pouch format supports installation in devices with limited internal space.

• Single-Cell Configuration: Designed for applications requiring a nominal 3.7V rechargeable lithium battery.

• Portable Power Source: Suitable for embedded electronics, handheld devices, and custom battery-powered projects.

• Easy Integration: Can be incorporated into a compatible device after confirming the wiring, connector, polarity, and available space.

Specifications:

• Battery Type: Lithium-ion Polymer (Li-Po)

• Cell Configuration: Single cell (1S)

• Nominal Voltage: 3.7V

• Rated Capacity: 5000mAh

• Energy Capacity: Approximately 18.5Wh, calculated from nominal voltage and rated capacity

• Protection Circuit: Included

• Dimensions: 65 × 55 × 9 mm (L × W × H), as provided

• Rechargeable: Yes

• Connector Type: Not specified; verify before ordering or installation

• Maximum Charging Voltage: Confirm with the supplier or battery datasheet before use

• Maximum Charging and Discharging Current: Not specified; depends on the battery cell and protection board

Applications:

• Portable electronic devices

• DIY electronics and embedded systems

• Battery-powered monitoring equipment

• Handheld instruments and compact control devices

• IoT devices and wireless sensor projects

• Portable LED lighting

• Custom electronic prototypes

• Low-power microcontroller projects

• Replacement batteries for compatible equipment
