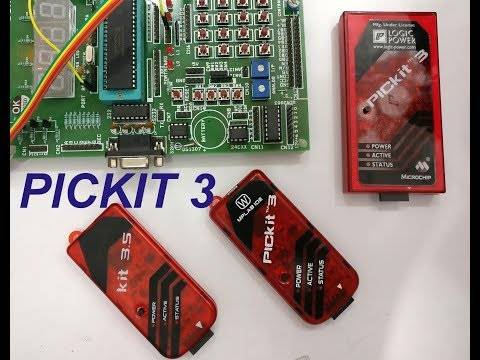

PICKIT 3 - Microchip ICSP Programmer/Debugger

357.50 EGP

In Stock

Quantity

Description

Features:

USB (Full speed 12 Mbits/s interface to host PC)
Real-time execution
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 2.0 volts (2.0v to 6.0v range)
Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go

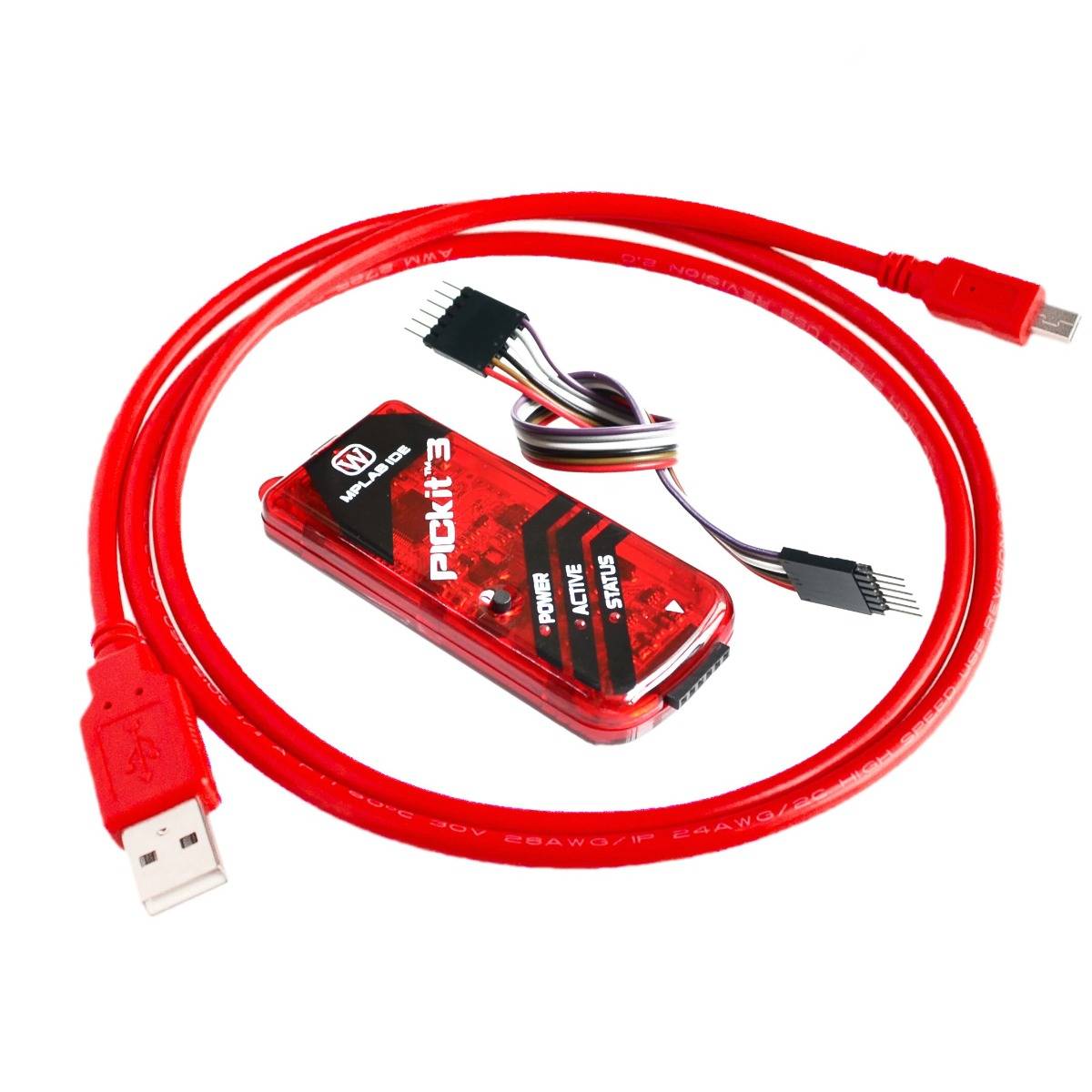

Pakcage Included: 1 PICKIT3

1 USB cable 1 6pin cable How to use:Download MPLAB^® X IDE (Integrated Development Environment) Program from this link https://www.microchip.com/mplab/mplab-x-ide and setup it Download suitable Compiler https://www.microchip.com/mplab/compilers

for pic 8bit ---> Download xc8 compiler
for pic 16 bit --> Download xc16 compiler and so on

Creat new standalone project and open new source file (creat main C file)Click on Production and set Configration bitsIf you use external Oscillator, make FOSC to HS To genrate .hex file, Click on production then Build main project then upload your code to Pickit 3 just click on down arrow and choose (Make and program main project) At first try an error massage will appear as follows:(Target device was not found, couldn't detect target Voltage VDD)To fix this error Click on Production --> set project configration --> CustomizeSelect Pickit 3 --> Choose Power from option Cat. and check on power target circuit from pickit 3
