Description
Features:
- High sensitivity suitable for illumination applications
- Low voltage suitable for embedded applications
- Standard SCCB interface compatible with I2C interface
- RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
- Supports VGA, CIF, and from a variety of sizes CIF to 40×30
- VarioPixel sub-sampling mode
- ISP has a compensation function to eliminate noise and dead pixels
- Support for image scaling
- Compensation for loss of optical lens
- 50/60Hz automatic detection
- Saturation automatically adjust (UV adjustment)
- Automatically adjust edge enhancement
- Automatically adjust the noise reduction
- Automatically affect the control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness.

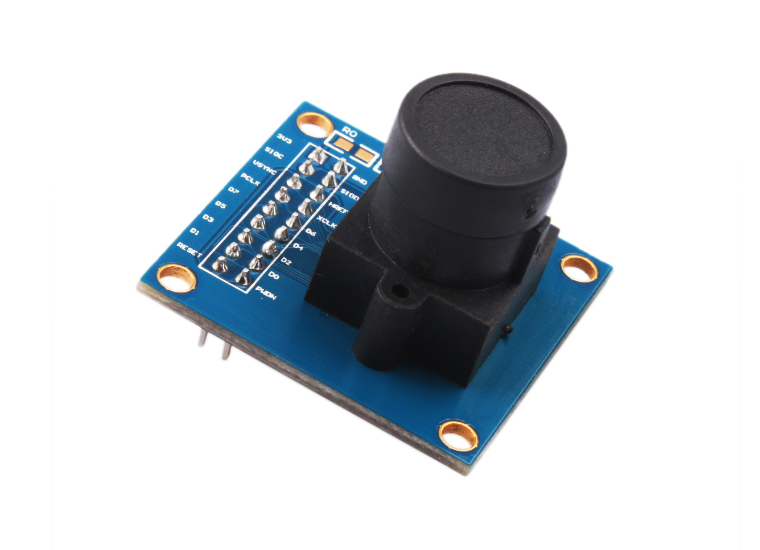

- 1 x OV7670 Camera China
